Forest Machinery – FPM TR 190 N

Purpose-built forestry engineering

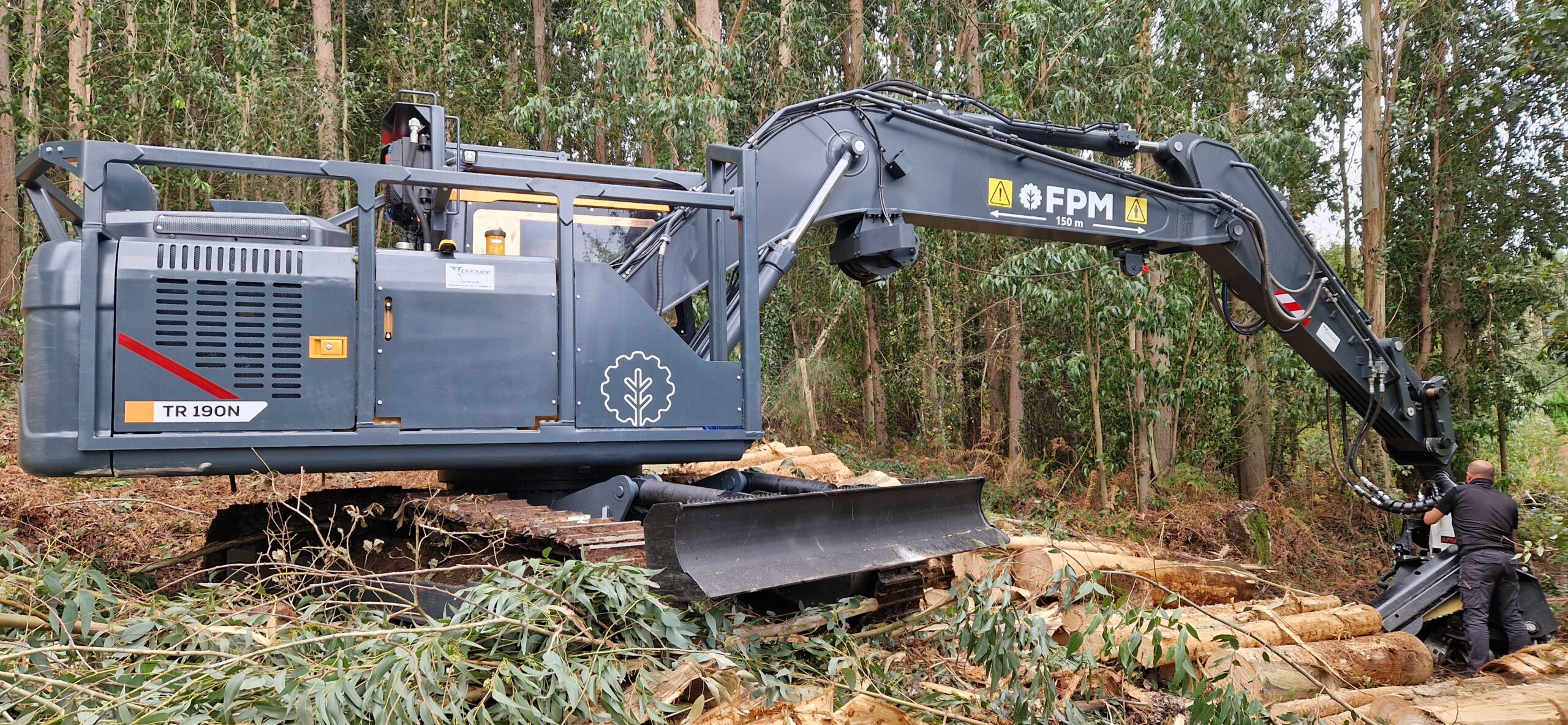

The TR 190N is engineered to dominate the harshest environments. True to the “Exclusive Forestry Design” seal, it features a ROPS/FOPS/OPS certified structure that ensures total operator protection. The Heavy Duty (HD) chassis has been reinforced to withstand extreme stress and prevent track de-tracking, while the comprehensive armor package protects vital components (travel motors, slew ring, boom and stick hoses, engine hoods) against impacts and debris. Its standard radius configuration features a generous counterweight, ensuring perfect stability when handling large-diameter timber at maximum reach.

Power and hydraulic performance
Under the hood, the Cummins B4.5 engine delivers 190 HP. The Load Sensing system provides a flow of 450 l/min, compatible with the vast majority of forestry attachments on the market. Thermal management is handled by an auxiliary hydraulic cooler, which guarantees optimal working temperatures even during intensive shifts with mulchers.

Versatility and comfort
Designed for long production days, the cabin offers an ergonomic environment with panoramic visibility, an air suspension seat, and intuitive controls. 360° LED lighting provides total clarity during night operations, while simplified access to maintenance points drastically reduces downtime.

Fleet Compatibility
The FPM TR 190N is a true mobile hydraulic powerhouse, capable of powering the most demanding attachments in the industry.

Hydraulic configurations:

• High-flow line (Hammer/Mulcher): 450 l/min.
• Low-flow line (Rotation): 60 l/min.
• Optional: Auxiliary electrical lines based on the attachment.

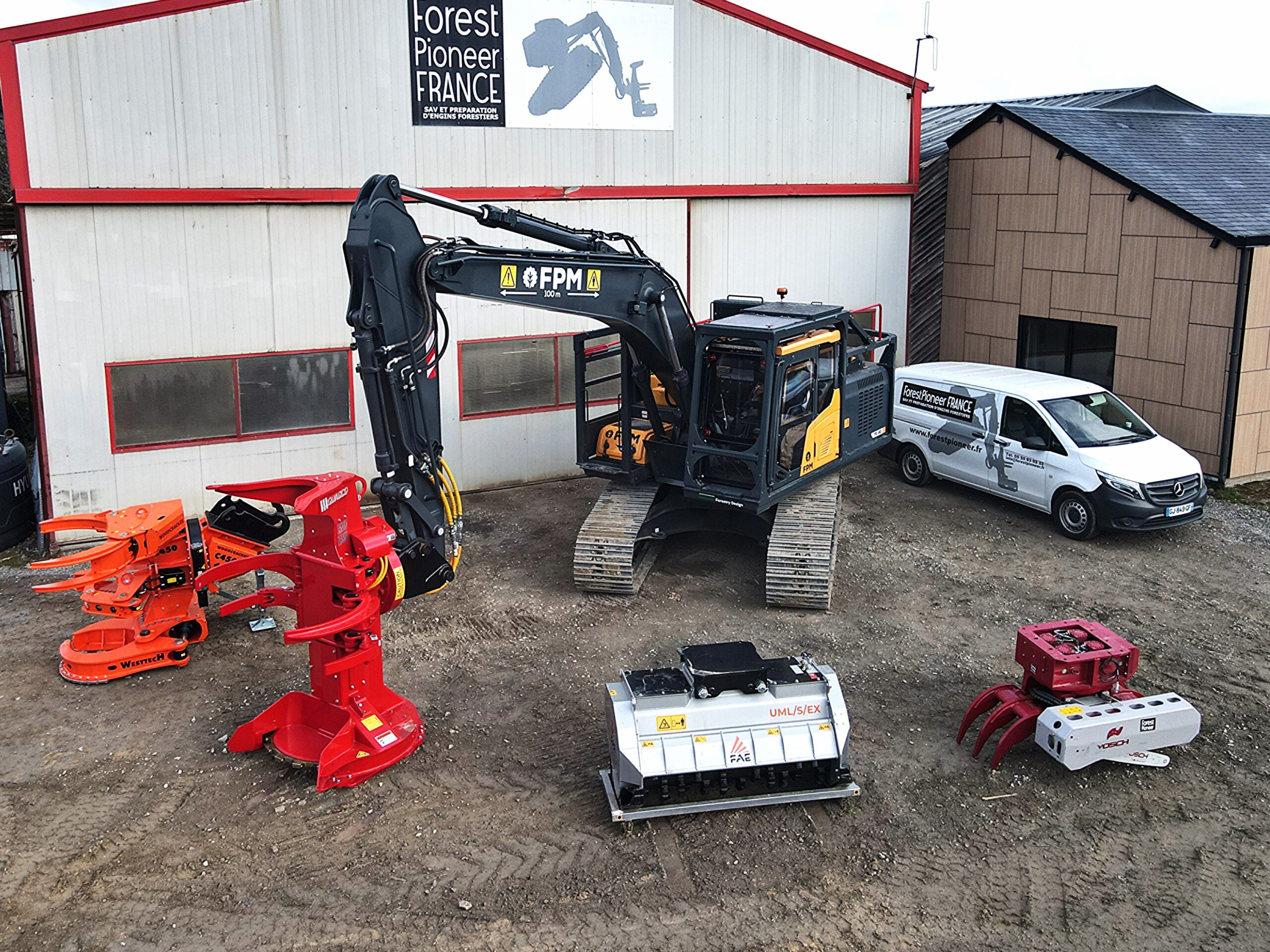

Recommended equipment:

• Harvesting heads: AFM 60 and AFM 65.
• Forestry mulchers: FAE BL3 – UML/EX.
• Shears: Westtech C450.
• Saw grapples: VOSCH 1950VC.

Custom Adaptation: Do you need a specific configuration? Contact us for personalized advice.
——————-
FAQ (Frequently Asked Questions)

1. What is the main advantage of the TR 190 N over the standard TR 190? The TR 190N offers superior lifting capacity and stability thanks to its heavier chassis and larger counterweight. It is designed to operate larger harvester heads (such as the AFM 65) and work more effectively with large-diameter timber or on steep slopes.

2. Does the smaller engine affect head performance? No. Although it mounts a Cummins B4.5 (compared to the B6.7 in the standard), the power remains at 190 HP and, most importantly, the hydraulic flow remains at 450 l/min. You will have the same working capacity with the attachment.

3. Does it come protected for hard forestry work? Yes, it includes the full FPM protection package: HD guard plate for the swivel joint, reinforcements on travel motors, hose protection on the boom and stick, and OPS safety windows.

4. What type of tracks or pads does it use? It comes standard with 500 mm pads to maintain the narrow profile, although it supports other configurations depending on terrain needs.

5. Is it compatible with digital management systems? Yes, the machine can include the “Connected Machine” system (FPLINK) for performance analysis and alert management, optimizing maintenance and productivity.
