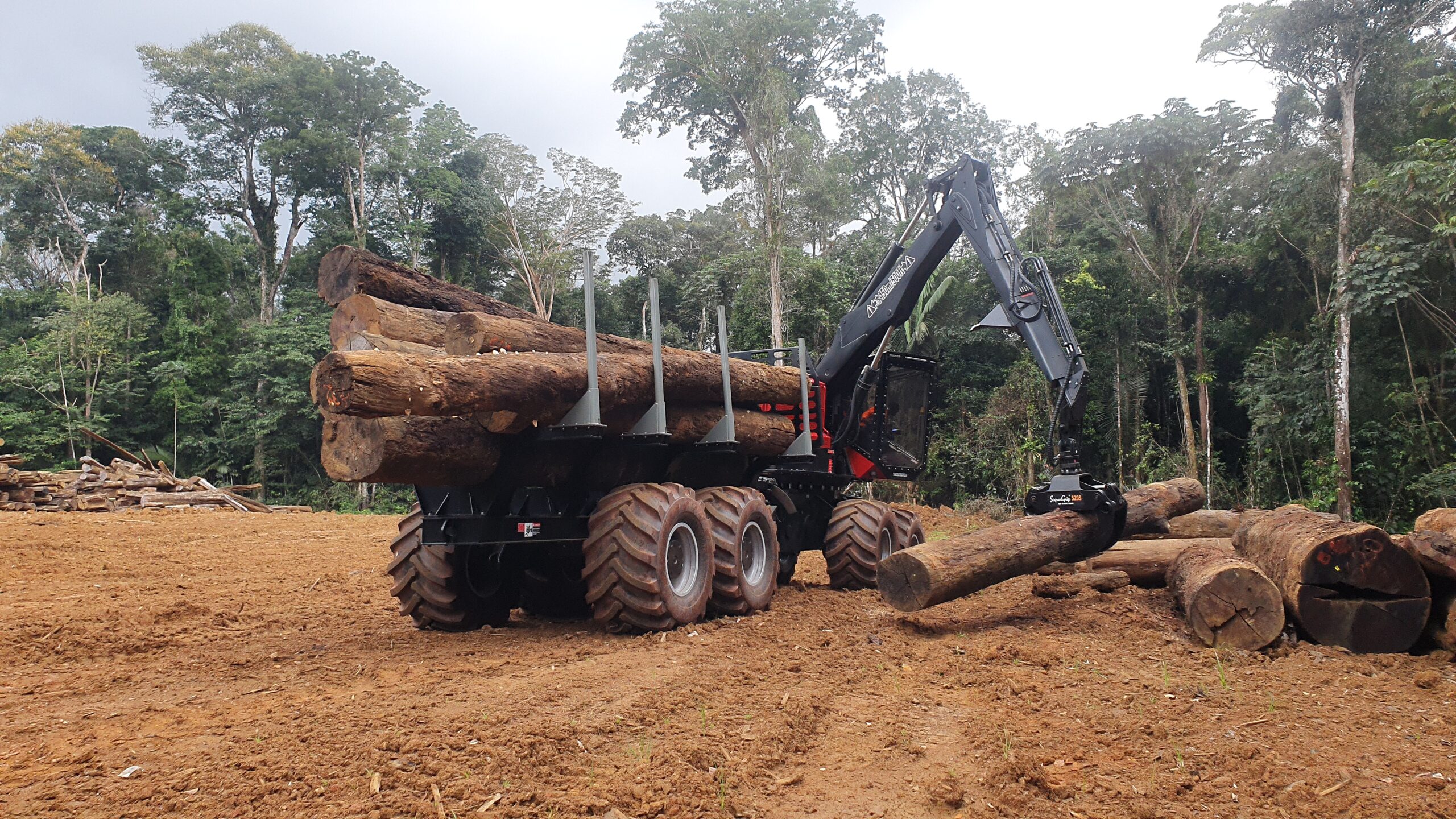

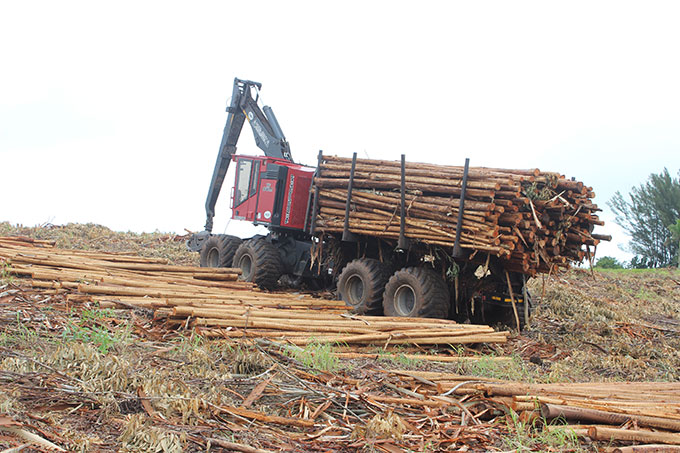

Forestry Forwarder – TimberPro TF830D

Engineering and Design: Capacity and Versatility.
The engineering of the TF830D is “field-engineered for the woods,” featuring a standard 360° continuous rotation cab that allows the operator to always face the load, optimizing visibility and reducing fatigue. The chassis features a bunk length of 5.10 m, ideal for transporting high volumes of log lengths. Additionally, its Gull Wing design provides total access to the engine and hydraulic components from a secure service platform, maximizing profitability through simplified maintenance.

Power and Performance: Cummins Strength.
Equipped with a Cummins L9 Series engine, this machine delivers 350 HP and exceptional low-end torque, complying with Stage V emission standards via the Single Module DOC/DPF/SCR system. Its state-of-the-art hydraulic system features a 145cc implement pump (360 l/min) and dual 120cc hydrostatic travel pumps, ensuring smooth crane movements and constant tractive power even under full load.

Safety and Comfort: Premium Cab.
The ROPS/FOPS/OPS certified cab offers a pressurized and filtered environment with digital climate control and a high-end heated air-ride seat. To ensure maximum protection, it includes 1.25″ (3.2 cm) polycarbonate front glass and a standard 15-gallon ANSUL LVS fire suppression system. High-intensity LED lighting and a rear-view camera allow for safe operation in the dense timber stands of northern Spain.

Fleet Compatibility and Adaptation: The TimberPro TF830D is an extremely adaptable platform, compatible with:

• Forwarder Cranes: Equipped as standard with a 7.72 m (25′ 4″) boom (without extension) for fast and precise loading.
• Attachments: Ability to install Hultdins 360s grapples or Clam Bunk attachments for specific applications.
• Tires: Options for 710/45 (standard) or 750/55 (optional) to optimize ground pressure and flotation.



Custom Adaptation: Do you need a specific configuration? Contact us for personalized expert advice to optimize your production.
—————————————–
FAQ – TimberPro TF830D

1. What are the benefits of the 360° cab rotation? It allows the operator to always have a direct line of sight to the crane and the loading area, eliminating the typical blind spots found in conventional forwarders and significantly increasing safety.

2. How does the machine perform in very wet or soft terrain? Thanks to its wide tire options (710/45 or 750/55) and its 8WD system with 20-ton NAF Bogie axles, the TF830D offers excellent flotation, minimizing soil impact while maintaining constant traction.

3. Is it suitable for work in northern Spain? Absolutely. Its 350 HP and robust build make it ideal for the steep slopes and the pine and eucalyptus stands of Galicia, Asturias, and the Basque Country.

4. What fire safety measures are included? It comes standard with a 15-gallon ANSUL LVS system, specifically designed for forestry applications, providing a rapid response to any thermal incident.

5. What is the crane’s lift capacity at maximum reach? With the standard crane, it offers high lifting capacity; when equipped with an optional telescopic extension, it can handle approximately 2,866 kg at a maximum reach of about 9.6 m.
