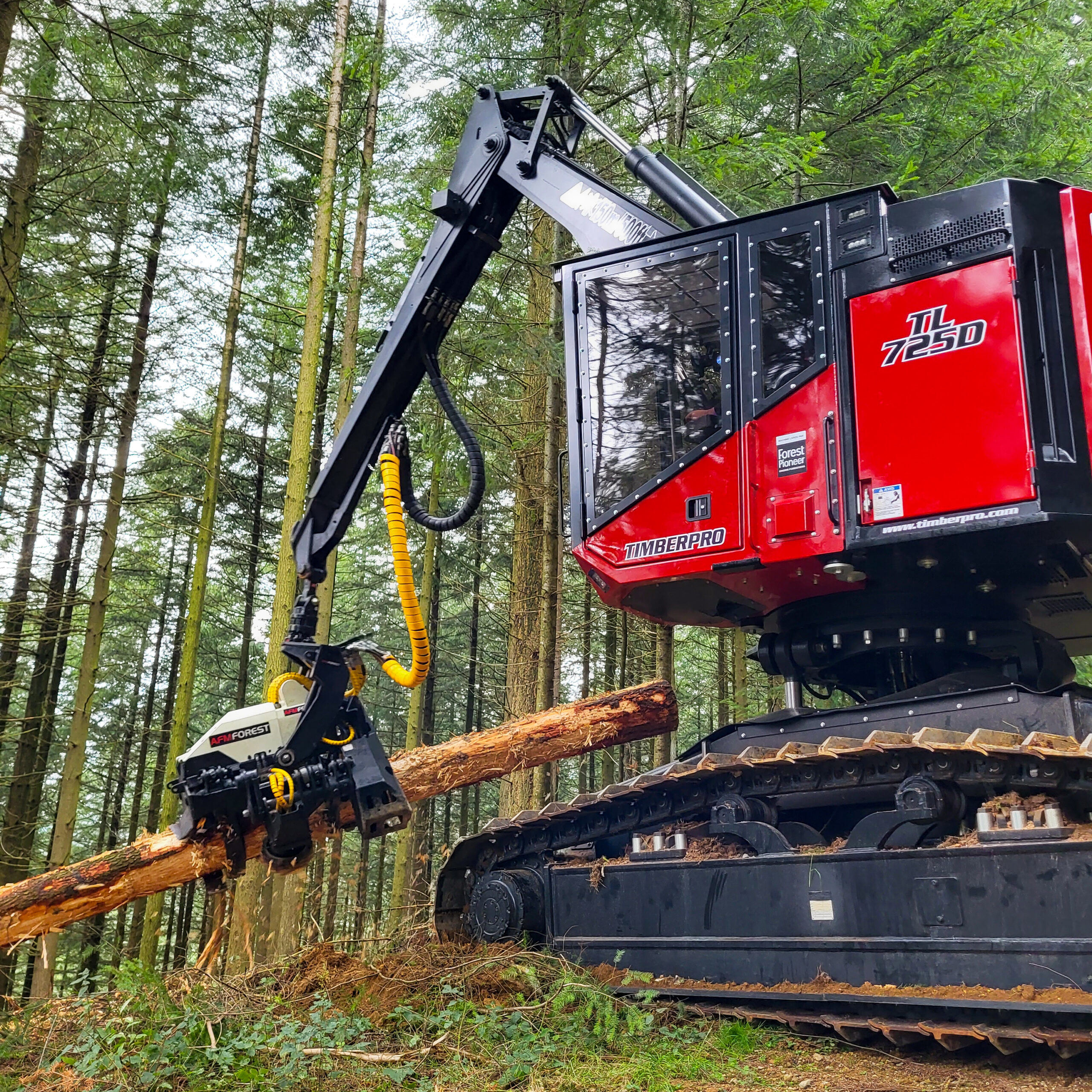

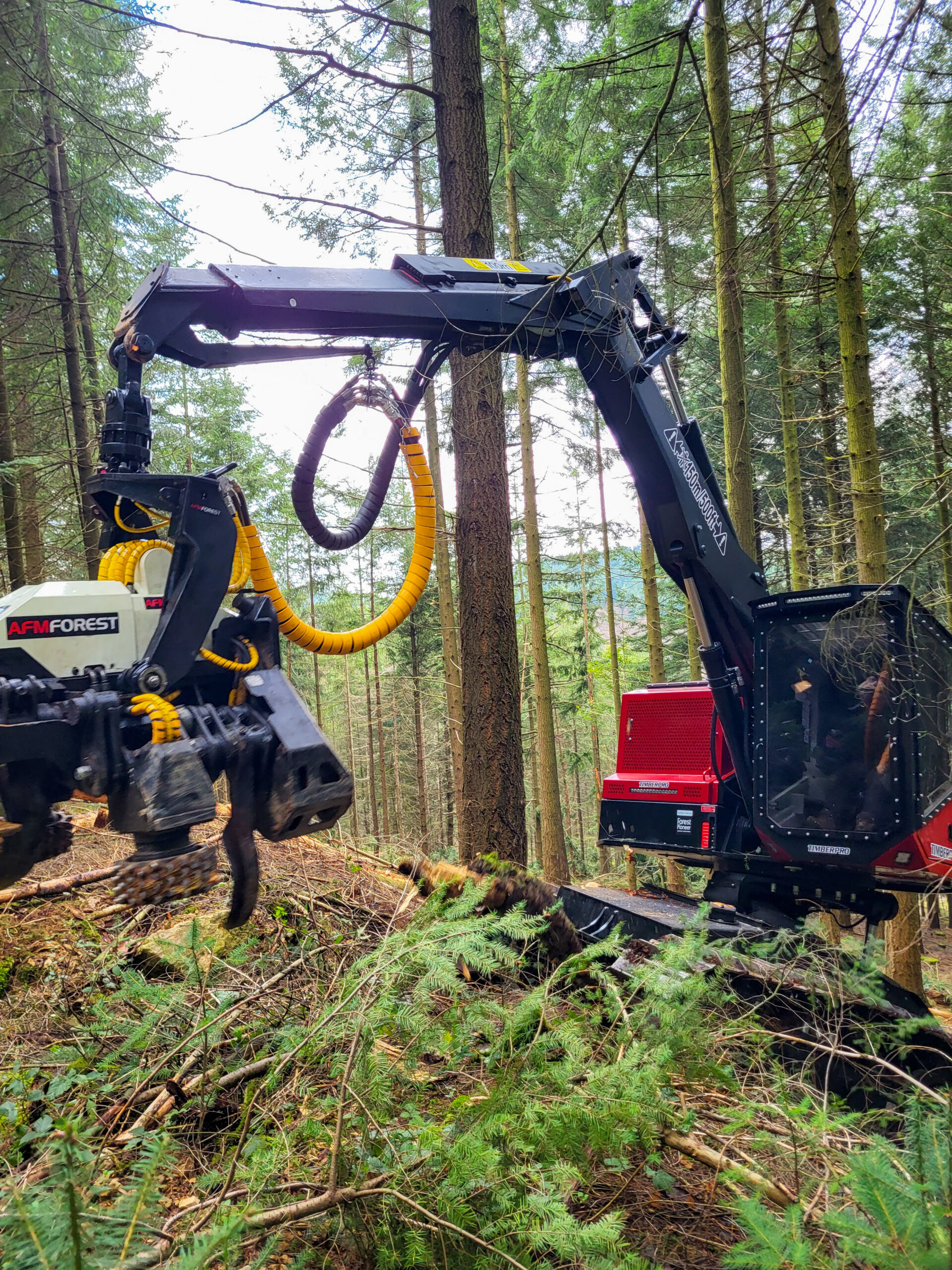

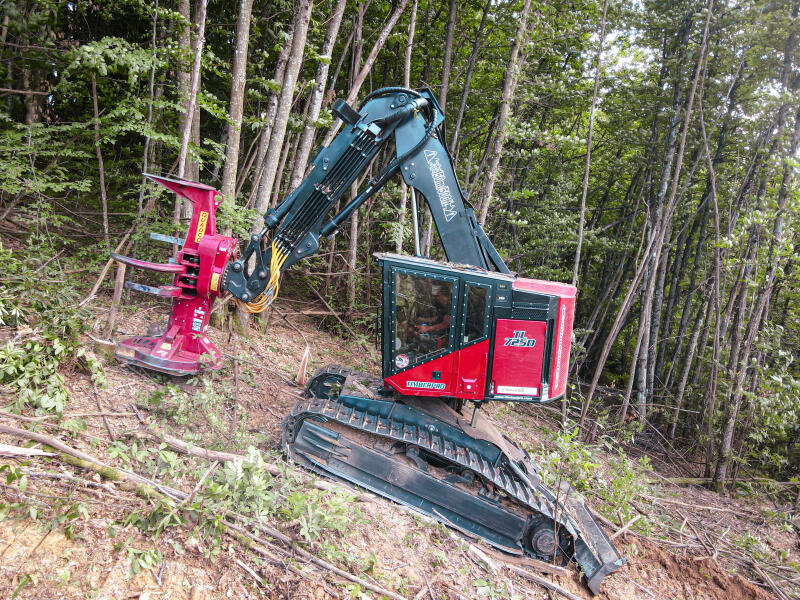

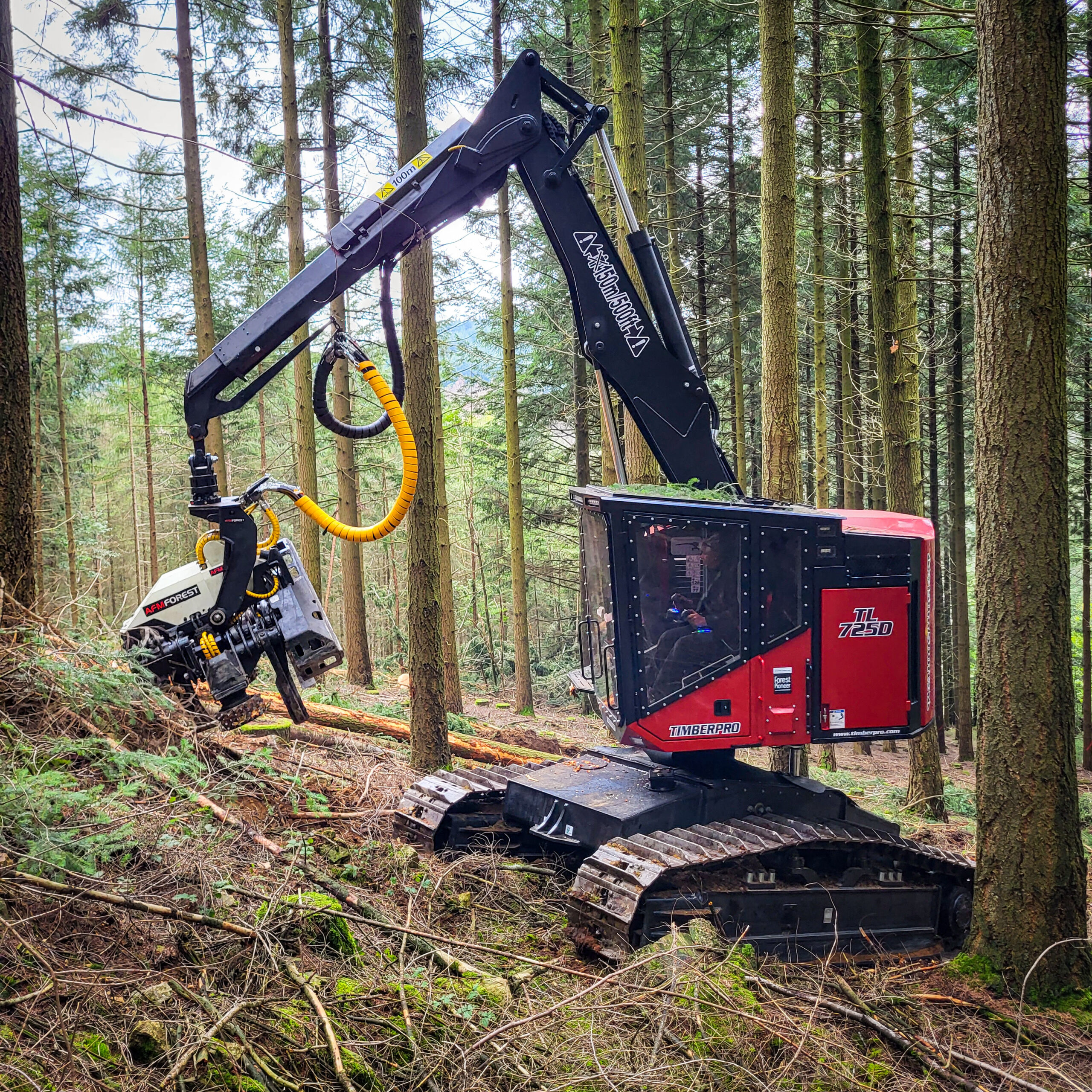

Leveling Feller Buncher– TimberPro TL725D

Engineering and Design: Extreme stability.
The TL725D stands out for its robust one-touch Auto-Leveling system, allowing for corrections of 24° forward, 7° rear, and 24° to the sides, ensuring the operator can work in extreme conditions with a perfectly level cab. Built on a Caterpillar 325 (D6) chassis, its design prioritizes serviceability via a rear Gull Wing enclosure that provides total access to the engine and hydraulic components.

Power and Performance: Limitless output.
Equipped with a 350 HP Cummins L9 Series engine (Stage V), it delivers 1,126 lb-ft of torque at low RPMs for immediate response under load. Its high-flow hydraulic system, featuring a 145cc implement pump (360 l/min), ensures that any felling or harvester head operates at its full potential, completing jobs in record time thanks to an impressive 305 kN tractive effort.

Quality and Safety: Precision in every movement.

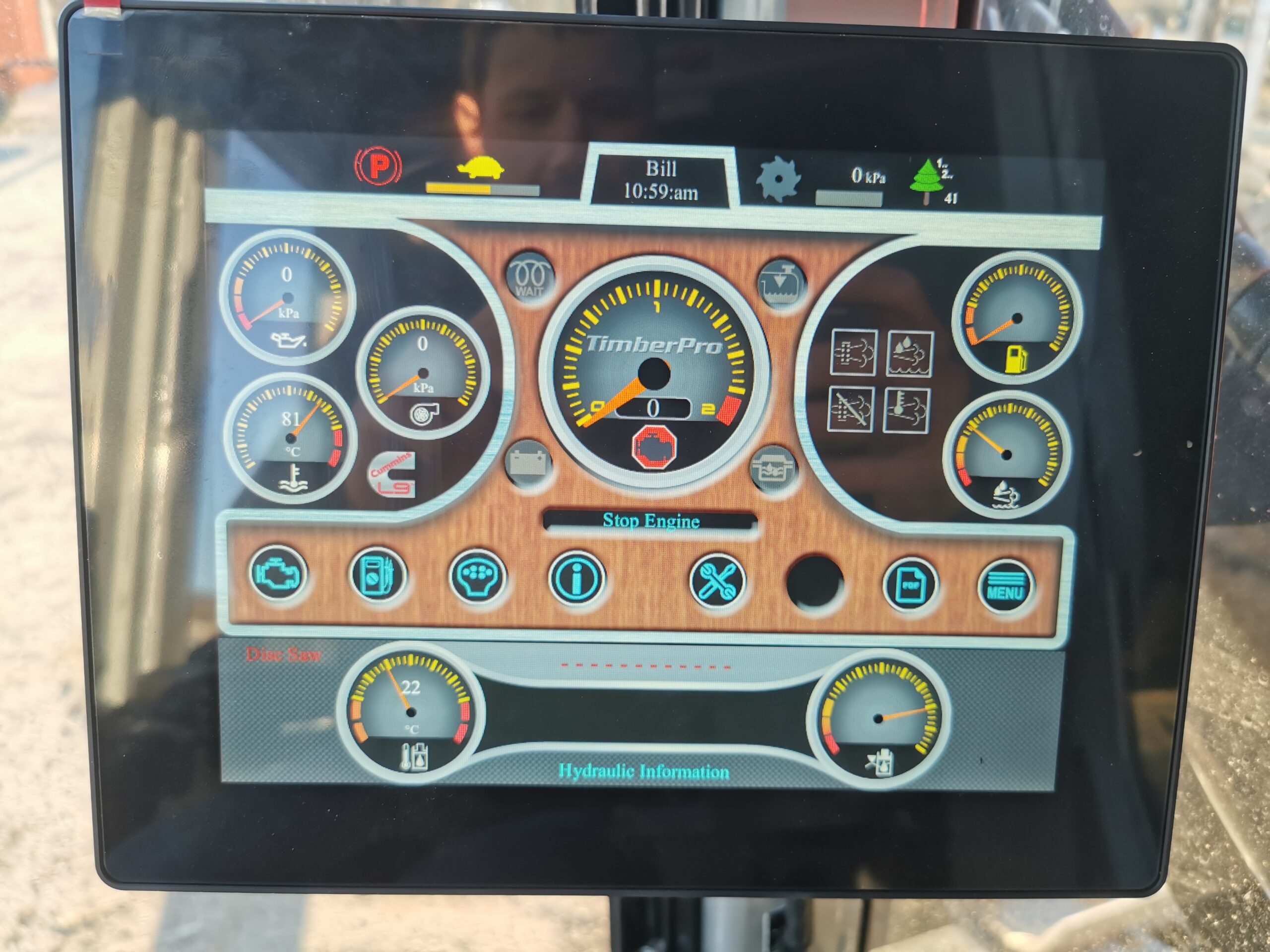

The IQAN MD4 HD control system with a 10″ touchscreen allows for precise machine management and advanced diagnostics. The ROPS/FOPS/OPS certified cab features 3.2 cm (1.25″) polycarbonate front glass and three emergency escape routes, ensuring maximum operator protection. Additionally, a 15-gallon ANSUL LVS fire suppression system comes standard for total peace of mind in the woods.

Fleet Compatibility: The TimberPro TL725D is a versatile platform ideal for:

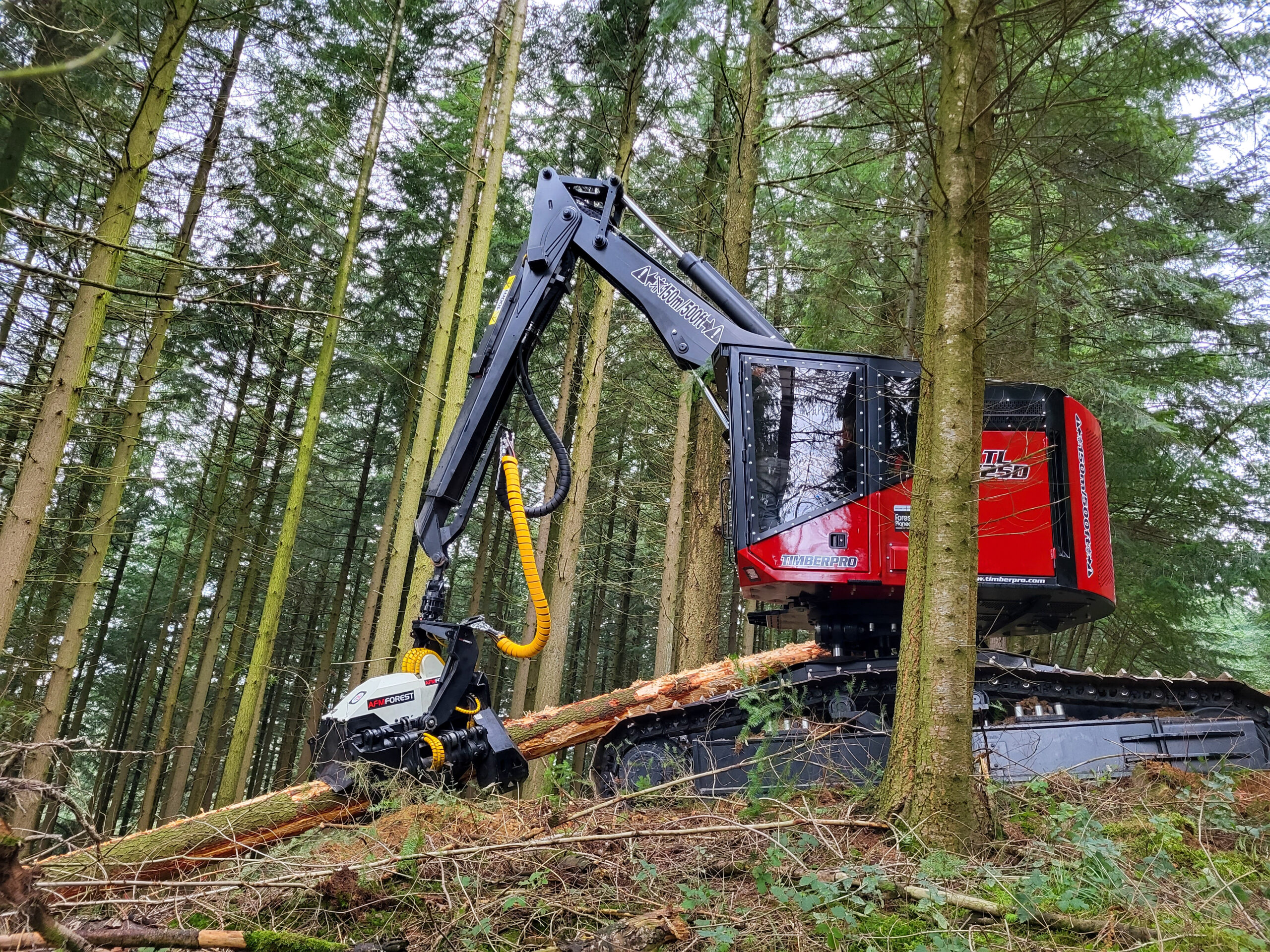

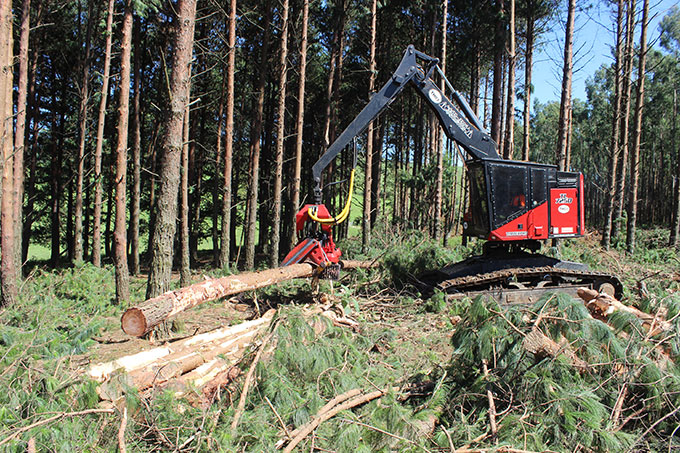

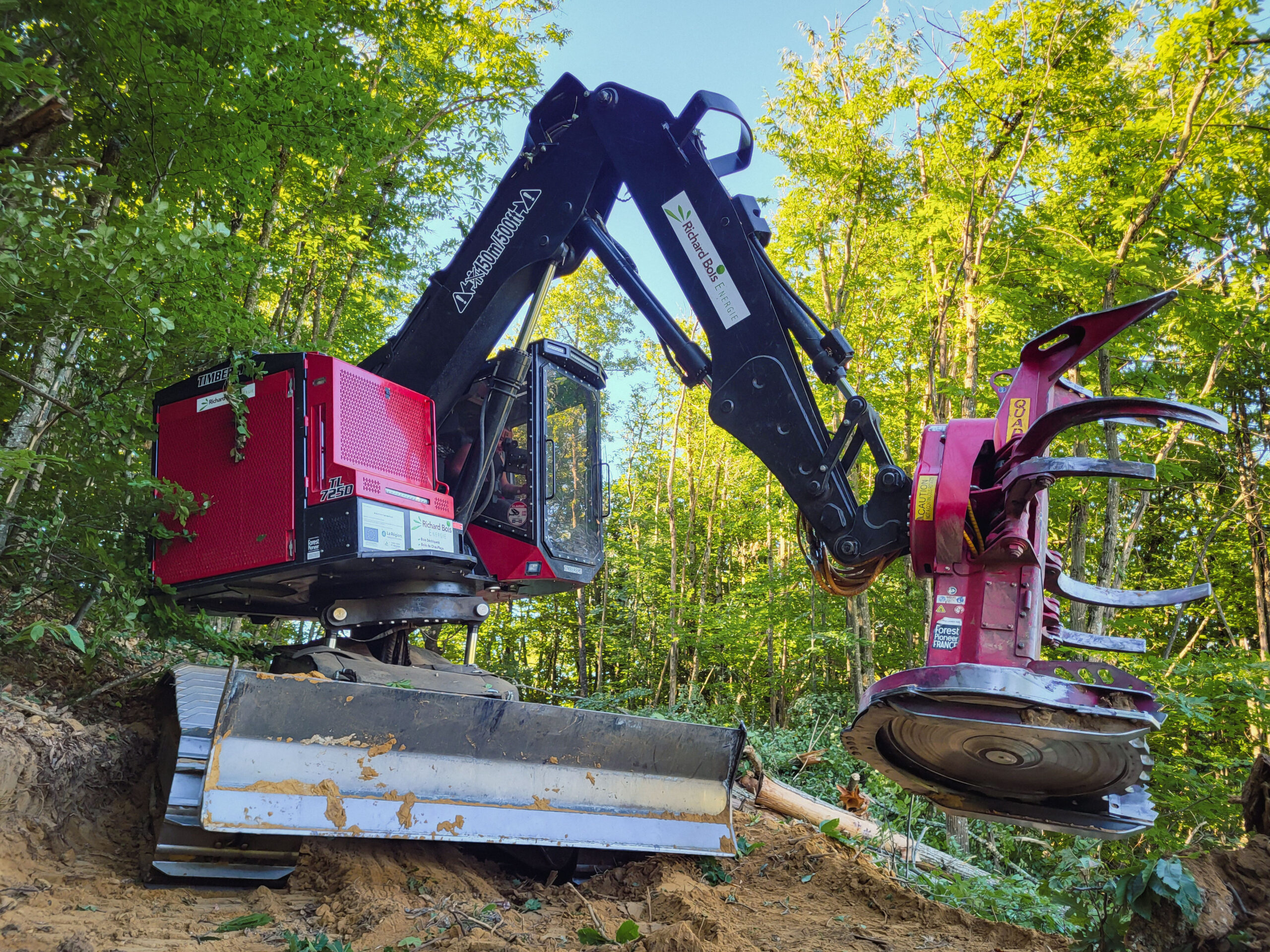

• Large-scale disc saw felling heads and harvester processors.
• Measuring Systems: Fully compatible with industry standards for precise processing.
• Configurations: Available with a long-reach felling boom (7.9 m / 26′ upon request).

—————————————
FAQ – TimberPro TL725D

1. What is the real leveling capacity of the TL725D? The system allows for front and side corrections of up to 24° and 7° to the rear. This ensures the operator remains comfortable and the machine maintains an optimized center of gravity on steep inclines.

2. Is it suitable for work in protected areas or regions with strict emission regulations? Yes, the Cummins L9 engine complies with Stage V / Tier 4 Final regulations, drastically reducing pollutant emissions and meeting European standards.

3. What is the daily maintenance routine like? It is extremely straightforward thanks to the side access doors and the full-opening rear Gull Wing enclosure. It also includes a vacuum pump for the hydraulic tank and an electric oil refill pump to prevent contamination and simplify servicing.

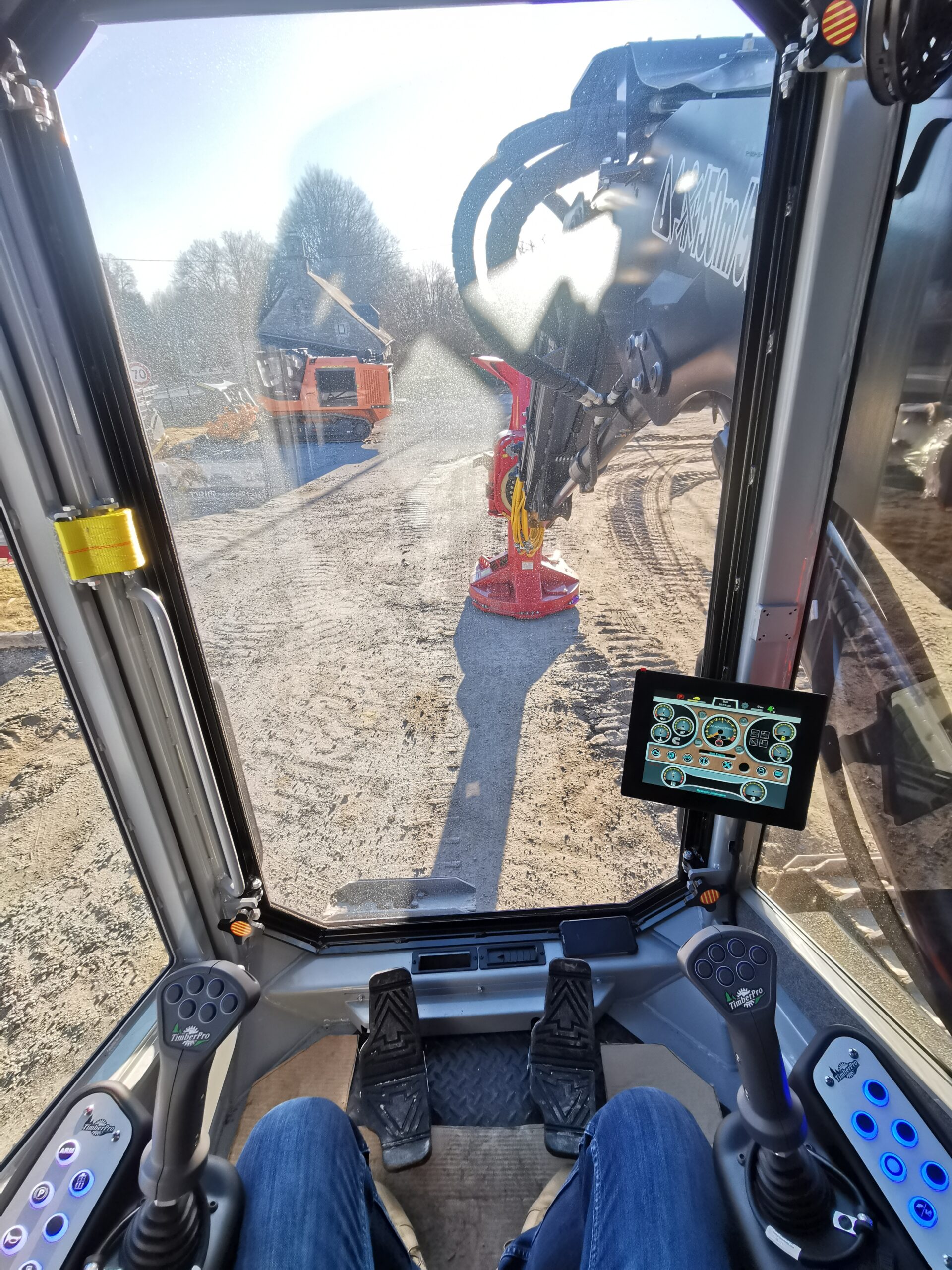

4. What visibility does the cab offer for high-reach work? The cab features a high-visibility design and a high-intensity LED lighting package. It also includes a standard rear-view camera for safe maneuvering in dense forest stands.

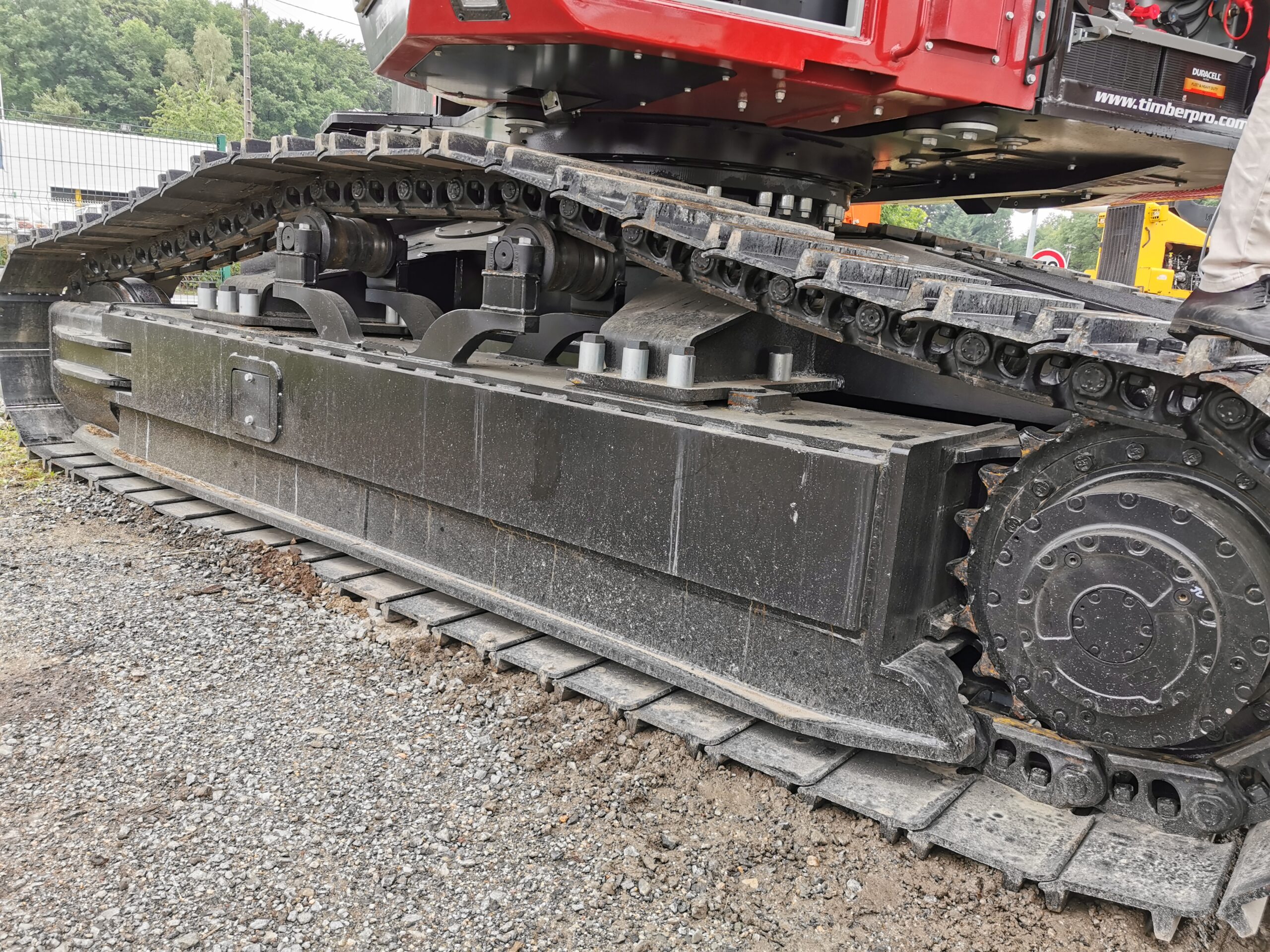

5. What is the machine width with standard tracks? The total machine width is 3.15 m (10′ 4″), providing exceptional lateral stability even before engaging the leveling system.
