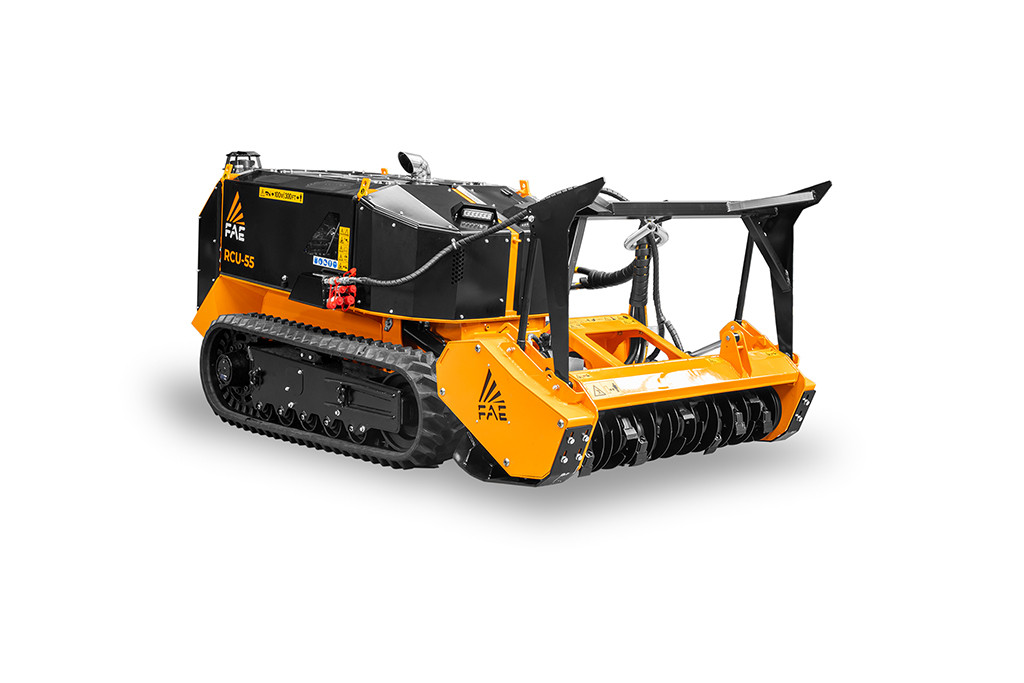

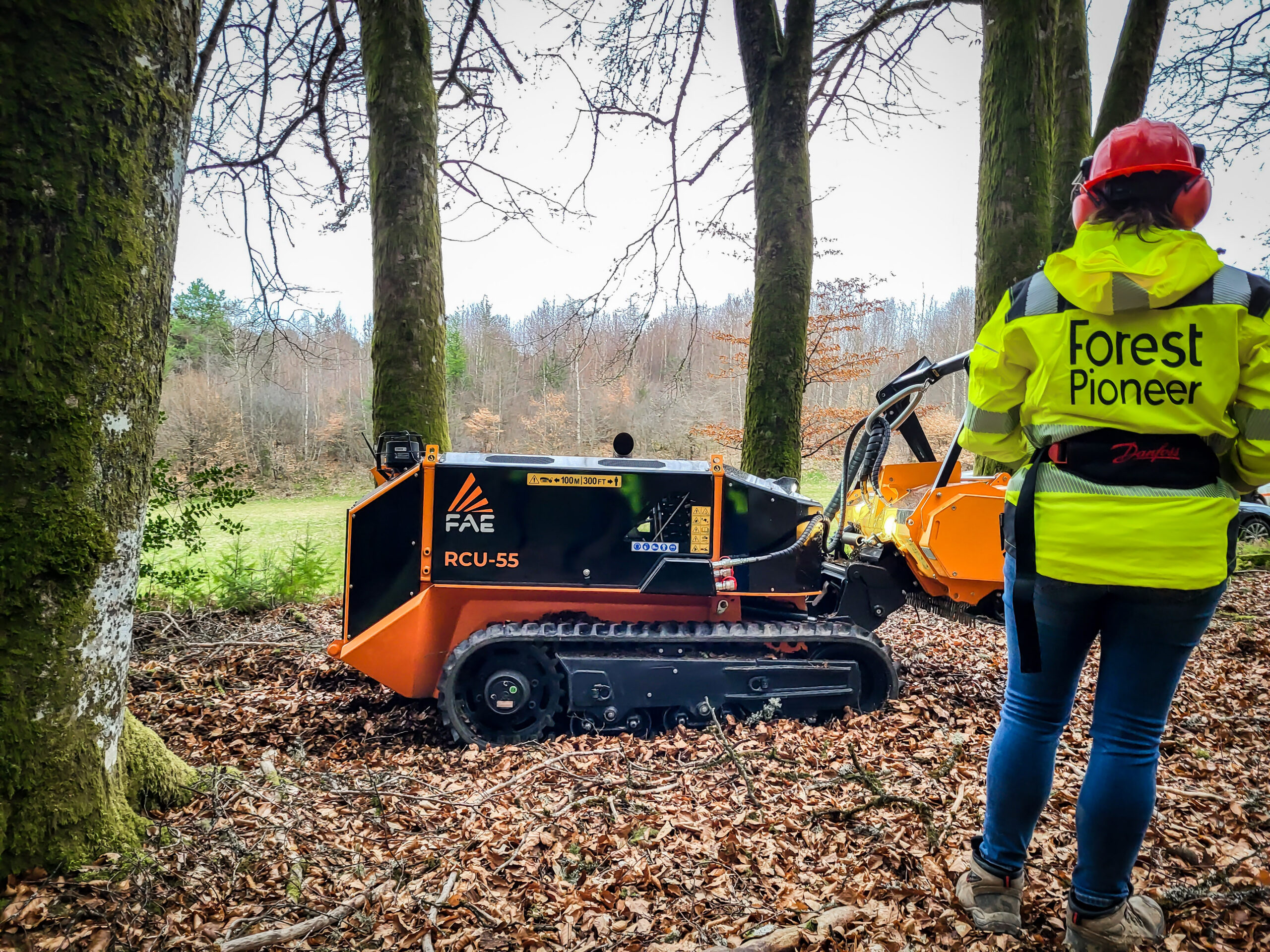

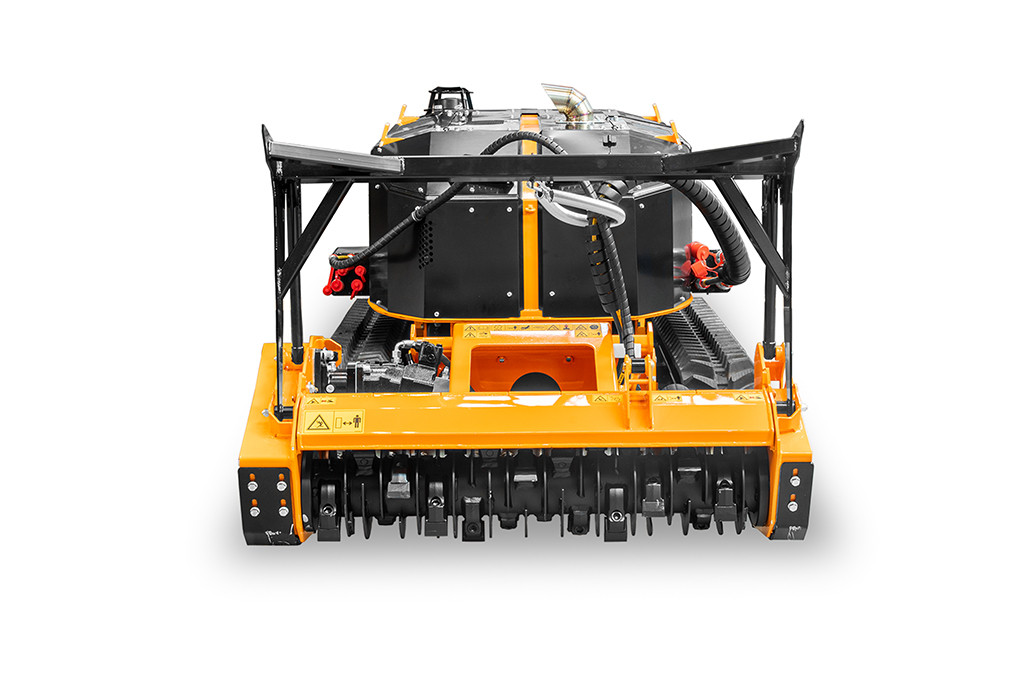

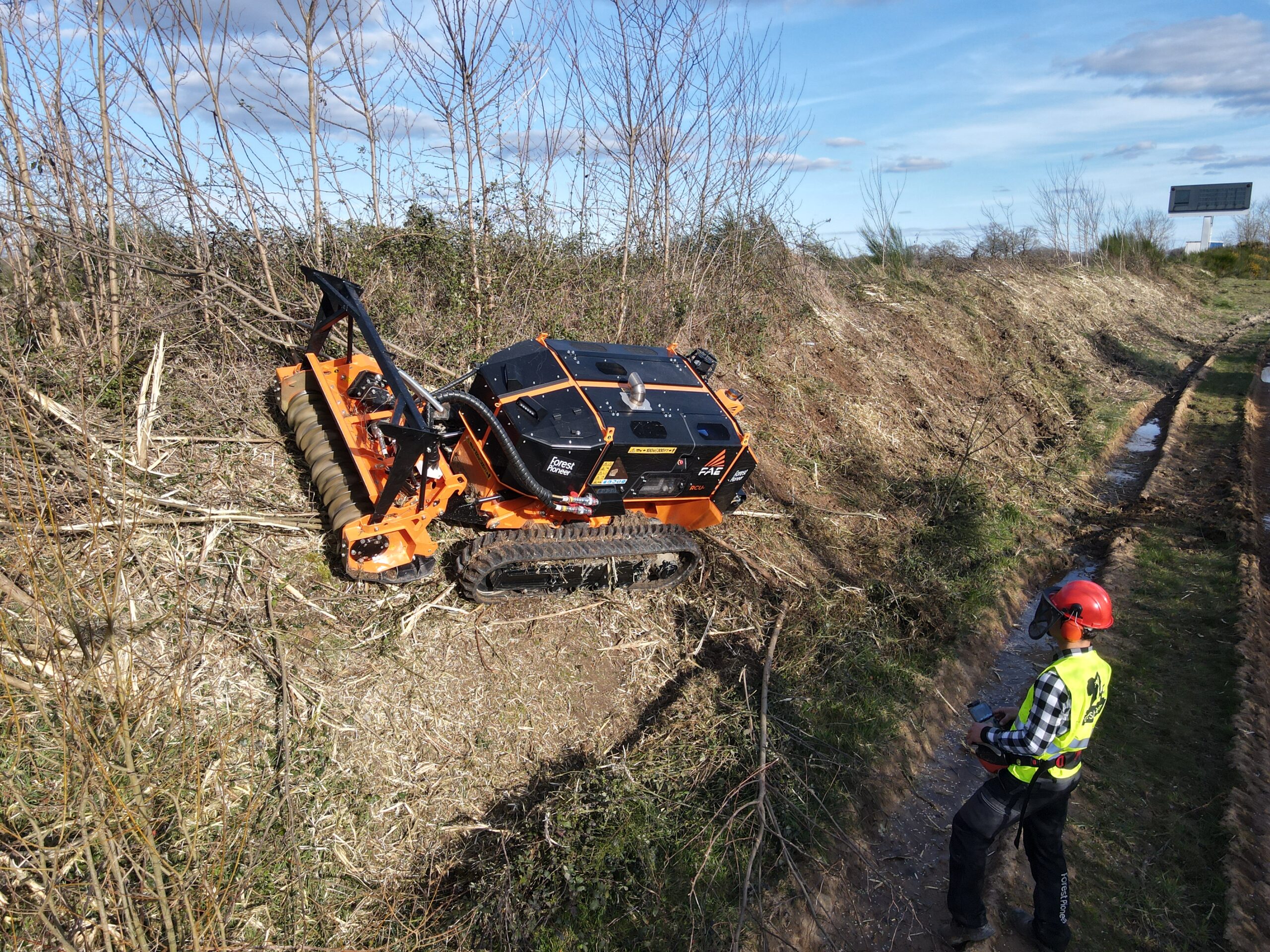

Remote-Controlled Tracked Carrier – FAE RCU 55

Engineering and Design: Compact Safety and Robustness.
Drawing from FAE’s extensive experience with PT-series carriers and Demining systems, the RCU 55 features a heavy-duty steel chassis with all critical components fully integrated and protected. A standout feature is its independent hydraulic variable track system, allowing the width to expand from 1,450 mm to 1,750 mm to maximize stability on steep side slopes. The automatic track tensioning system ensures the rubber tracks are always optimized for the toughest conditions without the need for constant manual intervention.

Performance and Power: Intelligent Power from Kohler & Danfoss.
The RCU 55 is powered by a 56 hp REHLKO (Kohler) KDI 1903 turbo aftercooler engine, fully compliant with Stage V emission standards. Its dual-circuit hydrostatic transmission utilizes independent 28 cc Danfoss pumps for travel and a dedicated 28 cc pump for the attachment, optimizing flow to the mulcher. Thanks to the integrated Load Control system and electro-hydraulic management, the machine automatically prioritizes the attachment’s workload, preventing the engine from stalling during sudden surges in material density.

Technology and Control: Precision at a Distance.

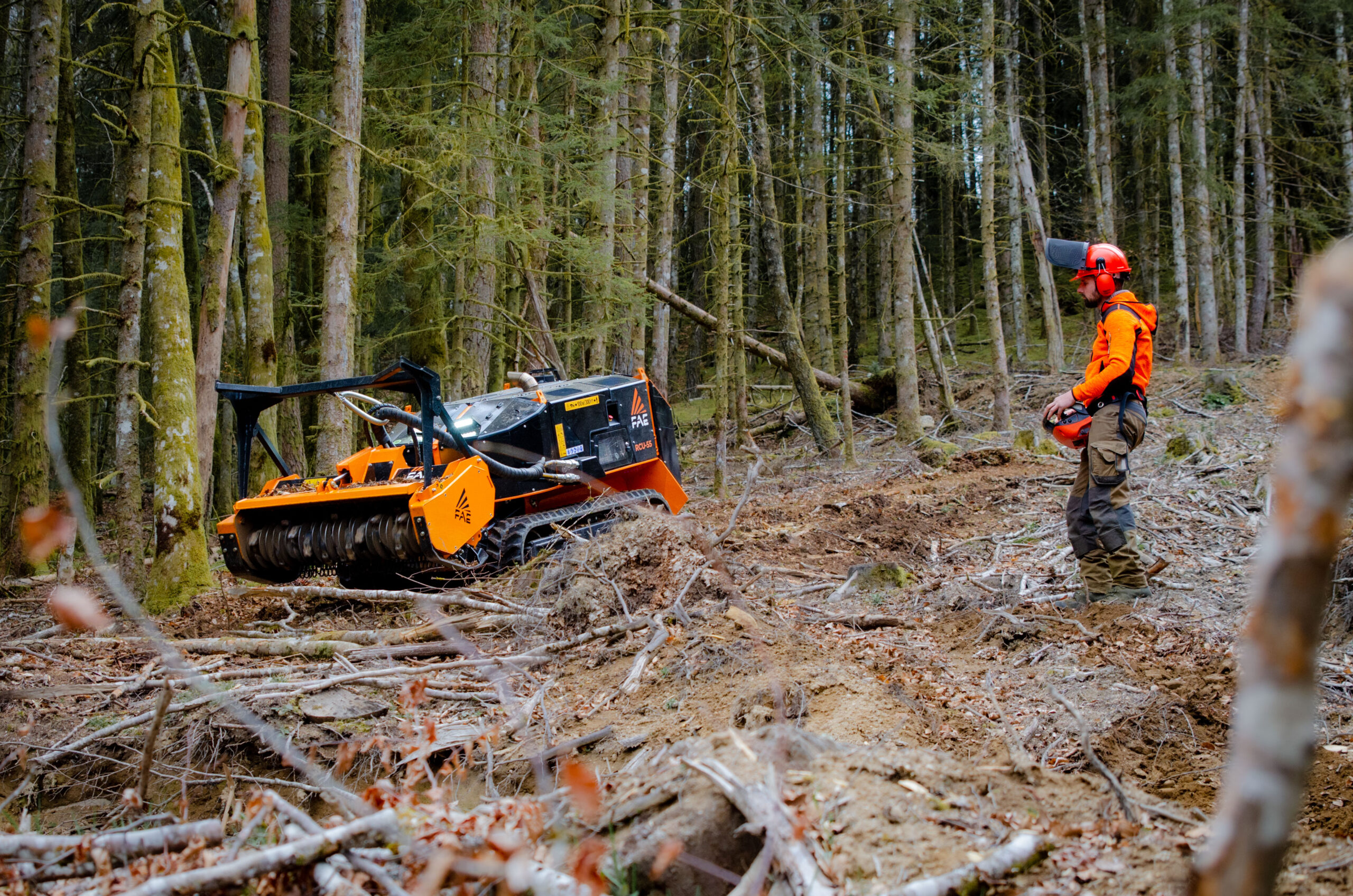

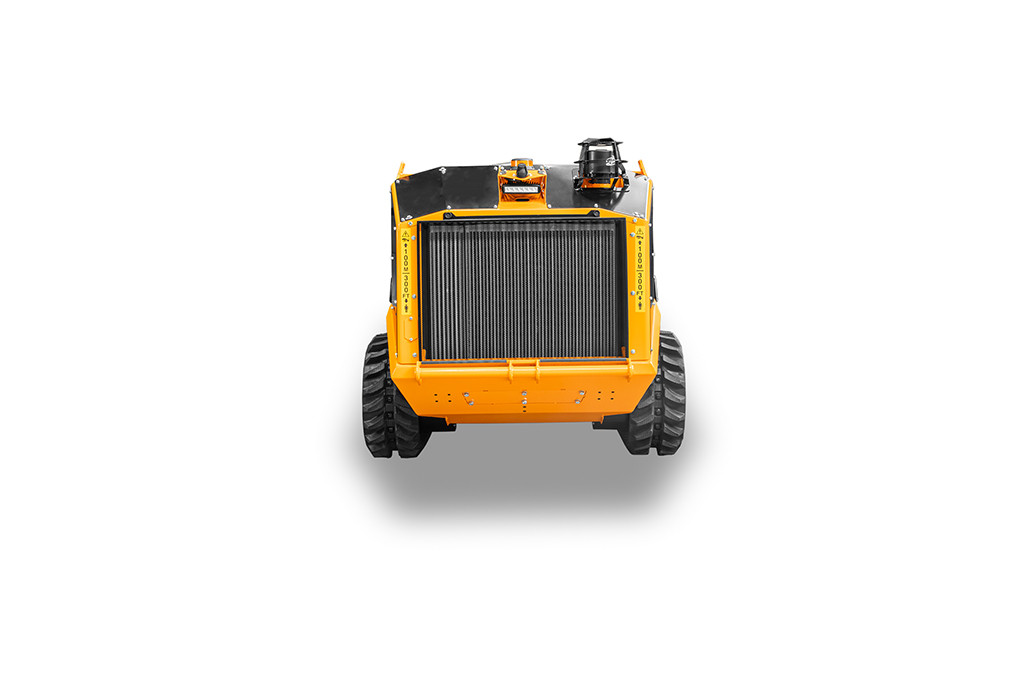

Full operational control is managed through a professional ergonomic remote control equipped with a 4.3″ LCD screen (or 3.5″ depending on configuration), allowing real-time monitoring of all vehicle and attachment parameters. Additionally, the FAE mobile app enables operational oversight and scheduled maintenance management directly from a smartphone. The system is completed by a self-cleaning radiator with a proportional reversible fan, essential for maintaining peak cooling performance in environments with high levels of airborne debris.

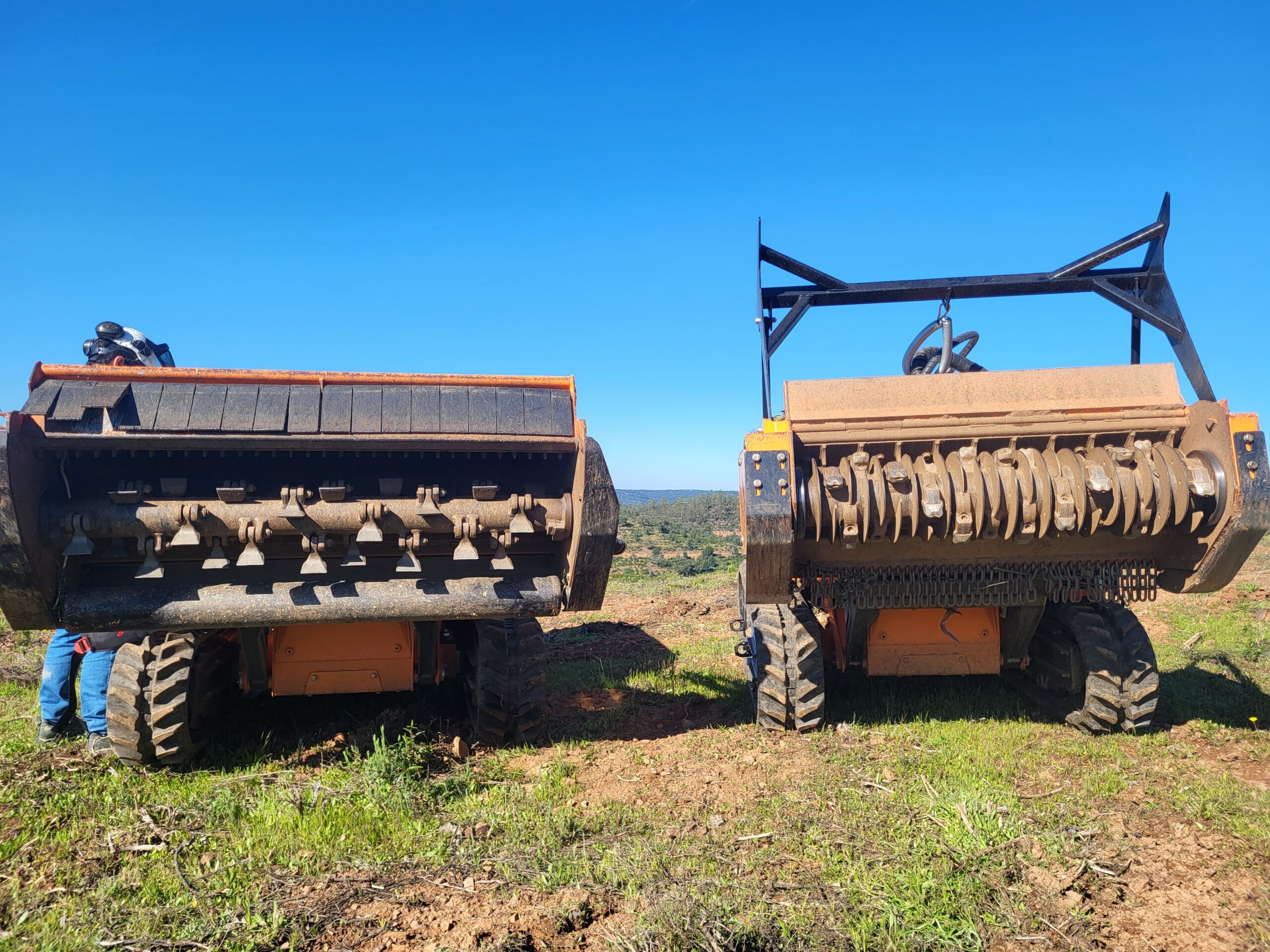

Fleet Compatibility: The RCU 55 is a multi-purpose platform compatible with various specialized FAE heads:

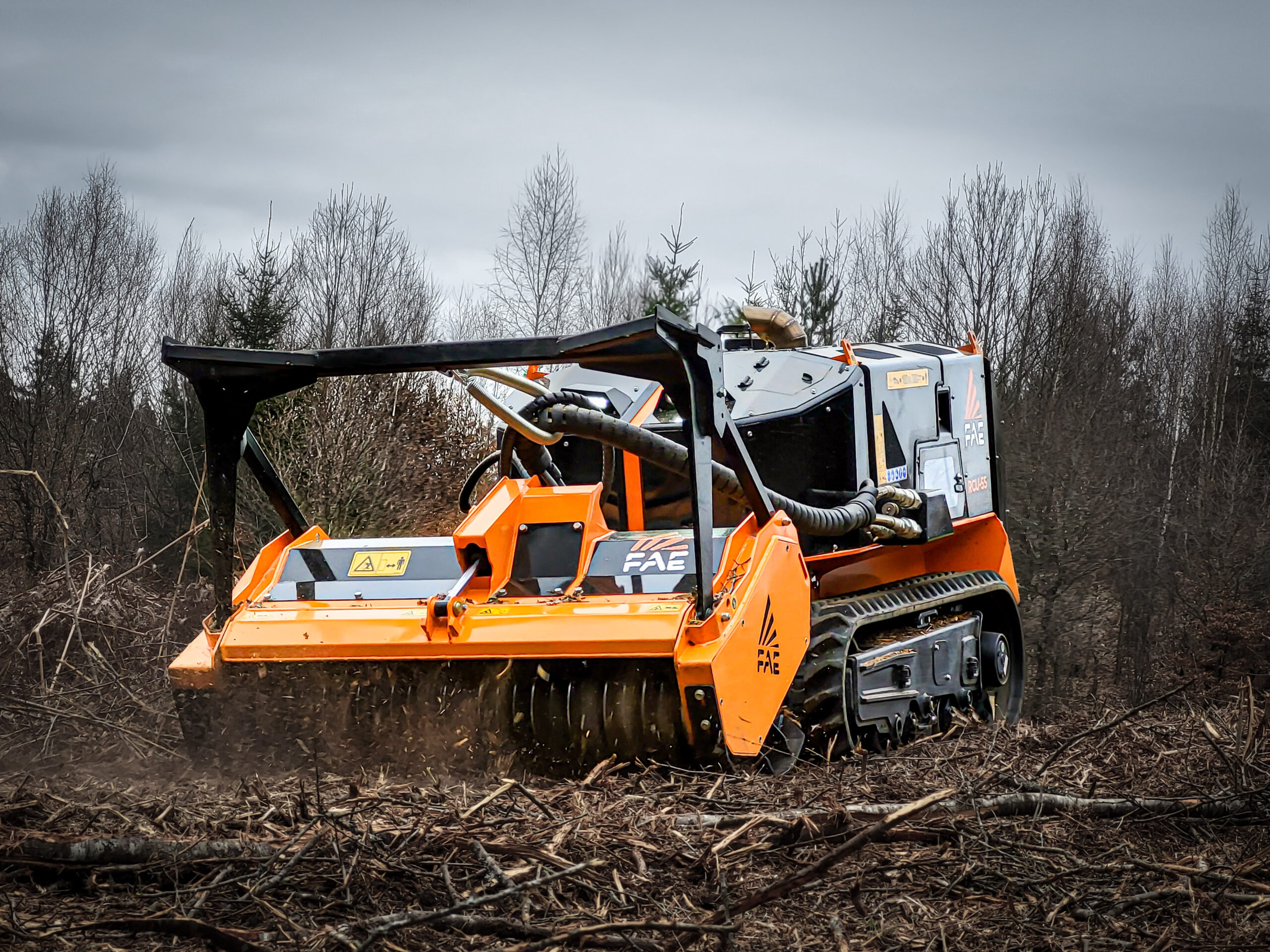

• BL1/RCU 55-125: Forestry mulcher with Bite Limiter technology for vegetation up to 12 cm in diameter.

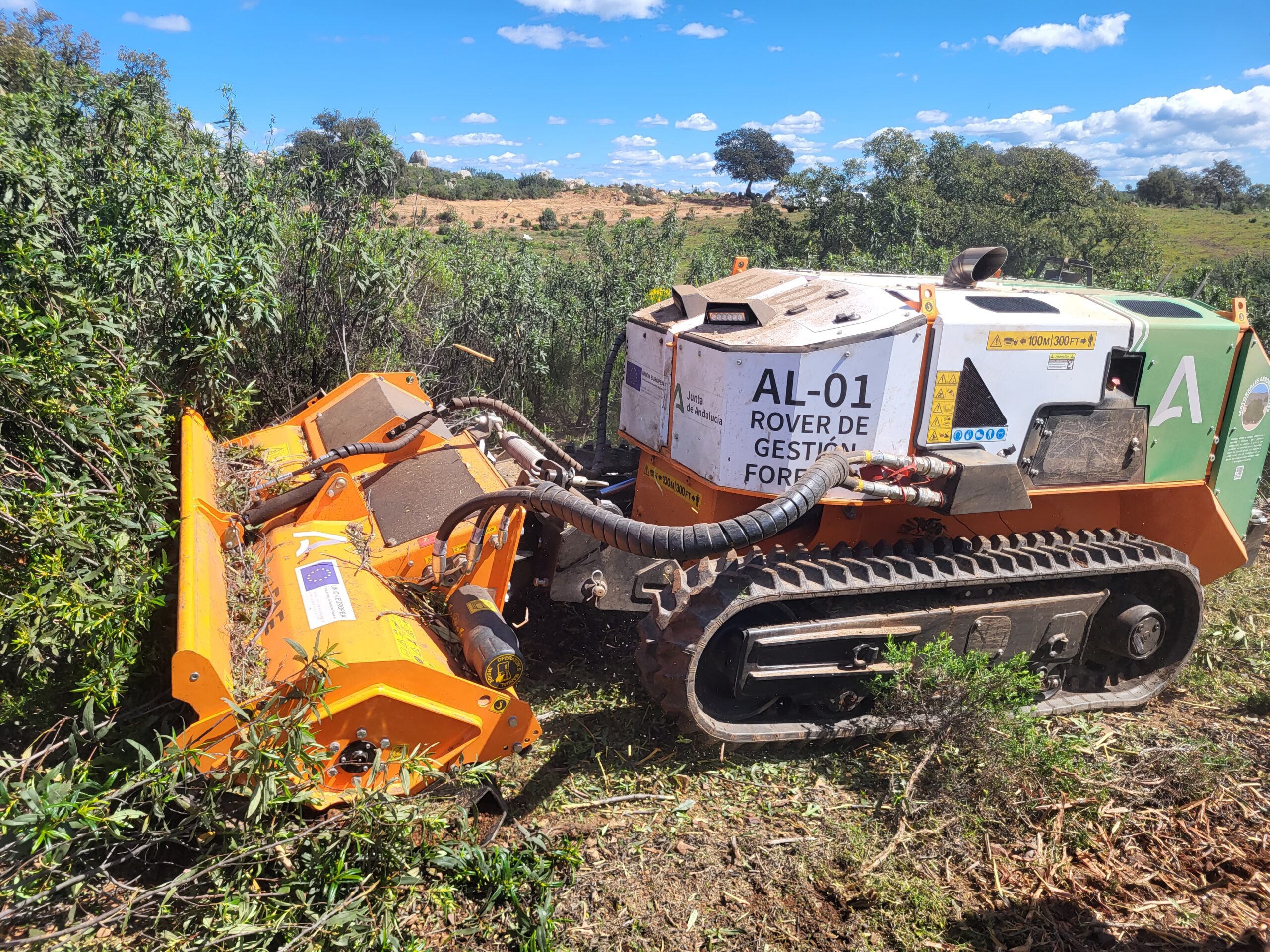

• PML/RCU 55-150: High-efficiency flail mulcher for grass and brush up to 5 cm in diameter.
• SCL/RCU 55: Stump grinder capable of milling roots down to 45 cm deep.
• Hydraulic Requirement: Closed-loop circuit with a flow rate of 75 L/min and 290 bar maximum pressure.



Custom Configuration: Do you need a specific setup or attachment? Contact us for personalized technical advice.
———————–

FAQ (Frequently Asked Questions)

1. What advantage do the high-profile rubber tracks offer? They ensure exceptional traction on slippery terrain or in dense vegetation, minimizing soil damage and allowing smooth travel speeds of up to 8 km/h.

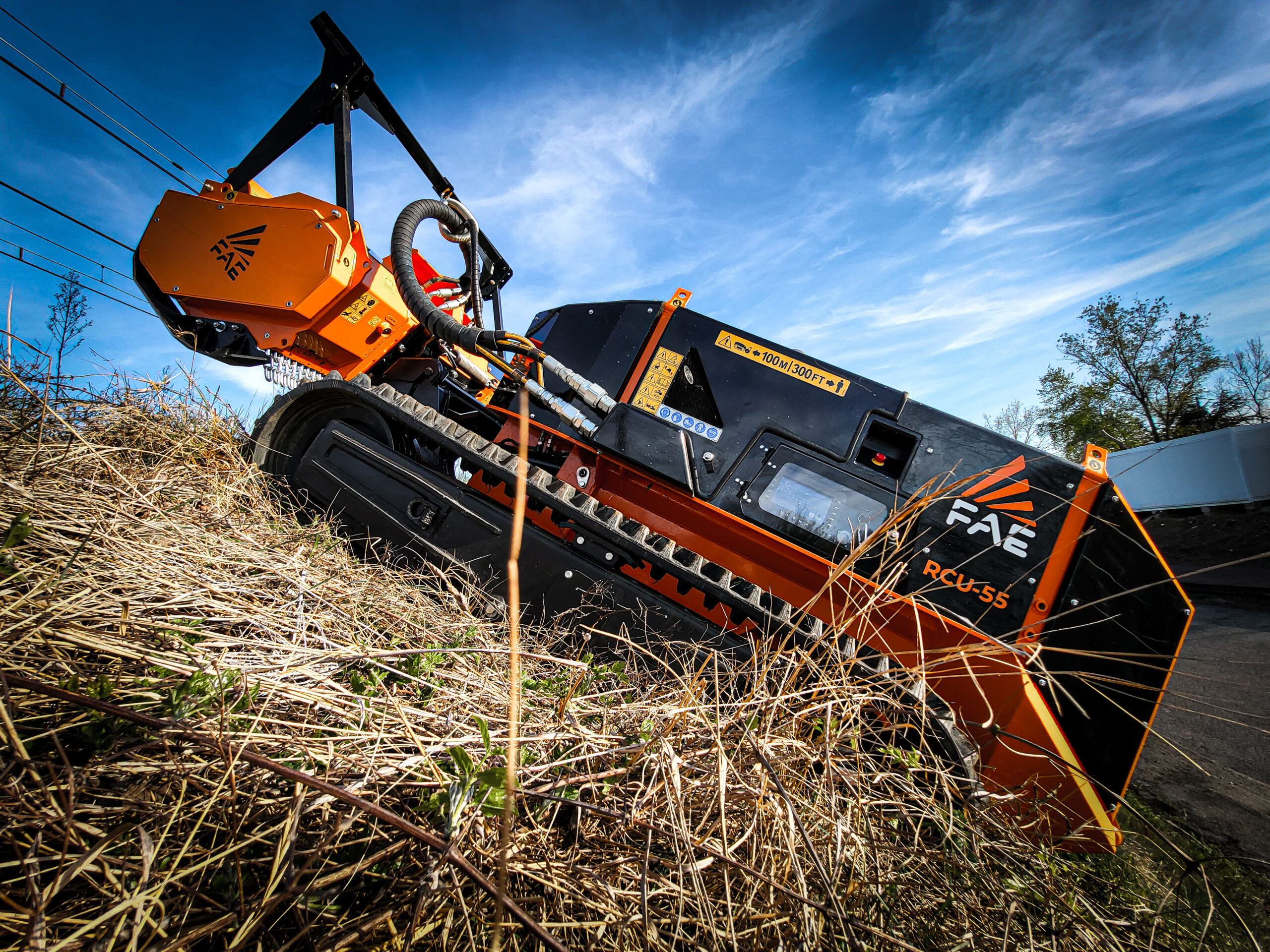

2. How does it ensure stability on such steep slopes? The RCU 55 uses a hydraulic variable track system that widens the undercarriage to 1,750 mm, lowering the center of gravity and allowing safe operation on gradients of up to 55°.

3. What is the Load Control system in this model? It is an intelligent management system that automatically adjusts travel speed to maintain the attachment at optimal RPMs, preventing the engine from losing power during heavy-duty tasks.

4. Is it difficult to manage the maintenance of a remote-controlled vehicle? Not at all. The FAE mobile app allows for real-time parameter monitoring and scheduled maintenance alerts, while the reversible radiator keeps the cooling system clean automatically.

5. What is included with the purchase of the equipment? Along with the user manual and full parts book, a 1-day technical training session for the operator is included, as well as a factory warranty of 1,500 hours or one year.
