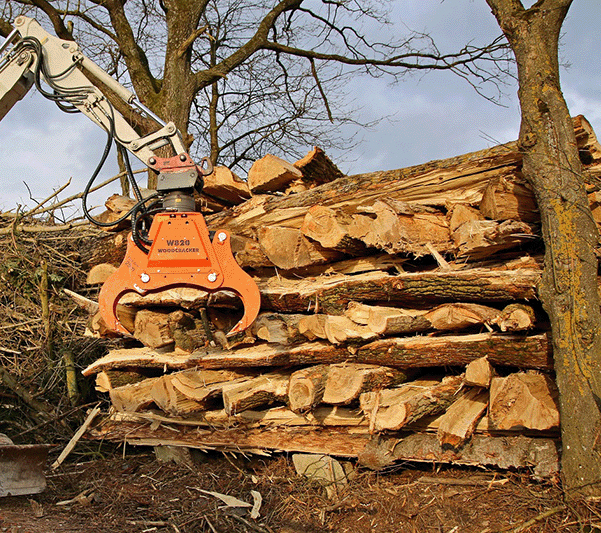

Wood splitting tongs – Woodcracker W820

Engineering and Design: Hardox® Durability for the Professional.
True to the “engineering for the woods” philosophy, the Woodcracker W820 is manufactured entirely from high-strength Hardox® steel. To ensure extreme durability against corrosion in harsh environments, it features a KTL (cathodic dip-priming) treatment and powder coating. It incorporates premium pin bearings that ensure smooth operation with minimal wear and low service requirements.

Performance and Feed: Intelligent Power with Autospeed.
The W820 stands out for its 820 mm opening capacity and a constant splitting force of 26 tons at 240 bar. This model offers the optional Autospeed system—an intelligent hydraulic control that enhances splitting performance by optimizing pressure cycles based on the wood’s hardness. Its high-strength blade penetrates the most demanding logs, allowing for fast and efficient pre-processing for chipper supply.

Biomass Quality and Versatility: Multi-functionality on the Job Site.
Pre-splitting logs with the W820 is more than just a logistical step; it enables a natural drying process that elevates the quality of the resulting biomass. In addition to its primary function, the robust design of the tongs allows them to be used as a conventional loading gripper to handle, sort, and load heavy timber without changing attachments, maximizing the profitability of the base machine.

Fleet Compatibility

This attachment is engineered to enhance the productivity of medium-duty carriers.

• Base Machine: Crawler excavators, wheeled excavators, and medium-sized construction machinery.

• Carrier Weight: Recommended for vehicles between 5 and 12 tons.

Hydraulic Requirements:

• Recommended pump flow: 25 – 60 l/min.
• Recommended operating pressure: 190 – 250 bar.
• Installation: Simple Plug-and-play connection that adapts to any standard quick coupler.

Do you need a specific configuration? Contact us for a custom consultation to optimize your production.
——————————————-
Frequently Asked Questions (FAQ)

1. What is the maximum log diameter the W820 can split? The 820 mm opening of the tongs determines the size of the last split piece, but it does not limit the maximum log diameter that can be processed, as multiple passes can be made on much thicker pieces until they are fully divided.

2. Can the tongs be used to load trucks? Yes. Thanks to its robust construction and geometry, the Woodcracker W820 can perfectly serve as a loading gripper to handle and organize logs on-site or load them into trailers and chippers.

3. How does this tool assist in wood seasoning? By splitting the logs, the inner part is exposed to the air, facilitating a much faster natural drying process than in whole logs. This reduces moisture, improves chip quality, and increases its energy value.

4. What maintenance does the equipment require? It is a low-maintenance attachment. The use of Hardox® steel minimizes blade wear, and the premium bearings only require periodic greasing, which reduces technical downtime in the field.

5. Is it compatible with hydraulic rotators? Absolutely. Optionally, the W820 can be equipped with an infinite rotator, allowing for much more flexible and precise application, attacking the log from any angle.
