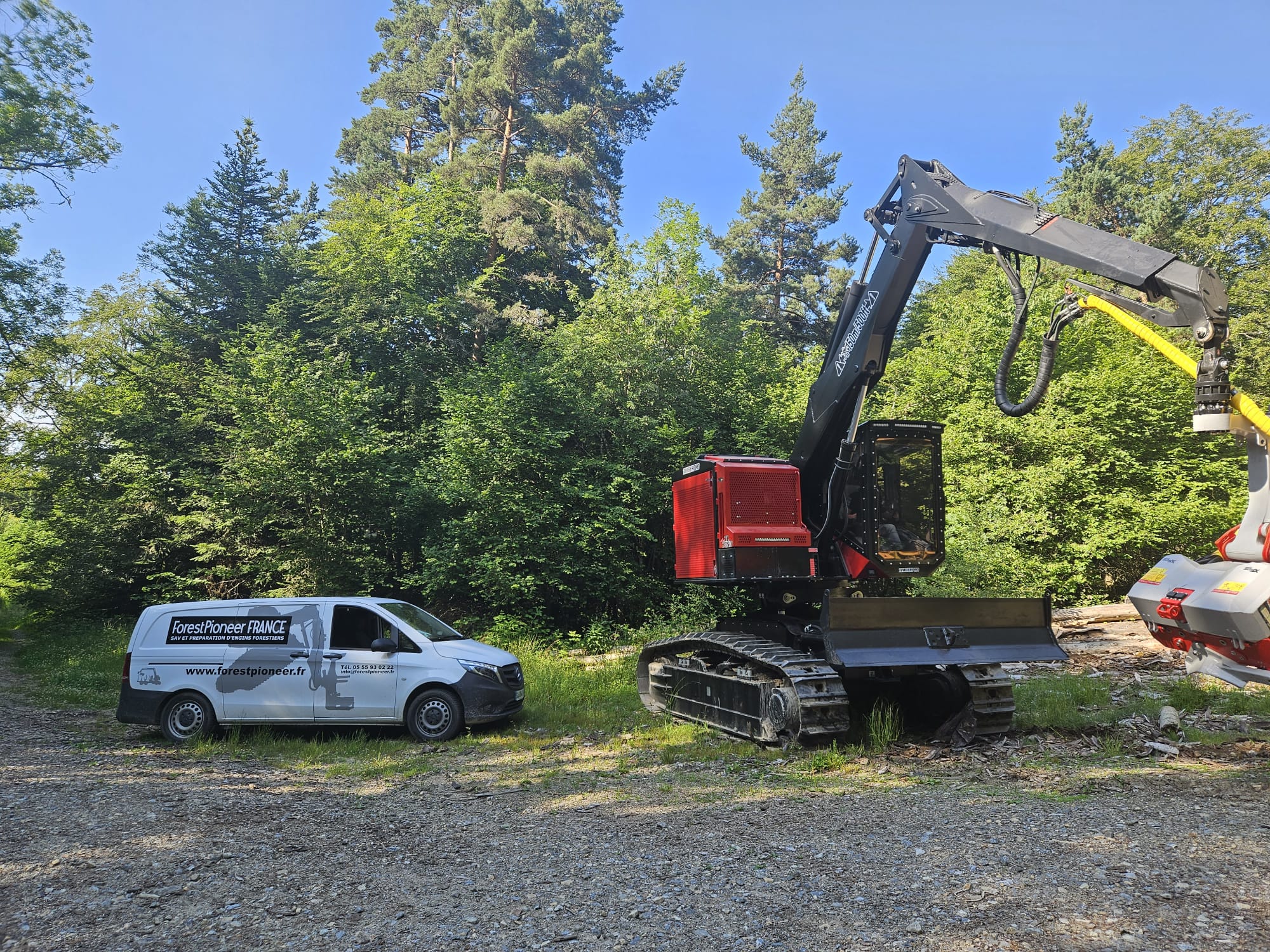

Leveling Feller Buncher / Processor – TimberPro TL735D

Engineering and Design: Structural Strength and Serviceability.
Built to endure the harshest environments, the TL735D utilizes a Caterpillar 330 (D7) frame that ensures a superior service life under severe structural loads. Its design prioritizes profitability through ease of maintenance; the rear Gull-Wing enclosure opens fully to expose the engine and hydraulic components, allowing total access from a secure service platform. Additionally, it comes standard with a 15-gallon ANSUL LVS fire suppression system to protect your investment in the woods.

Power and Performance: Intelligent Leveling and Traction.
At the heart of this machine is its “one-touch” leveling system, capable of compensating 24° forward, 7° rear, and 24° to the sides, allowing the operator to work with a perfectly level cab on steep hillsides. Equipped with a 350 HP Cummins L9 engine (Stage V), it delivers 1,126 lb-ft of torque at low RPMs, providing immediate hydraulic response for high-speed feeding and processing.

Quality and Safety: Total Cab Control.

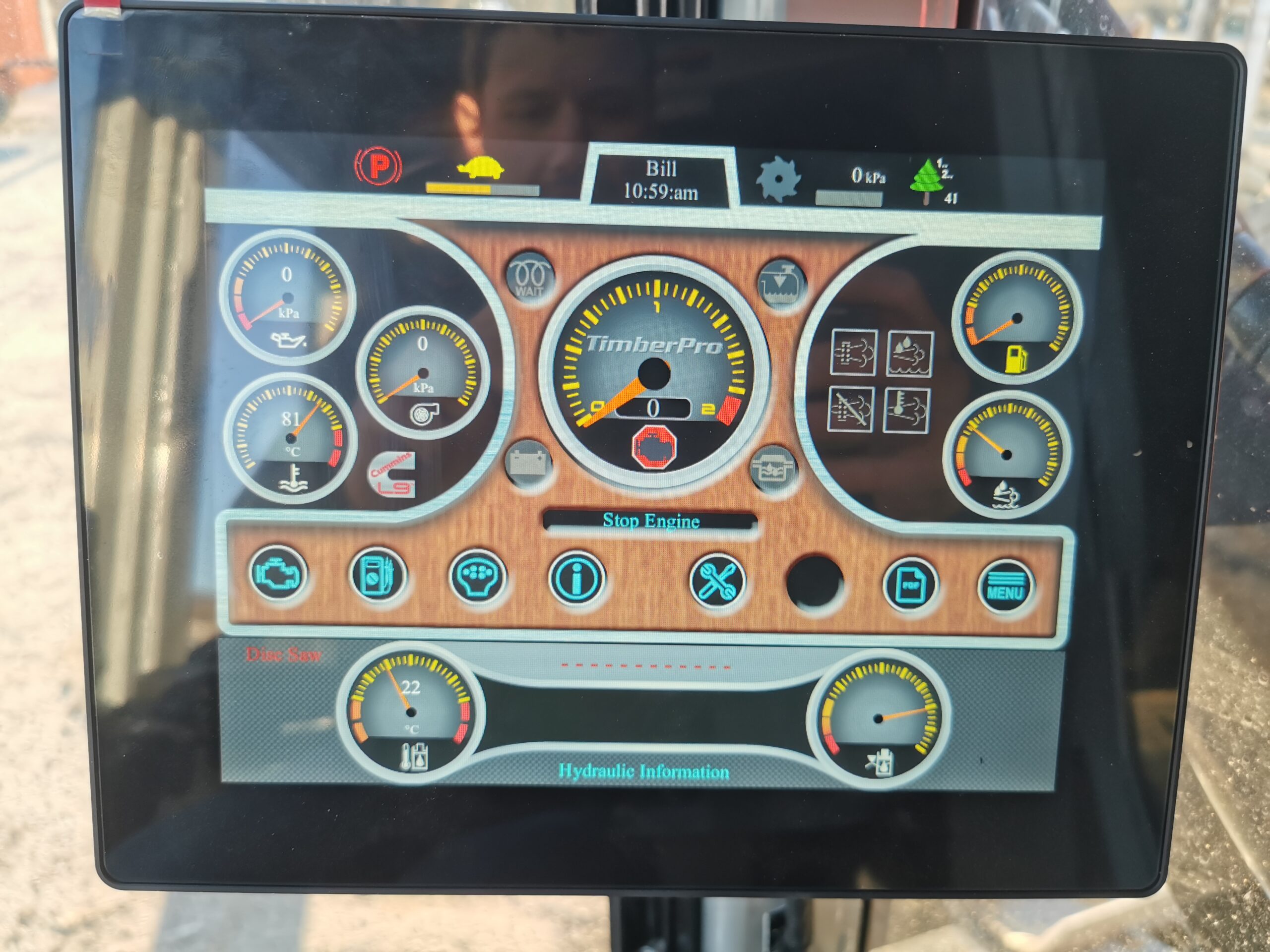

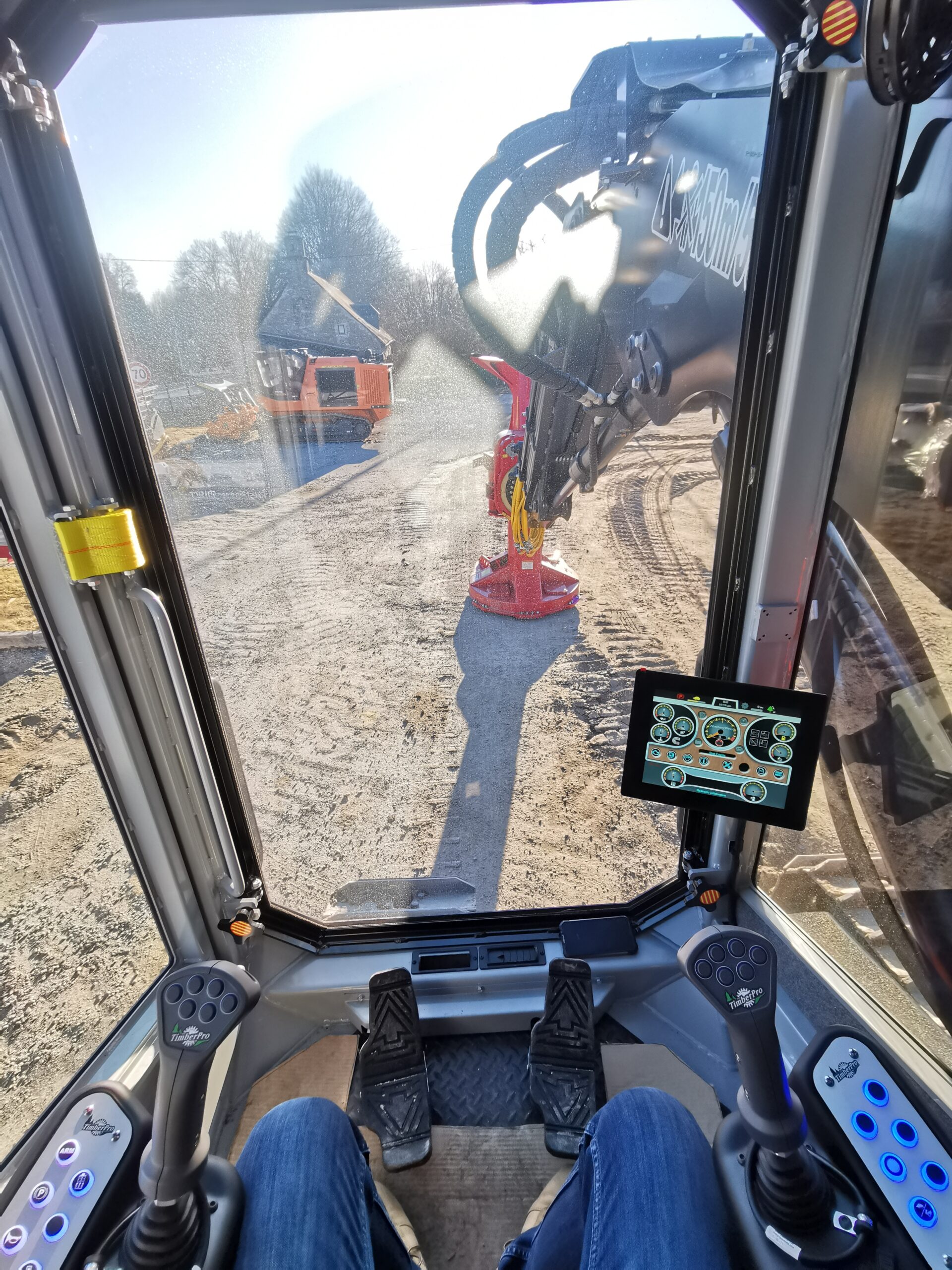

The ROPS/FOPS/OPS certified cab is designed to maximize visibility and comfort, featuring 1.25″ (3.2 cm) polycarbonate front glass and a 10″ touchscreen IQAN MD4 HD control system. The operator enjoys a pressurized environment, digital climate control, and a high-end heated air-ride seat—ideal for the demanding shifts typical of professional logging operations.

Fleet Compatibility: The TimberPro TL735D is a versatile platform designed for:

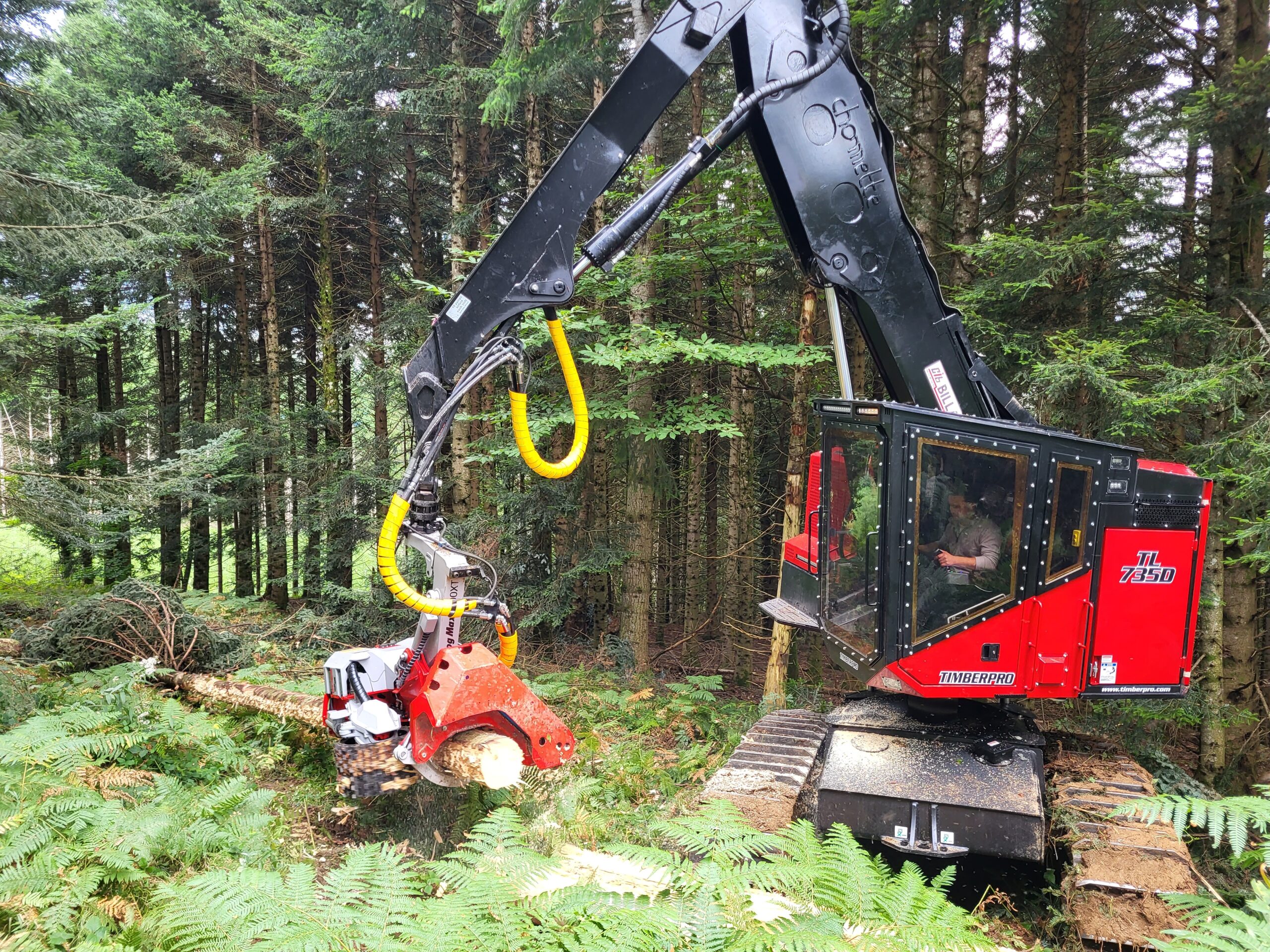

• Large-format harvester heads: 360 l/min implement flow to power the most demanding attachments.

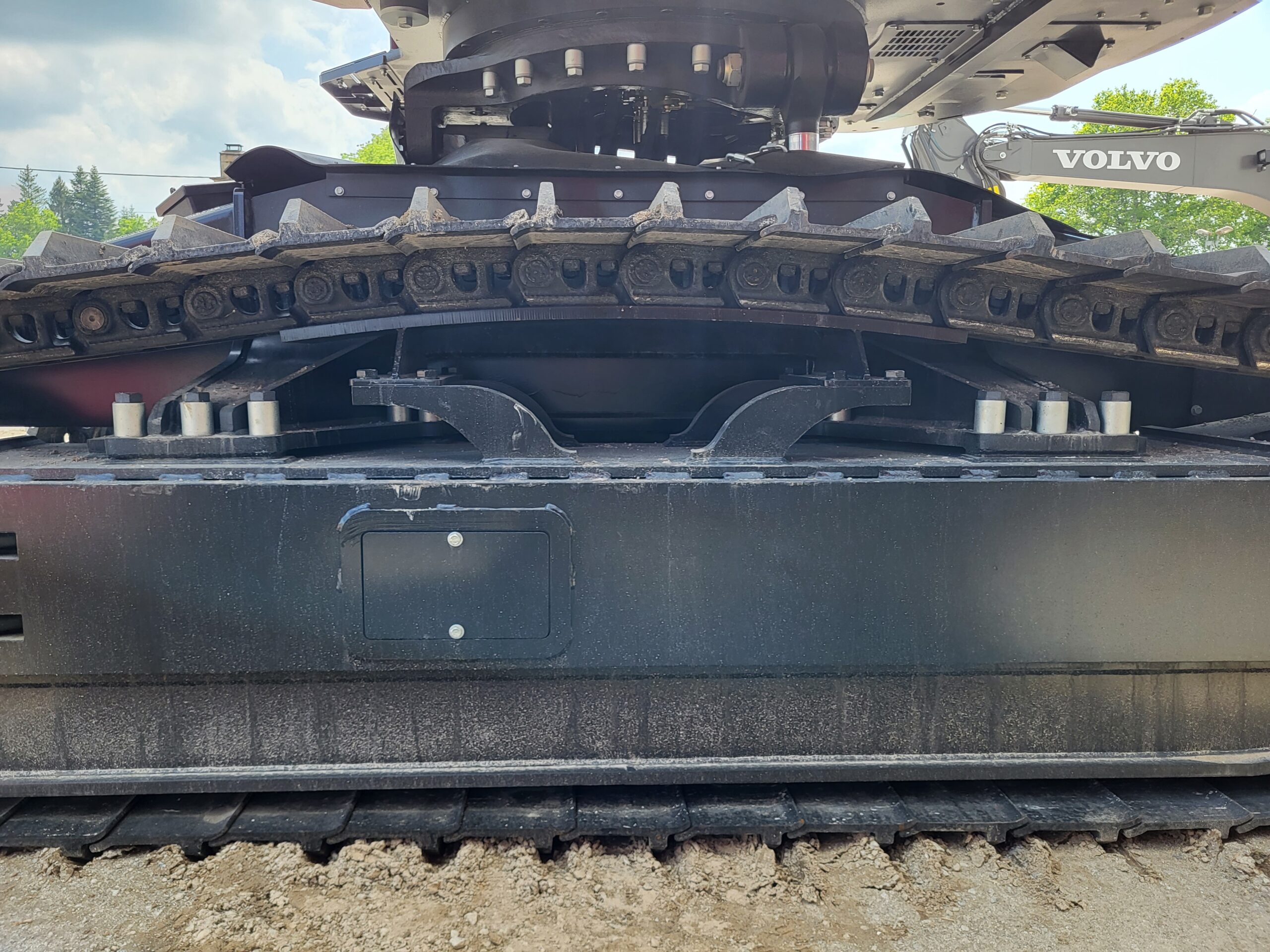

• Undercarriage: 45 track shoes (600 mm standard; 700 mm or 800 mm options available) on a D7 HD frame.

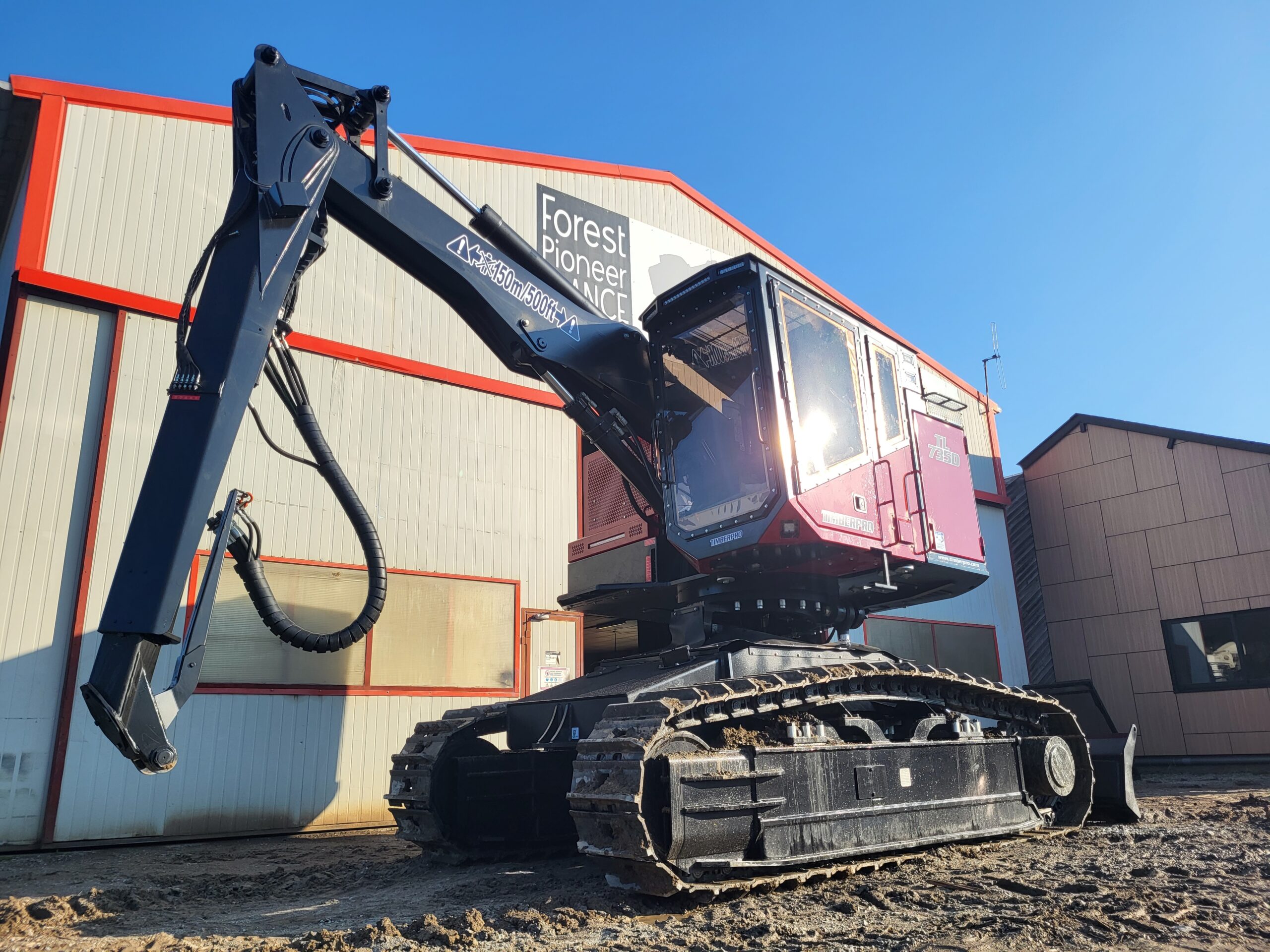

• Boom Configurations: Felling boom with a reach of up to 7.9 m.
• Technical Consulting: We optimize the hydraulic configuration of the TL735D for any AFM head model or other high-performance attachments.



Custom Adaptation: Do you need a specific configuration? Contact us for personalized expert advice to optimize your production.
——————————————–
FAQ – TimberPro TL735D

1. What advantages does the D7 undercarriage offer over the D6? The CAT D7 chassis provides a wider and more robust foundation, increasing tractive effort to 356 kN. This allows the machine to operate with greater stability in very soft ground conditions or extreme slopes.

2. How does the auto-leveling system work? It is a “one-touch” system that automatically adjusts the cab’s position relative to the terrain, significantly reducing operator fatigue and keeping the machine’s center of gravity optimized for safety and performance.

3. Is it suitable for work in areas with strict environmental regulations? Yes, the Cummins L9 engine complies with Stage V / Tier 4 Final regulations, minimizing emissions and allowing access to any regulated forestry exploitation.

4. What safety measures are included for maintenance? It includes a vacuum pump for the hydraulic tank to prevent spills, an electric oil refill pump, and the Gull-Wing enclosure that provides a safe platform for the operator while performing service.

5. What visibility does it offer for night work? It features a full high-intensity LED light package distributed to cover the entire working perimeter and the harvester head area.
