Tilt Adapter – Woodcracker TK

Engineering and Design: Flexibility Without Compromise

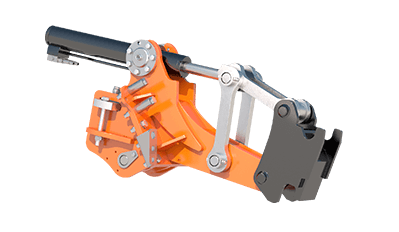

The Woodcracker TK has been engineered to provide a robust and durable solution for machines with rigid booms. Constructed from high-strength Hardox® steel, it guarantees a reduced net weight without sacrificing structural load capacity. To ensure longevity in humid forestry environments, the chassis features a KTL (cathodic dip-priming) treatment and a high-quality powder coating, offering industrial-grade protection against corrosion and wear.

Performance and Kinematics: Precision at Every Angle

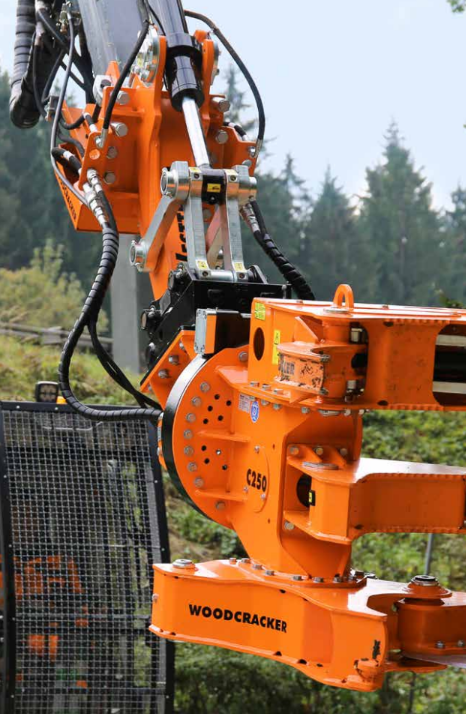

This device enables a massive tilt range—reaching up to 156° in the TK 60 model—facilitating the exact positioning of attachments such as the Woodcracker C, CL series, or forestry mulchers. Its operation is extremely efficient, requiring only one active hydraulic connection from the base machine at 280 bar. This mechanical simplicity translates into a low-maintenance system with high operational availability on the job site.

Applications and Technical Customization

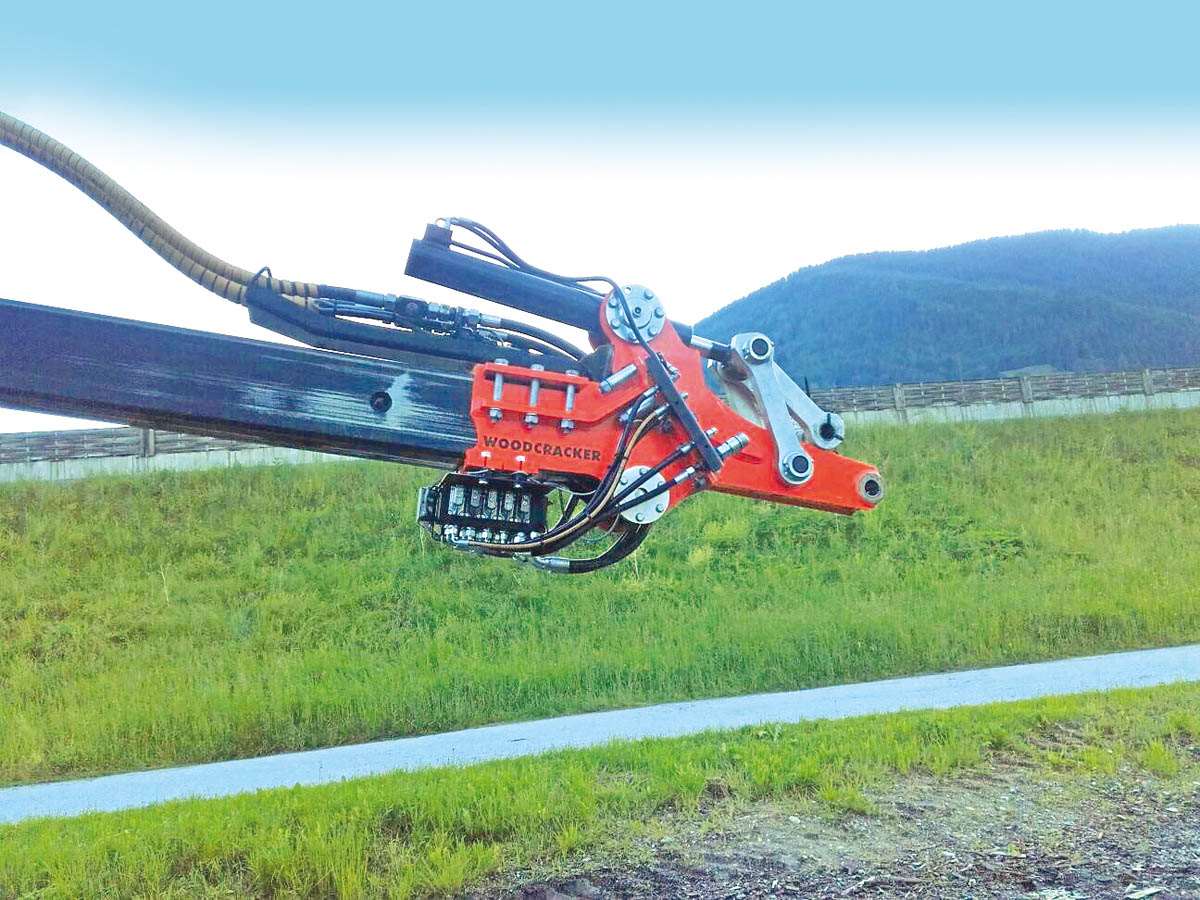

The Woodcracker TK is specifically designed as a connection adapter for harvesters, telehandlers (highly optimized for models like the Sennebogen 718), and material handling excavators.

Important Technical Note: This product is supplied as steelwork. Final mounting is the responsibility of the customer, and the required quick coupler adapter must be managed by the dealer or end-user. Optionally, additional control valves and specific wiring can be requested based on the required configuration.

Fleet Compatibility
The TK series offers flexible mounting options for the most common heavy machinery on the market:

• Carrier Vehicles: Telehandlers, harvesters, and material handlers up to 28 tons.
• Compatible Attachments: Woodcracker felling heads (C, CL, CB series), wood splitters (W series), and third-party forestry mulchers.
• Hydraulic Requirements: 1 single-acting connection, 280 bar pressure, and a flow rate of 40–60 l/min.
• Sennebogen Special: Optimized configuration available for 718-type models.

——————————————

Frequently Asked Questions (FAQ)

1. Can I mount the Woodcracker TK on any telehandler? Yes, it is a universal coupler designed for boom-equipped machines that do not have an OEM tilting mechanism.

2. What is included in the standard supply of the TK series? The certified steel structure is supplied. The mounting, the specific quick-hitch adapter for your machine, and any additional valves must be requested separately or installed by the client.

3. What warranty does the manufacturer provide? It comes with a manufacturer’s warranty of 1,500 operating hours or 1 year on parts (whichever comes first). It is delivered with a CE Certificate and full documentation.

4. Is it compatible with mulchers from other brands? Yes. In addition to Woodcracker equipment, it allows the rigid mounting of other implements such as excavator buckets or third-party forestry mulchers.

5. What maintenance does this system require? It is a low-maintenance attachment. Thanks to its Hardox® construction and simplified hydraulic design, it only requires periodic inspections of the pivot points and hydraulic seals.
