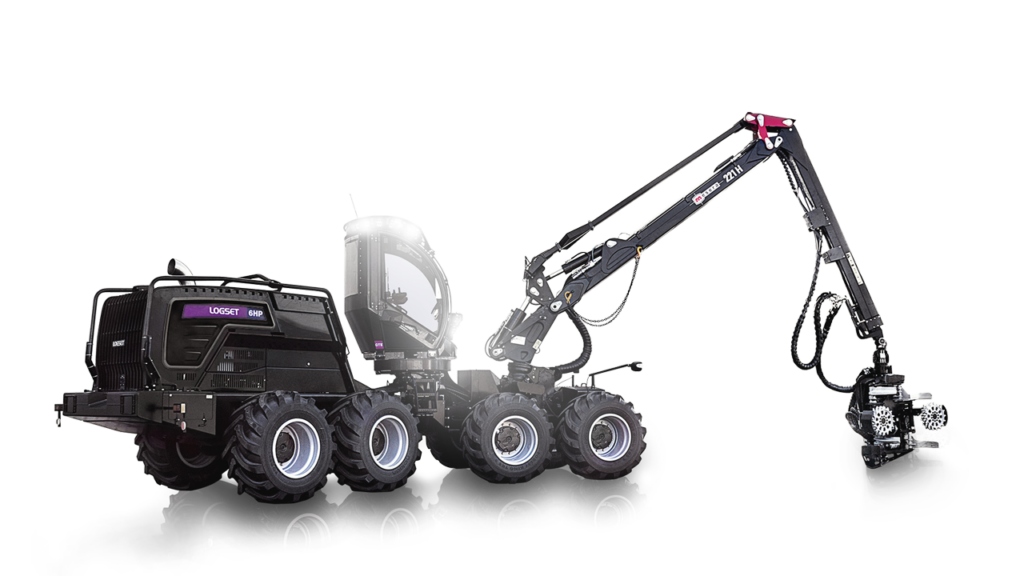

Harvester – LOGSET 6HP GTE with TH65 Harvester Head

Terrain Mastery: 8-Wheel Configuration The key difference in the GTE series lies in its symmetrical 8-wheel configuration with 26.5” tires. This design not only drastically reduces ground pressure in swampy areas or peatlands but also provides an incredibly stable working platform. The tractive force of 171 kN ensures the machine advances effortlessly on steep slopes or in snow, where 6-wheeled models might struggle.

Superior Power for Higher Performance: Under the hood, the 6HP GTE takes a leap in performance compared to the GT version. It features the AGCO Power 74 LFTN (Stage V) engine tuned to 258 hp and a torque of 1130 Nm—13% more than its 6-wheeled counterpart. This extra power, combined with a 495-liter fuel tank and a 305-liter hydraulic tank, allows for extended shifts handling heavy heads without any drop in performance.

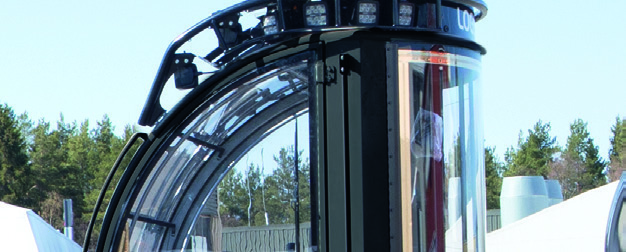

Hydraulics and Precision: The hydraulic system delivers 190 l/min, managed by the intelligent TOC 2 system, ensuring the Mesera 221 H crane operates with simultaneous smoothness and speed. The cabin, aside from its excellent visibility and sound insulation, features the TOC-MD 2 measuring system, offering the operator total control over production and machine diagnostics.

Fleet Compatibility and Configuration
Ideal for contractors needing a versatile machine capable of working year-round, regardless of soil conditions.

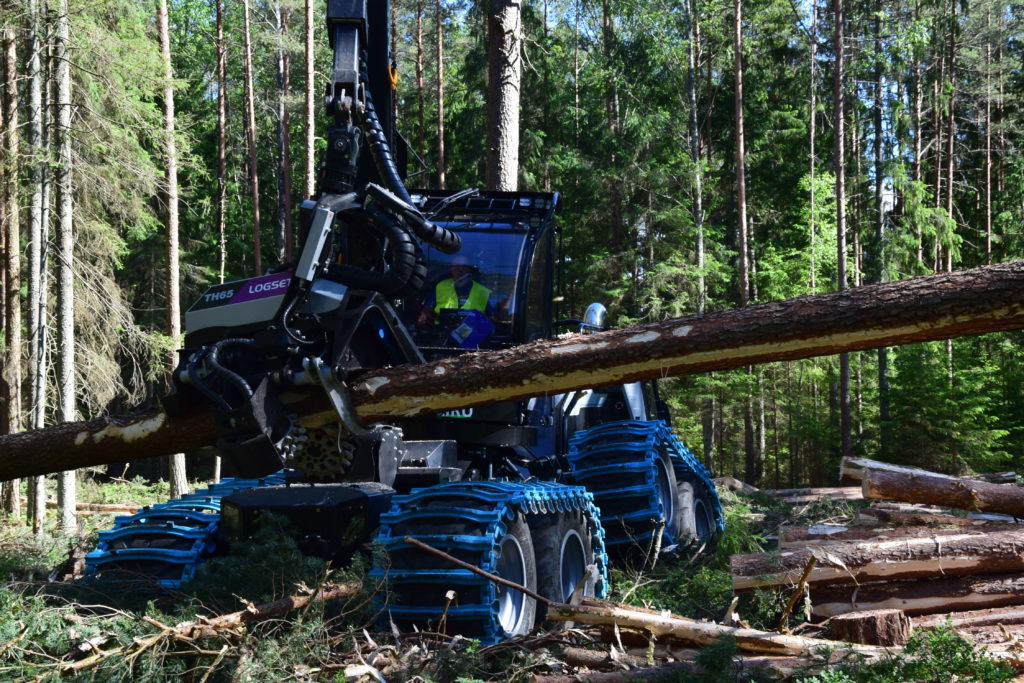

• Head: Optimized for TH65 harvesting head, allowing for the efficient processing of considerable diameter stems.

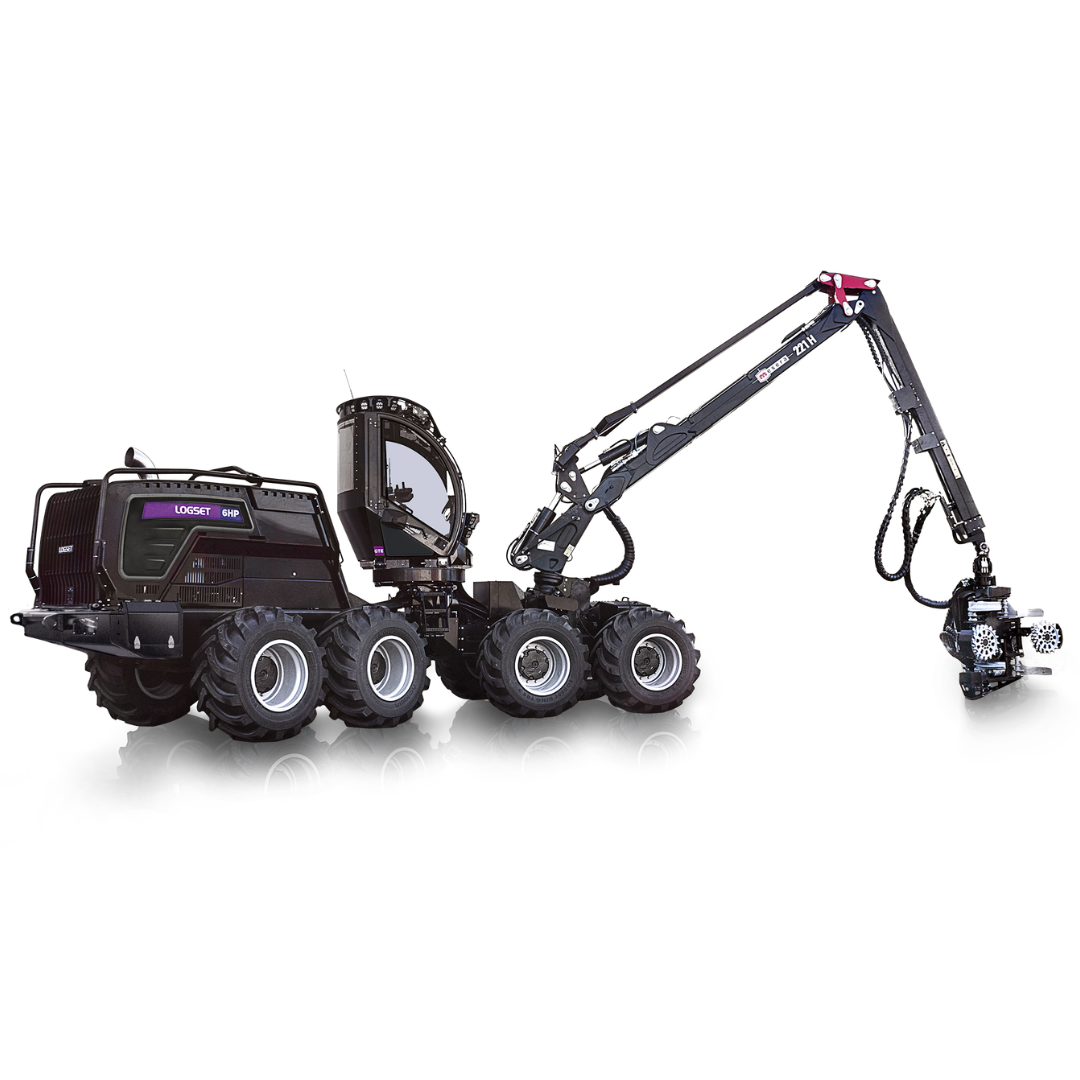

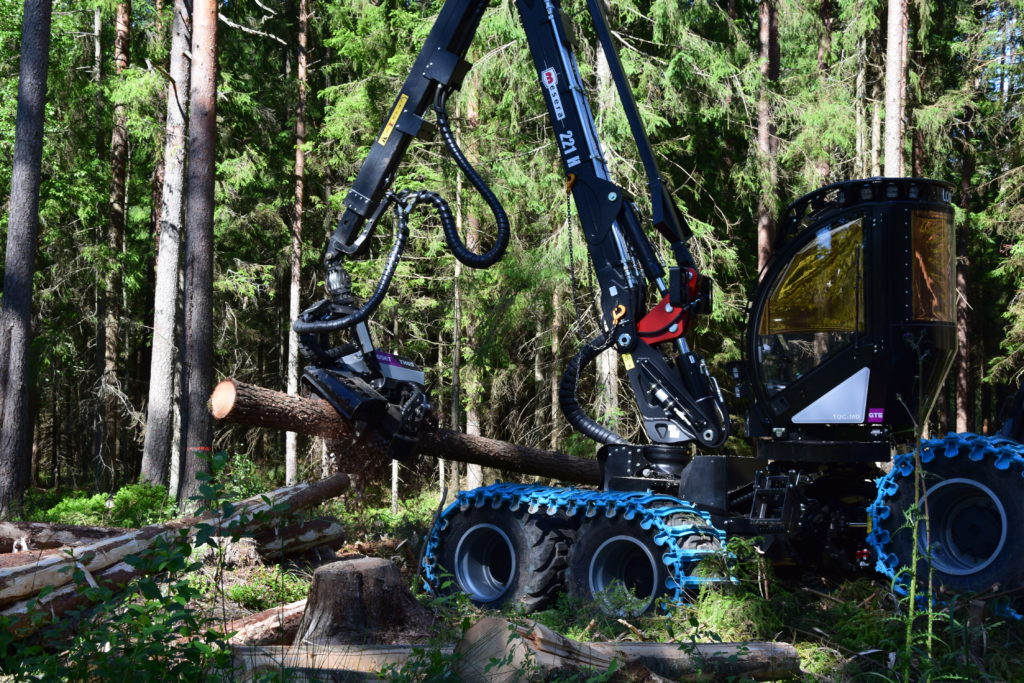

• Crane: Equipped with the robust Mesera 221 H crane, available with reach options of 8.3, 10, and 11.1 meters, and a lifting torque of 188 kNm.

Custom Adaptation: Do you need a specific configuration? Contact us for personalized advice.
———-
Frequently Asked Questions (FAQ)

1. Why choose the 8-wheel GTE version over the 6-wheel GT? The GTE offers superior stability and flotation thanks to its 8 wheels. It is the mandatory choice if you work on terrain with low bearing capacity (mud, peat) or on very steep slopes where extra traction is vital.

2. Is the engine the same as in the 6-wheel version? No, it is more powerful. The 6HP GTE delivers 258 hp (190 kW) and 1130 Nm of torque, compared to the 230 hp of the GT, to compensate for the extra weight and improve hauling and processing capacity.

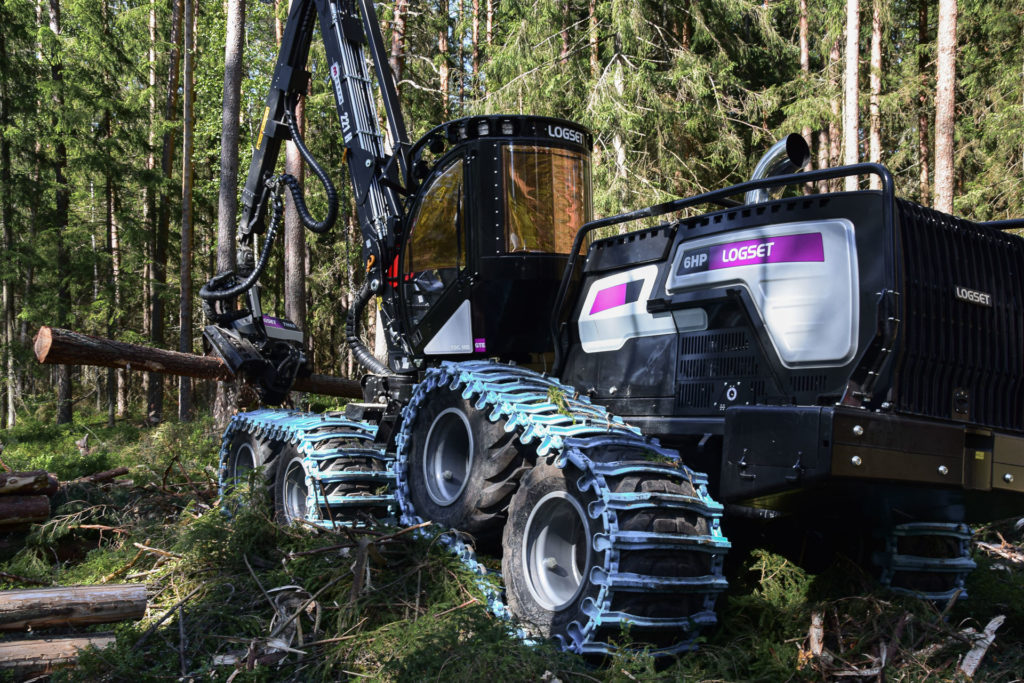

3. What tire and track options does it support? It comes standard with 710/45-26.5 tires, but supports 600mm or 800mm width options. Being an 8-wheeler, it allows for the installation of bogie tracks on both the front and rear bogies for maximum flotation.

4. Is it suitable for standard lowbed transport? With a weight starting at 21 tons and its 8-wheel configuration, it requires specific heavy machinery transport, but it remains within reasonable dimensions for its power class.

5. What is the maximum crane reach? The Mesera 221 H crane can be configured with a reach of up to 11.1 meters, ideal for minimizing machine movements and protecting the forest floor.
