Felling Head – Westtech Woodcracker CS780

Engineering and Design

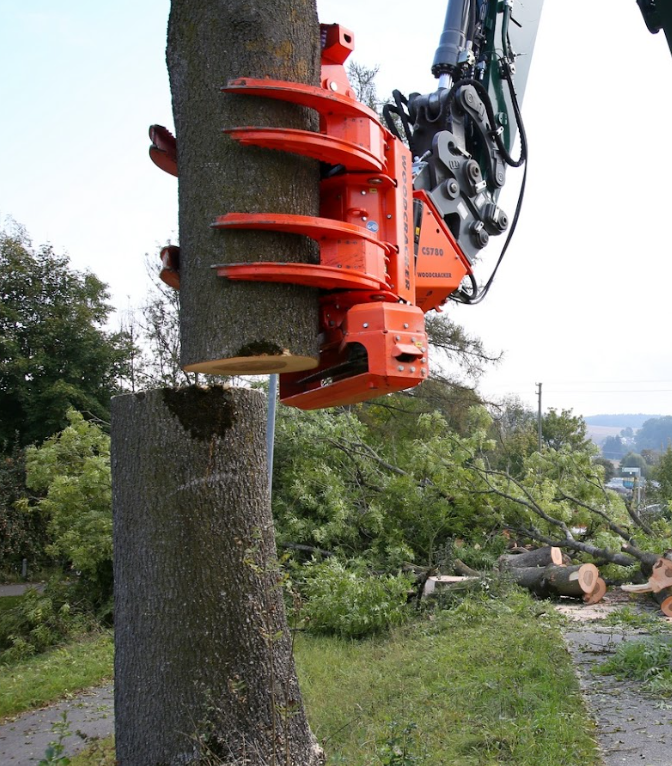

Built to the most demanding forestry engineering standards. The Woodcracker CS780 is constructed entirely from high-strength Hardox® steel and features cathodic dip coating (KTL) and powder coating, ensuring extreme durability against corrosion and wear. Its rigid mount design allows for the vertical manipulation and dismantling of tree sections, preventing damage to the surroundings—making it the ultimate tool for safety felling and infrastructure maintenance.

Cutting Power and Safety

Equipped with a powerful saw unit capable of felling trunks up to 750 mm, this head ensures a clean, fast cut. The grapple features a maximum opening of 1,600 mm, providing a firm and stable grip even on heavy or irregular timber. Thanks to its integrated Tiltator system, the operator has full control over the orientation of the piece, maximizing safety in every maneuver.

Forest Versatility

This head excels not only in felling large specimens but also in the rapid processing of downed timber and operations on difficult terrain, slopes, or marshy areas. It is the ideal solution for harvesting thick hardwoods where conventional heads reach their limit.

Fleet Compatibility

The Westtech Woodcracker CS780 is designed for seamless integration with a wide range of machinery:

Recommended base machine: 20 – 28-ton crawler or wheeled excavators.

Hydraulic requirements:

• Double-acting line: 65-110 l/min (230-280 bar).

• Pressureless return line: 180 l/min.

• Tiltator flow: 50-70 l/min.


Custom adaptation: Specific solutions available. Contact us for more details.

—————————————–
Frequently Asked Questions (FAQ)

1. What type of work is the CS780 specifically recommended for? It is ideal for safety felling along roadsides, in urban areas, or near power lines, as it allows for the vertical extraction of tree sections without them falling uncontrollably to the ground.

2. What maintenance does this head require? Thanks to its Hardox® steel construction and KTL coating, maintenance is low. It requires regular greasing of pivot points and checking the saw chain sharpness to ensure optimal performance.

3. Is it compatible with my 25-ton excavator? Yes, the CS780 is perfectly sized for machines between 20 and 28 tons, provided the hydraulic flow requirements are met.

4. What warranty does Westtech offer on this equipment? The manufacturer offers a warranty of 1,500 working hours or 1 year on parts (whichever comes first), securing your investment against manufacturing defects.

5. Is it suitable for working with hardwoods? Absolutely. Its gripping force and saw system are designed for stands of pine, eucalyptus, and hardwoods (oak, beech).
