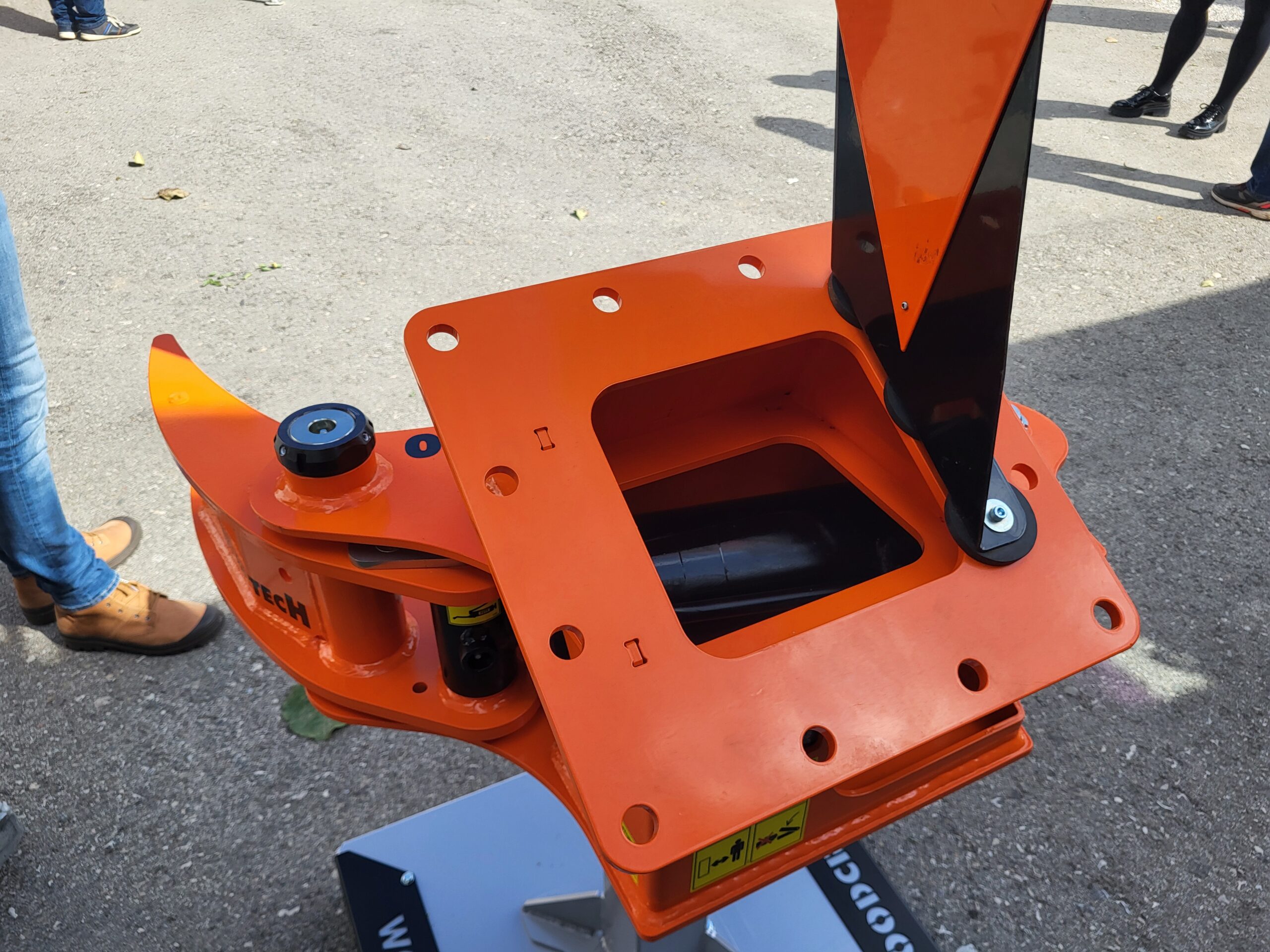

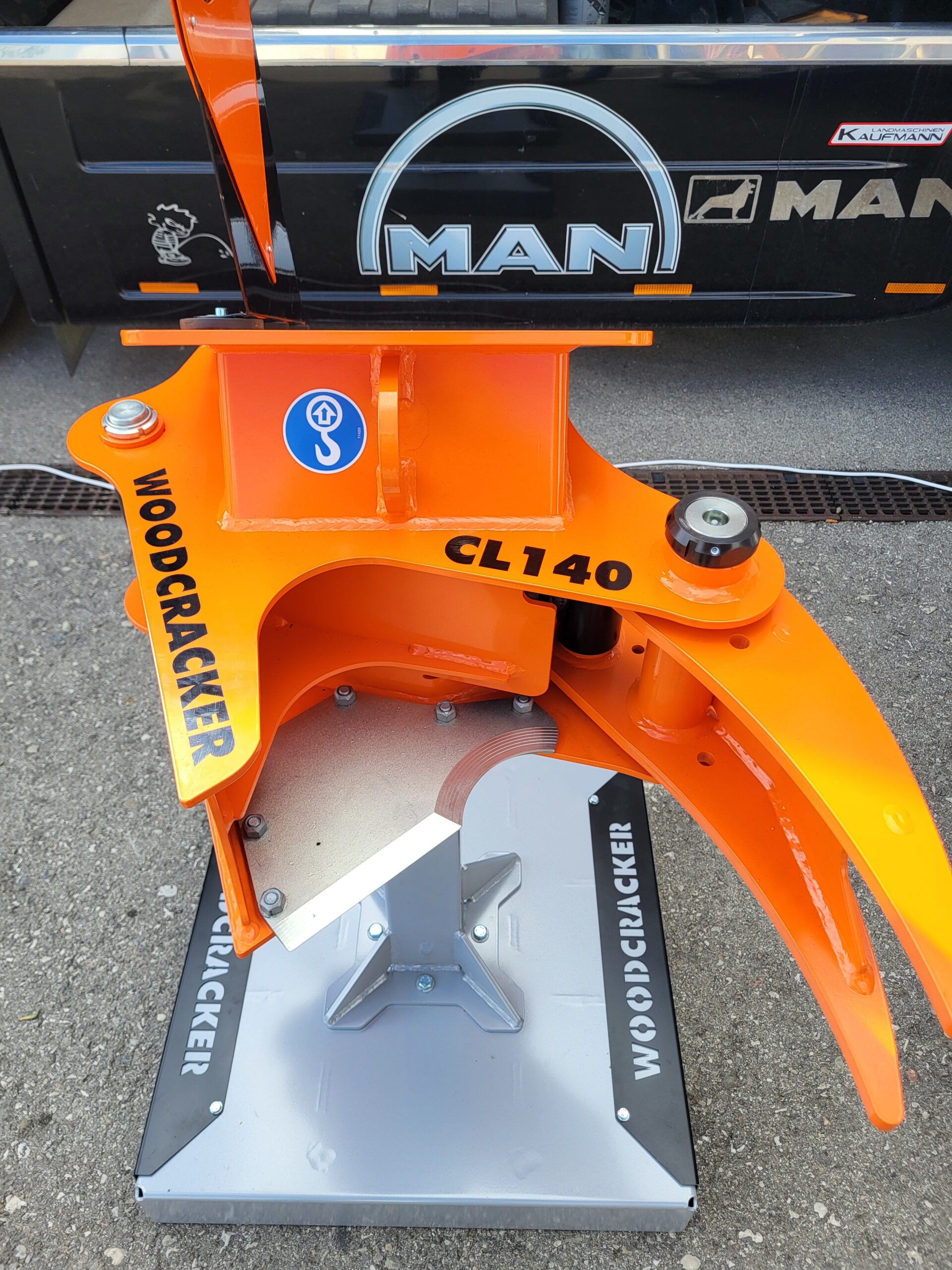

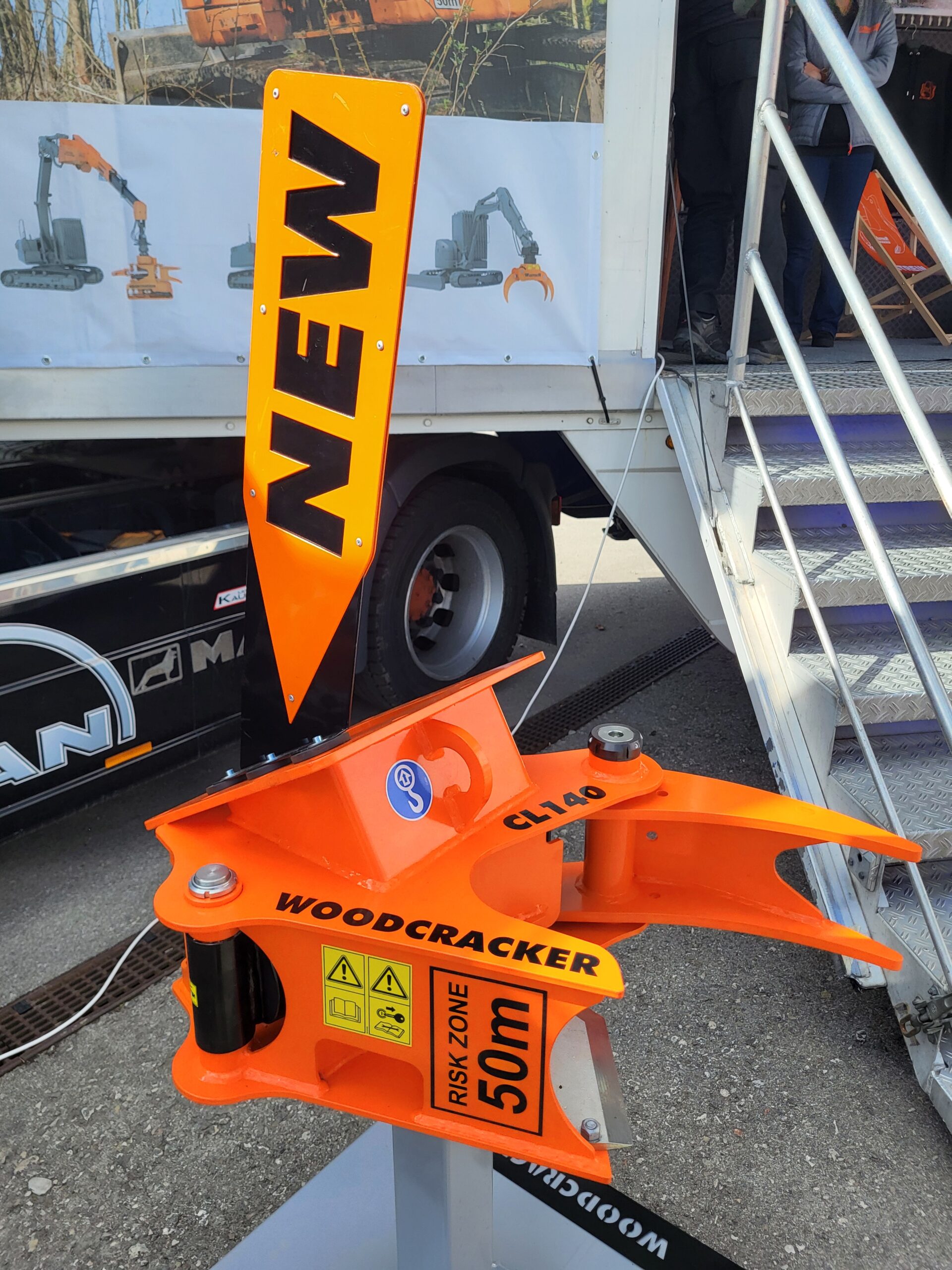

Tree Shear – Woodcracker CL140

• Mini-excavators and compact excavators (operating weight 1 to 4 t).
• Telehandlers, front loaders, and wheel loaders.

• Recommended oil flow (main circuit): 20 – 60 l/min
• Operating pressure: 200 bar

———————

FAQ (Frequently Asked Questions)

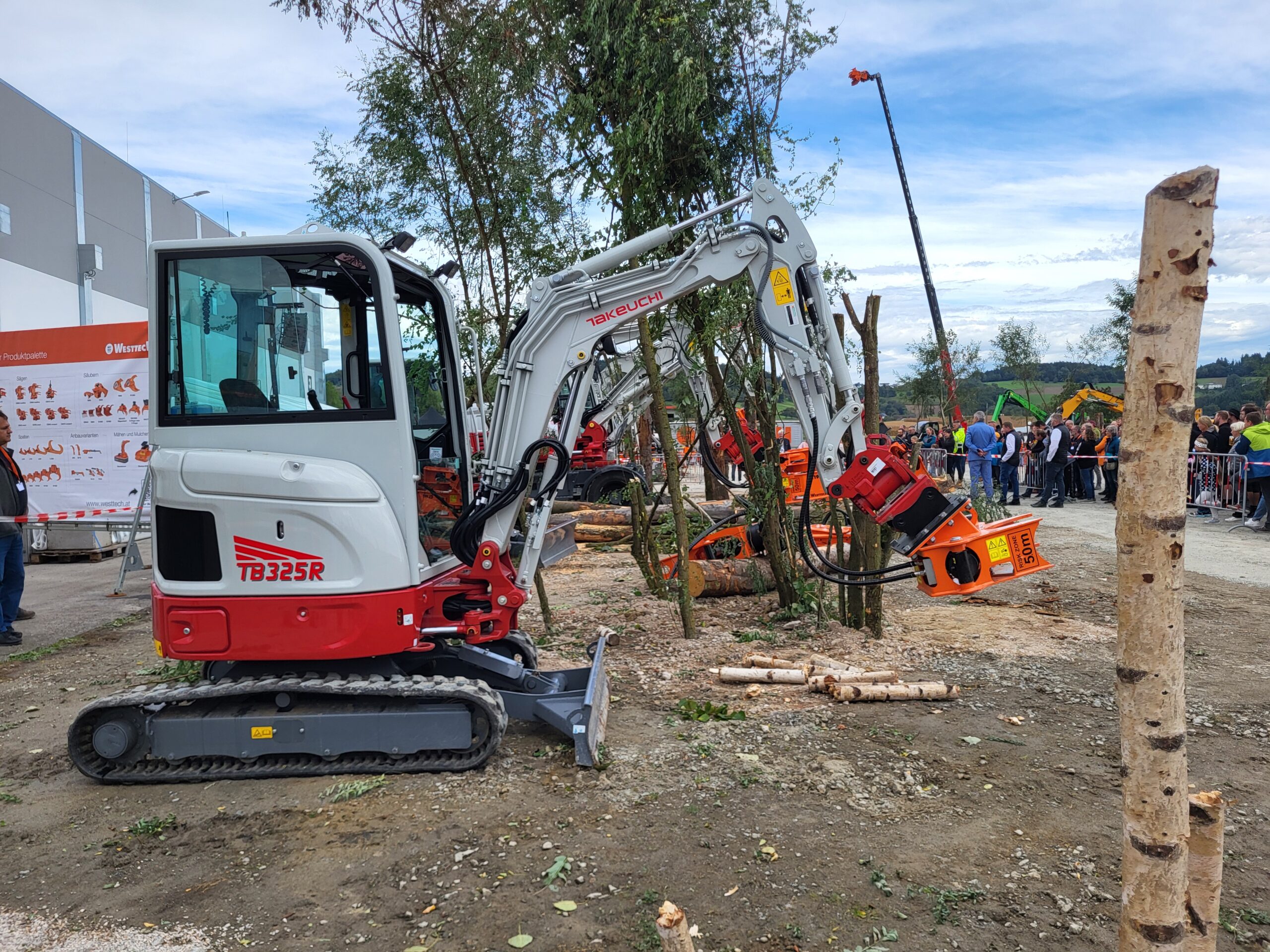

1- What carrier vehicles are compatible with the Woodcracker CL140?

The CL140 is specially engineered for mini-excavators and carriers ranging from 1 to 4 tons, and can also be easily fitted onto telehandlers, farm loaders, and compact wheel loaders.

2- What is the maximum trunk diameter the Woodcracker CL140 can cut?

It can slice through soft wood up to 180 mm in diameter and hard wood or hardwoods up to 150 mm.

3- What hydraulic oil flow does my machine need to operate this shear?

Your carrier vehicle needs to supply a main circuit hydraulic flow between 20 and 60 liters per minute at a recommended operating pressure of 200 bar.

4- What maintenance is required for the CL140 blade?

Maintenance is minimal. The cutting blade is built from high-strength material resistant to dirt; it can be quickly resharpened on-site and easily replaced when necessary.

5- What are the ideal applications for this felling head?

It is perfect for fast thinning, harvesting short-rotation plantations, riverbank and roadside maintenance, land clearing, and general agricultural forestry work on slopes or marshy terrain.
