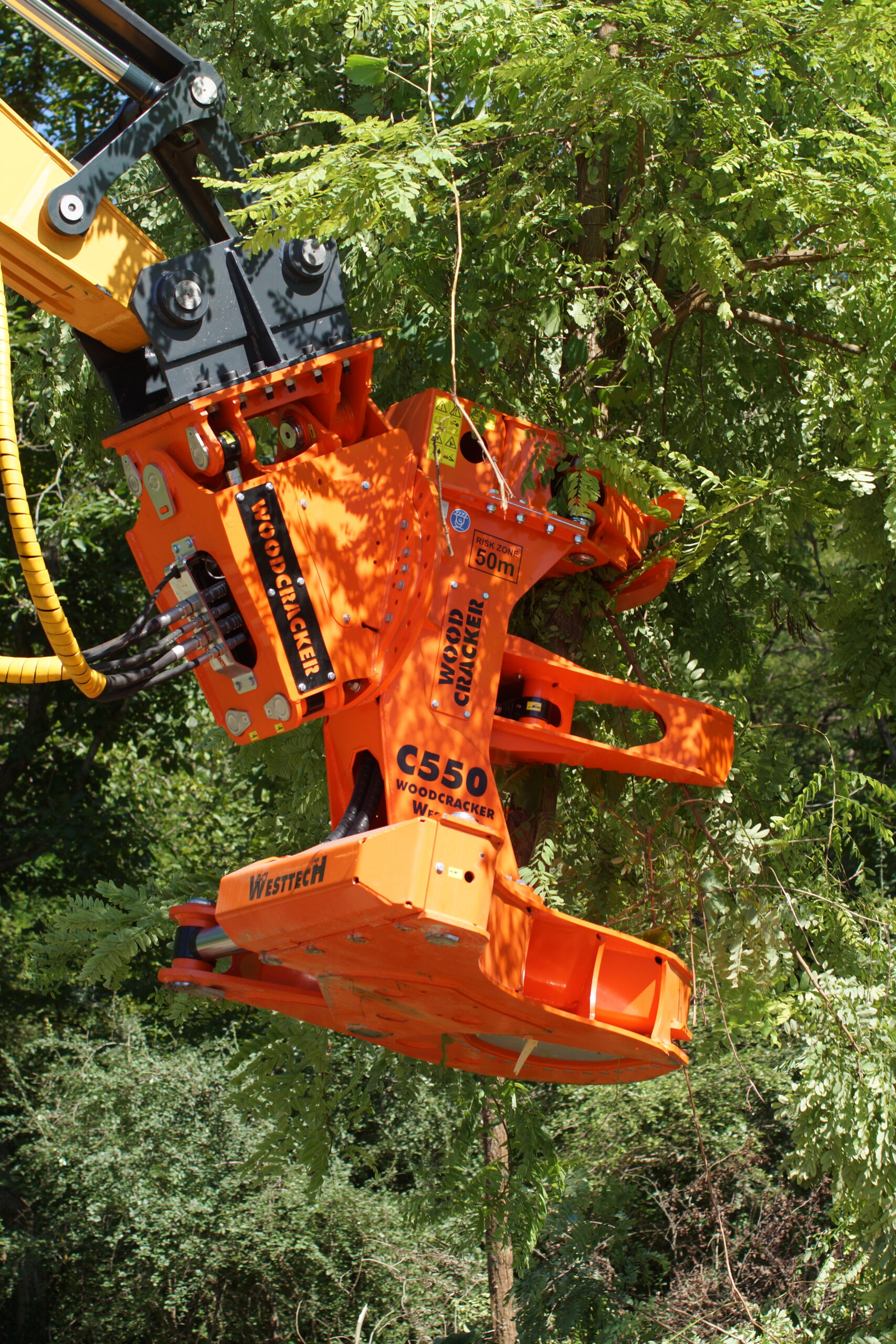

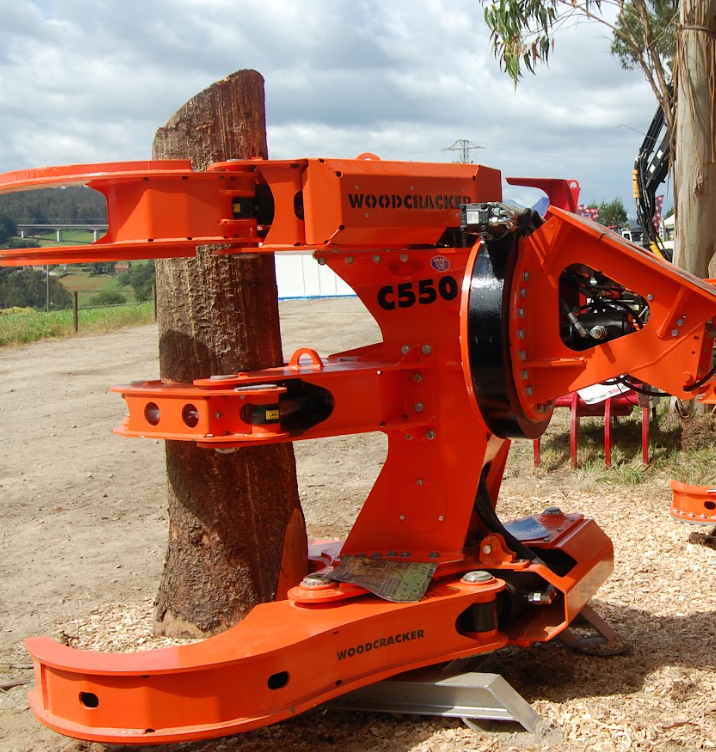

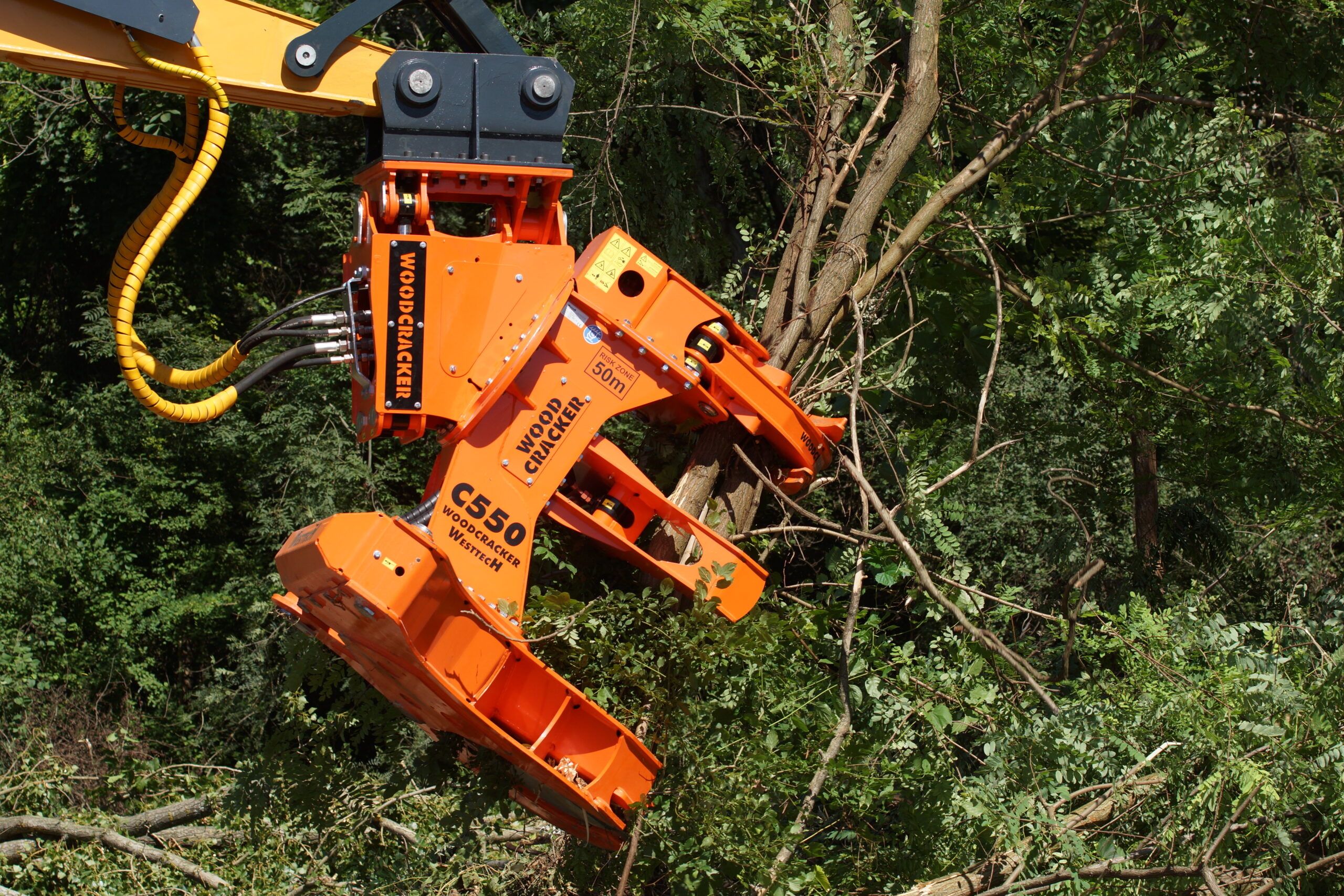

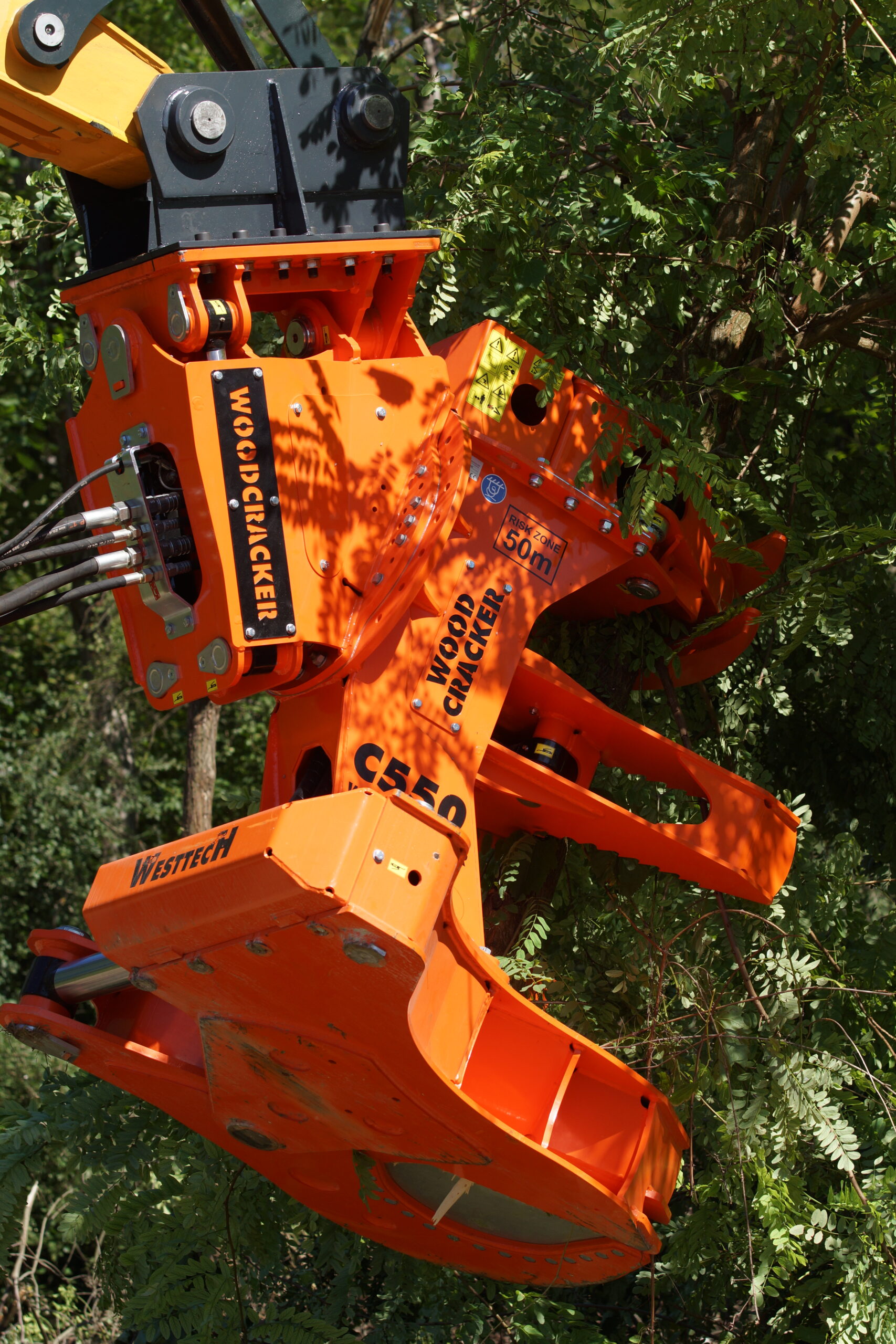

Tree Shear – Woodcracker C550

Engineering and Design: Extreme Durability for the Professional.
The Woodcracker C550 is manufactured entirely from high-strength Hardox® steel, ensuring unprecedented durability against mechanical wear. The design features sophisticated ergonomic geometry in the midsection and fully protected components, including cylinders with end-position damping. To withstand humid environments and extreme weather, the entire structure undergoes a KTL (cathodic dip-priming) treatment followed by a premium powder coating, providing top-tier corrosion protection.

Performance: Total Control with Multigrip.
Setting it apart from other heads, the C550 comes standard with the Multigrip controller—an intelligent hydraulic block that manages the required power independently of the base machine’s flow. This system ensures a safe work cycle: during the cut, the powerful, synchronously closing gripper holds the trunk firmly before the blade engages, allowing for vertical tree removal to protect the surrounding area. Additionally, the Autospeed option accelerates the cutting cycle in smaller timber, significantly increasing operational efficiency.

Cutting Quality and Versatility: Patented Technology.
The cutting unit features a high-strength blade with a patented fastening system that facilitates rapid maintenance and simple resharpening. An automatic cleaning comb ensures the blade always operates free of obstructions. Thanks to its “Plug & Play” design, the C550 requires only 5 hydraulic connections to manage all functions, including advanced options like the Power-Tiltator, which delivers double the tilt torque for handling heavy sections.

Fleet Compatibility

This head is engineered to maximize the performance of heavy-duty carrier machinery.

• Base Machine: Large crawler excavators and heavy-duty forestry harvesters.
• Carrier Weight: Optimized for vehicles between 24 and 30 tons.

Hydraulic Requirements:

• Main pump flow: 100 – 190 l/min.

• Auxiliary circuit flow: 50 – 70 l/min.

• Operating pressure: 280 bar.

Do you need a specific configuration? Contact us for a custom consultation to optimize your production.
—————————————-
Frequently Asked Questions (FAQ)

1. What is the standard Multigrip system? It is a hydraulic controller that synchronizes the grip and the cut. It ensures the tree is always securely held before the blade starts cutting and allows the blade to open first when depositing, ensuring risk-free handling.

2. What is the benefit of the collector (accumulator) on the C550? The collector allows the operator to harvest and group several smaller stems in a single cycle, drastically optimizing time in short-rotation plantations or large-scale thinning operations.

3. What advantage does the Power-Tiltator offer for this model? When processing trees up to 600 mm, the weight is substantial. The Power-Tiltator provides double the torque at the same speed, allowing for the rotation and positioning of heavy logs with total control and less strain on the base machine.

4. Is blade maintenance difficult? Not at all. The high-strength blade is designed for easy resharpening. Its patented fastening system allows for simple replacement, minimizing technical downtime.

5. Can it be installed on any excavator brand? Yes, it is compatible with all standard excavators on the market. Thanks to its optimized design, it only requires 5 hydraulic connections to operate all functions, including optional accessories.
