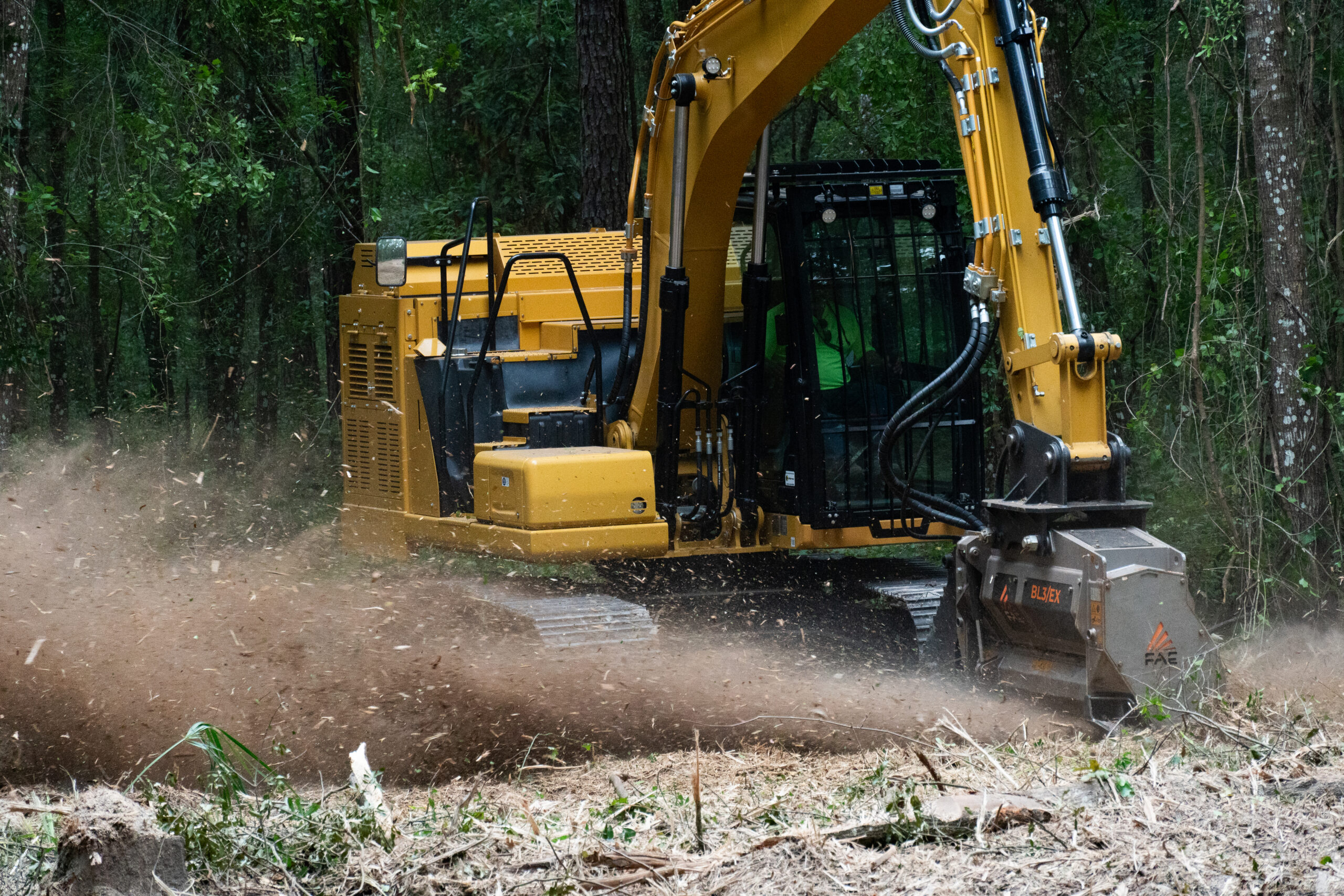

Forestry Mulcher Head for Excavators – FAE BL3/EX-125 VT

Engineering and Design: “Dust-proof” protection and extreme durability.
The BL3/EX series features a reinforced frame and internal body with dust-proof protection, designed to shield vital mechanical components from the airborne particles inherent in forestry operations. The hydraulic motor is fully integrated into the structure to prevent damage from side impacts. Power is transmitted via Poly-Chain® belts, ensuring smooth energy transfer, reduced maintenance, and a significantly longer service life compared to conventional belt systems.

Performance and Torque: VT (Variable Torque) Technology.
This head is equipped with a 110/60 cc Variable Torque (VT) hydraulic piston motor. This intelligent system significantly boosts mulcher performance by automatically increasing motor torque when the rotor encounters resistance, minimizing stalling and optimizing the base excavator’s fuel consumption. It is designed to operate with flow rates of 120-210 L/min at pressures up to 350 bar.

Mulching Quality: Bite Limiter and Spike PRO counter-blades.
The rotor features proprietary Bite Limiter technology: special steel profiles that limit the blades’ cutting depth, reducing power demand and maintaining a constant rotation speed even in hardwoods. For a superior finish, optional Spike PRO counter-blades can be integrated to ensure a fine and homogeneous granulometry. Additionally, the forged steel BL blades are resharpenable, significantly lowering long-term operating costs.

Fleet Compatibility

• This mulcher is designed to maximize the performance of medium-sized base machines.
• Compatible excavators: Recommended base machines from 14 to 20 tons.
• Hydraulic requirements: Flow rate of 120-210 L/min and operating pressure of 180-350 bar.
• Advanced systems: Fully compatible with the Sonic System, which automatically calibrates hydraulic parameters, improving overall performance by up to 30%.



Customized Adaptation: Do you need a specific configuration for your region? Available with specialized technical support for pine, eucalyptus, and hardwood forest stands.
————————————–
Frequently Asked Questions (FAQ)

1. What is the purpose of Bite Limiter technology on the BL3/EX-125? It uses special steel profiles to prevent the teeth from “biting” too much wood at once. This allows the head to process 20 cm logs without overloading the excavator’s engine, maintaining high rotation speeds and performance.

2. What advantages does the VT (Variable Torque) motor offer? This variable displacement motor automatically increases torque when the rotor detects a higher load. This prevents stalling and enables a much faster recovery of working speed during intensive mulching.

3. Can the blades on this head be resharpened? Yes, the BL blades are manufactured from heat-treated forged steel, allowing them to be resharpened to extend their service life and reduce operational costs.

4. What is the Sonic System and why is it recommended? It is an optional intelligent system that autonomously configures the mulcher’s hydraulic parameters to match the carrier. It ensures flexible installation and a performance boost of up to 30%.

5. What additional equipment options are available? It can be equipped with a hydraulic thumb for material handling, an adjustable rear deflector for increased safety, and Spike PRO counter-blades for a finer mulch finish.
