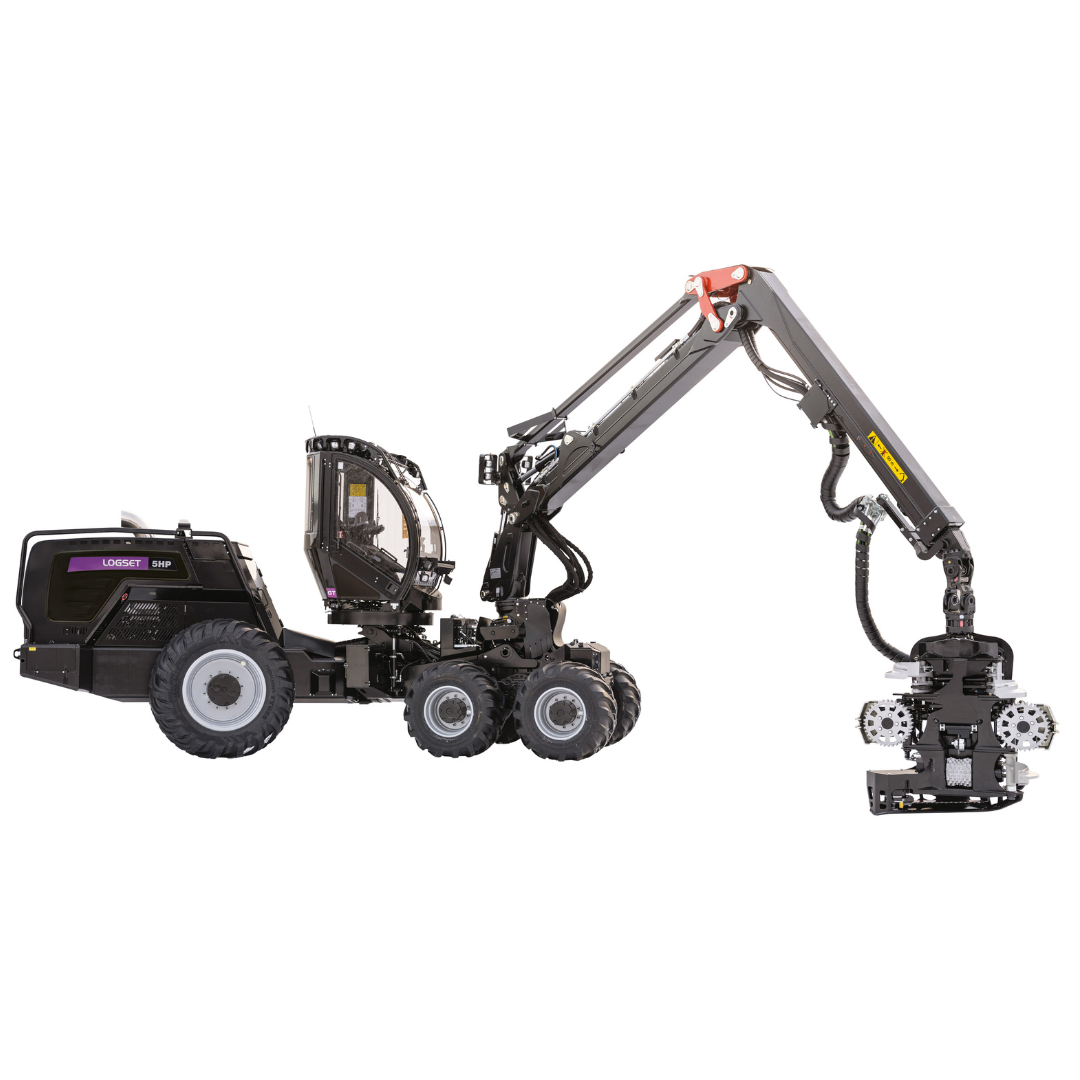

Harvester – LOGSET 5HP GT

Compact Design and Maneuverability: The Logset 5HP GT redefines efficiency in thinning operations. Its 6-wheel chassis and compact footprint allow for tight turning radiuses and fluid movement between tree lines without damaging the soil or the residual stand. Equipped with 22.5” front tires and 34” rear tires, it guarantees exceptional stability and low ground pressure, which is vital for sustainable forestry on sensitive terrain.

Hydraulic Power and Engine: Under the hood roars an AGCO Power 74 LFTN 7.4-liter engine (Stage V), deploying 230 hp (169 kW) and a torque of 1000 Nm at 1500 rpm. This generous configuration for its size ensures the hydraulic system—delivering a flow of 190 l/min—never runs short, allowing for the simultaneous operation of the crane and the harvesting head with amazing fluidity.

Operator Environment and Technology: The cabin of the 5HP GT is not just a workspace; it is a high-tech control center. It features the TOC 2 control system, renowned for its precision and ease of adjustment, along with class-leading panoramic visibility. Safety is guaranteed with a fully certified cabin, designed to minimize fatigue during long shifts.

Fleet Compatibility and Configuration
This harvester is a high-performance standalone unit, ideal for working in tandem with medium-class forwarders.

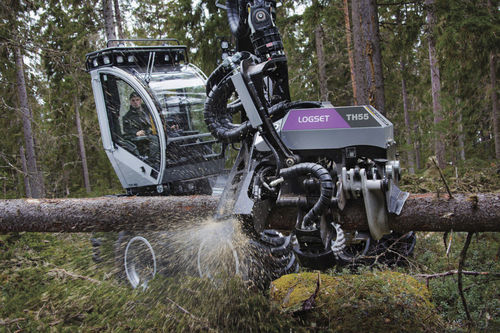

• Compatible Heads: Optimized for Logset TH45, TH55, and TH65 harvesting heads, covering everything from early thinning to light final felling.
• Crane: Equipped with the robust Mesera 221 H crane, available with reach options of 8.3, 10, and 11 meters, offering a gross lifting torque of 188 kNm to handle heavy timber with authority.

Custom Adaptation: Do you need a specific configuration? Contact us for personalized advice.
—————-
Frequently Asked Questions (FAQ)

1. Is the Logset 5HP GT suitable for final felling or only thinning? While it shines in thinning due to its compact size, its 6-cylinder engine and compatibility with the TH65 head allow it to perform final felling (regeneration harvesting) in medium-diameter stands with total competence.

2. What advantage does the TOC 2 system offer in this machine? The TOC 2 (Total Operation Control) system optimizes fuel injection and hydraulic flow in real-time. This translates into ultra-smooth crane movements and drastically reduced fuel consumption.

3. What tire options are available for wet terrain? It comes standard with 710/40-22.5 front and 710/55-34 rear tires, but it supports 600mm options to reduce total width, or high-flotation configurations for areas with heavy rainfall and mud.

4. Is it compatible with digital forestry management and mapping systems? Yes, the integrated TOC-MD 2 measuring system allows for cutting file management and is compatible with standard data transfer protocols for digital production control.

5. How is the maintenance on the AGCO Power engine? Highly accessible. Logset designs its chassis with the mechanic in mind; all daily service points and AGCO engine filters are positioned for quick access, minimizing downtime.
