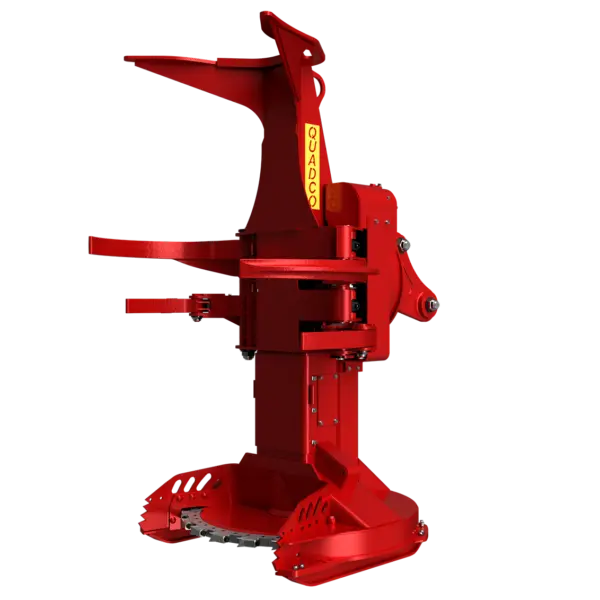

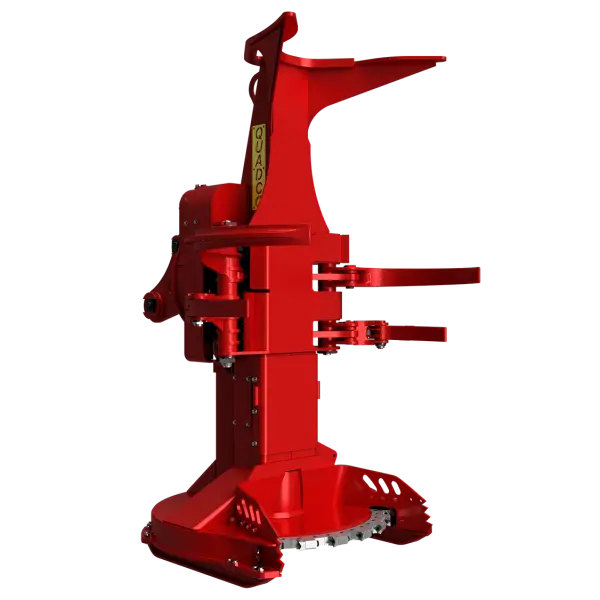

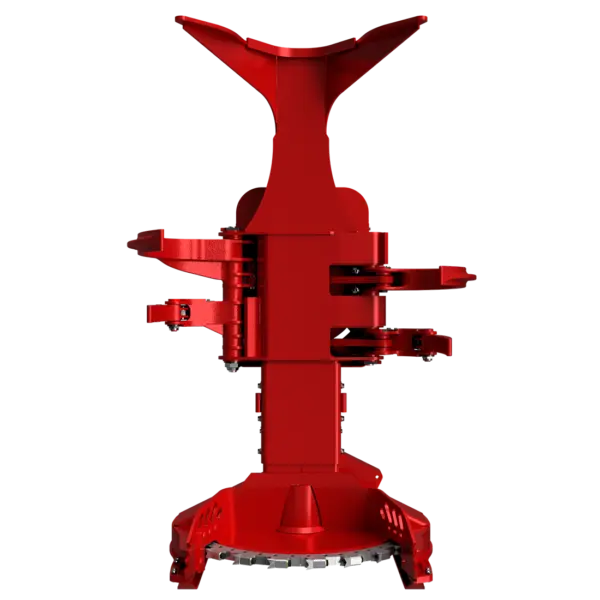

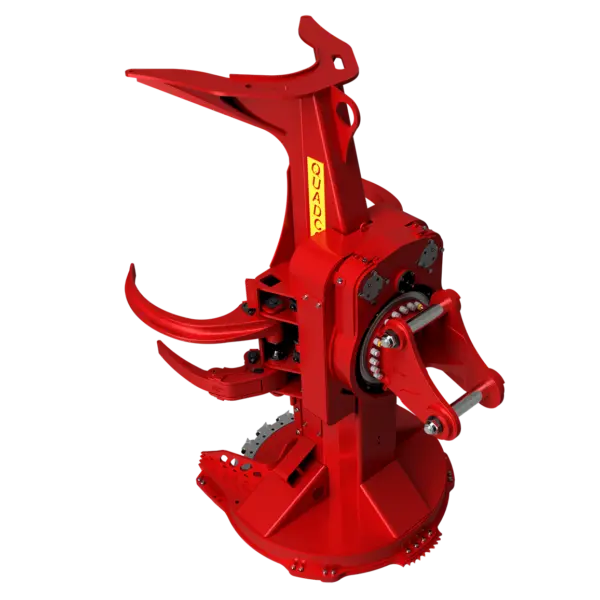

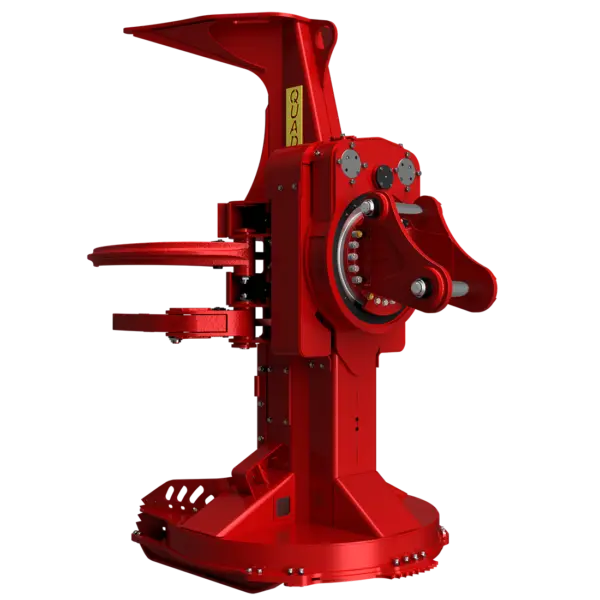

Felling Head – Quadco 22SC

Engineering & Design:
“Four Arms Up” & Stability The Quadco SC series distinguishes itself with engineering focused on massive accumulation. The 22SC incorporates the “Four Arms Up” design, allowing for the secure holding of multiple stems with exceptional safety. Its structure features an extended tower that provides superior leverage, facilitating the handling and directional control of tall, heavy trees without compromising the base machine’s stability. Additionally, it includes a heavy-duty timing bar to ensure the durability of the arm system.

Feeding & Performance:
Accumulation Speed Efficiency is the core of the 22SC. The arm system uses one cylinder per set, simplifying the hydraulics and allowing for faster opening and closing cycles for rapid accumulation (bunching). The head is equipped with a 22-tooth disc operating at a rated speed of 1,200 rpm, ensuring an aggressive and clean cut even in hardwoods.

Capacity & Versatility
This head is a workhorse for its size. It offers an impressive accumulation area of 0.51 m² on the disc, allowing for the processing of large volumes of wood in every move. With a maximum throat opening of 1,181 mm, the 22SC is ideal for working with a variety of wood types, being perfect for medium-sized logs and variable densities (“eastern logs”).

Fleet Compatibility
The Quadco 22SC is a robust implement requiring carriers with good hydraulic capacity and stability.

Base Machines: Tracked Feller Bunchers and heavy-duty excavators (25-30 ton class suggested based on weight).

Rotation:

• 40° High Torque: For standard high-impact felling applications.
• 360° High Torque: For maximum maneuverability in thinnings and complex terrain.
• Hydraulics: Requires configuration for individual cylinders on grab and accumulation arms.

Unsure about installation? Contact our team to verify pressure and flow compatibility for your base machine.
————————

FAQ (Frequently Asked Questions)

1. What does the “Four Arms Up” design mean? It is an exclusive SC model design that uses four arms in the upper position to improve holding and stability of accumulated trees, preventing them from crossing or falling.

2. What is the maximum accumulation capacity? The 22SC features a generous accumulation area of 0.51 m², allowing for the bunching of several medium-sized trees before dumping.

3. Is it suitable for very tall trees? Yes, thanks to its extended tower, the head offers superior leverage, greatly facilitating the control of tall stems.

4. What rotation options does it have? It is available with 40° or 360° rotation, both in “High Torque” versions, to adapt to different terrain and machine needs.

5. What maintenance do the arms require? The system is designed to be robust and easy to maintain, utilizing a single cylinder per arm set and a reinforced timing bar.
