Horizontal Grinder – Peterson 6700D

Engineering and Design Built for the Forest

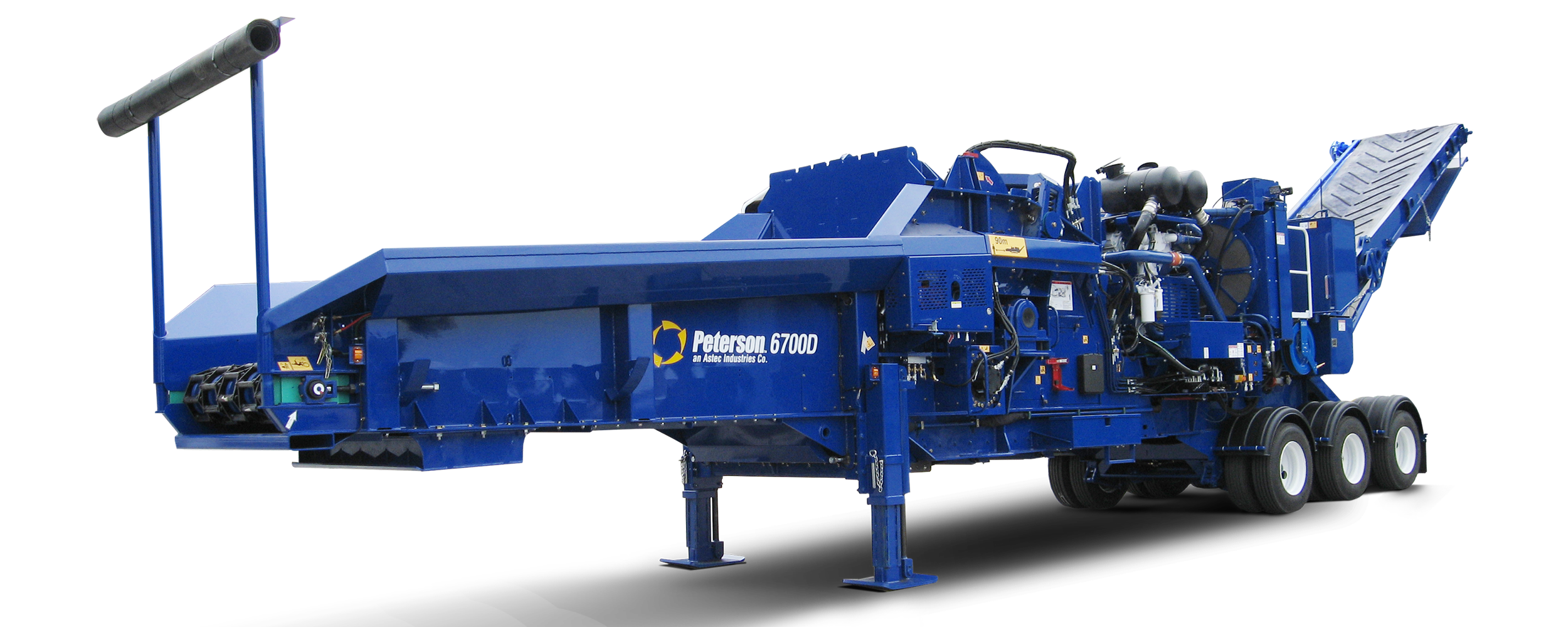

The Peterson 6700D represents the pinnacle of mechanical robustness in biomass management and industrial grinding. The chassis is built upon a solid towable tri-axle platform designed to absorb the most severe impacts of processing large volumes of heavy wood. In its transport configuration, it features a travel length of 1,562 cm and a travel width of 338 cm. It comes standard with system pressure transducers and remote monitoring capabilities that significantly simplify setup , providing total control over engine and system parameters to ensure prolonged mechanical availability and maximum profitability in the field.

Superior Feed System and Performance

Powered by a Caterpillar C32 engine block delivering 1,125 hp (839 kW) and managed via a PT Tech HPTO 15FX clutch , this grinder features a massive hopper with an 8.4 m³ capacity and a length of 533 cm. The feed system relies on a powerful 5-section feed chain that spans the full width of the hopper. Its impressive standard feed opening of 168 x 127 cm can expand up to 168 x 165 cm in its dedicated land clearing mode , allowing the 107 cm diameter upper compression roll to grab, crush, and feed bulky material without interruption or clogging.

High-Efficiency Grinding and Sizing Quality

The reduction core relies on a heavy-duty rotor measuring 176 cm in width and 118 cm in diameter, driven at a constant speed of 840 rpm. It supports configurations of 22 bits for a drum rotor or 20 bits for a pinned rotor , utilizing replaceable 3 x 6.5-inch cutting tools. Granulometric control is managed by 4 independent grate sections with a total screening area of 33,890 cm², a thickness of 38 mm, and an angular coverage of 186°. All output is efficiently evacuated by a 152 cm wide discharge conveyor that reaches stockpiling heights of 451 cm with belt speeds up to 213 m/min.

Fleet Compatibility and Mobility

Unlike tracked variants, the Peterson 6700D is designed as a highly agile wheeled towable unit for long-distance transport.

• Heavy Towing Chassis: The weight is efficiently distributed with 25,773 kg over the rear tri-axle , coupling to truck tractors via a standard fifth wheel with a hitch height of 127 cm.

• Intelligent Control: Features the Peterson Adaptive Control System and radio remote control, optimizing feeding in parallel with other machinery.

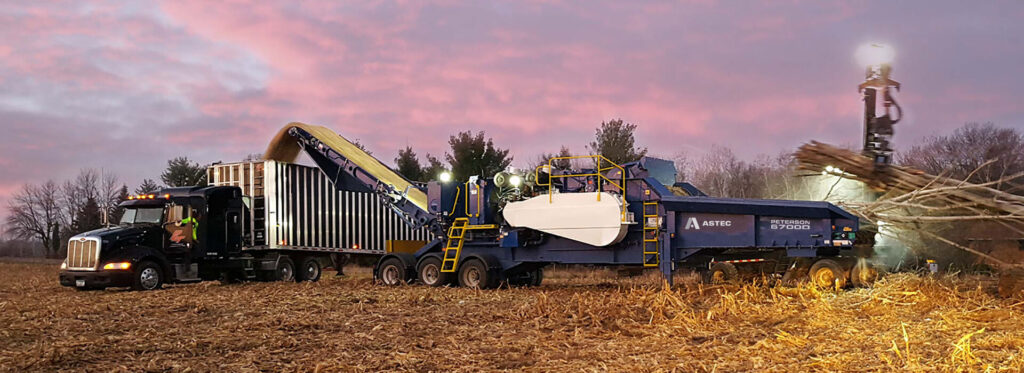

• Operational Synchronization: It is the ideal complement for continuous operation in large fixed woodyards or temporary biomass yards, fed by high-tonnage forest excavators or high-flow forwarder cranes.

FAQ (Frequently Asked Questions)



1- What is the maximum production capacity of the Peterson 6700D? It is capable of achieving massive outputs of up to 446 m³ (154 metric tonnes) per hour in green waste. When processing scrap board or sawmill waste, the volume increases up to 499 m³ (101 tonnes) per hour , with production rates calculated based on grinding 50 minutes per hour.

2- Can it process large whole stumps? Yes, thanks to its generous 168 x 127 cm feed opening and its extreme 1,125 hp output, the Peterson 6700D can process large wood stumps that historically were reserved exclusively for tub grinders.

3- What intelligent systems does it incorporate to optimize forestry output? It features the Peterson Adaptive Control System , system pressure transducers that monitor system stress in real time, and the Peterson+ Analytics digital platform for preventive monitoring of engine and maintenance parameters.

4- What engine and emissions options are available for this model? It comes standard with the Tier IV certified Caterpillar C32 engine delivering 1,125 hp (839 kW) for regulated markets. Additionally, a Tier II Caterpillar C32 version of the same power is available exclusively for export.

5- What optional equipment is available to optimize the final product?

Machine performance can be enhanced by installing a crossbelt magnet , a scrap metal collection box , a magnetic head pulley , a cold weather kit , LED work lights , and an integrated air compressor.
