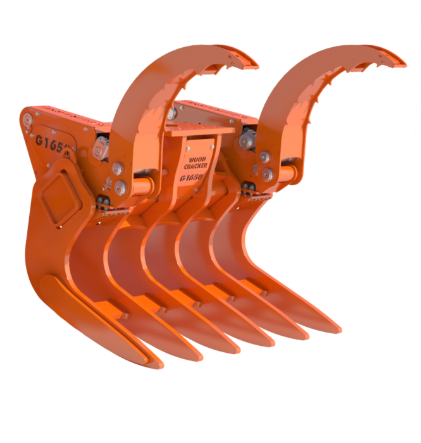

Clearing Rake – Woodcracker G1650

Engineering and Design: Extreme Durability for Professional Land Clearing.
Following the “engineering for the woods” philosophy, the Woodcracker G1650 is manufactured entirely from high-strength Hardox® steel. The entire structure undergoes a KTL (cathodic dip-priming) treatment and powder coating, ensuring superior corrosion protection in humid environments. Its ergonomic finger design enables optimal ground penetration with minimal wear.

Performance and Handling: Large Volume Processing.
Thanks to its optimized shape and the use of a toggle lever, the G1650 offers an exceptionally wide range of motion, allowing for the handling of massive volumes of material in every cycle. The gripper fingers adapt individually to the collected material, ensuring a firm hold on both fine branches and root stumps. The system is designed for hydraulic flows between 50 and 90 l/min, integrating perfectly with the power of the base machine.

Versatility and Finish: Options for Every Terrain.
The G1650 rake stands out for its modularity. It can be equipped with an optional “fine rake” (fine-mesh rake), ideal for thorough and extensive soil cleaning after timber extraction. Furthermore, for specific material handling tasks, the equipment is available with or without gripper fingers, adapting to the needs of every forestry contractor.

Fleet Compatibility

This attachment is designed to maximize the performance of heavy-duty carrier machinery.

• Base Machine: Crawler or wheeled excavators and large loaders.
• Carrier Weight: Recommended for vehicles between 20 and 25 tons.

Hydraulic Requirements:

• Recommended pump flow: 50 – 90 l/min.
• Recommended operating pressure: 200 – 250 bar.

Do you need a specific configuration? Contact us for a custom consultation to optimize your production.
——————————————————
Frequently Asked Questions (FAQ)

1. What material can the G1650 collect? It is ideal for gathering slash (harvest residues), branches, small root stumps, and biomass material across large forest areas.

2. How do the fingers handle irregular materials? The gripper fingers feature a special control system that allows them to adapt individually to the material’s shape, ensuring a secure grip at all times.

3. Does this rake require much maintenance? No, the Woodcracker G1650 is designed for low maintenance and low wear, thanks to the use of Hardox® steel and high-durability components.

4. Can I use it to clear stones and fine debris from the ground? Yes, by installing the optional fine rake attachment, you can perform deep and thorough land clearing quickly and easily.

5. Is it compatible with my 22-ton excavator? Absolutely. The G1650 is optimized specifically for carrier machines between 20 and 25 tons, maximizing their hydraulic power.
