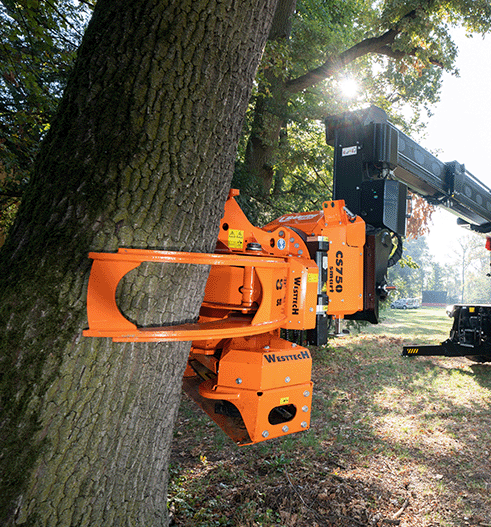

Grapple Saw – Woodcracker CS750 smart

Engineering and Design: Specialized for Working at Height.
Following the “engineering for the woods” philosophy, the CS750 smart is manufactured entirely from high-strength Hardox® steel, ensuring extreme durability with a reduced net weight. Specifically designed for telehandler operations (certified for brands such as Magni, Dieci, and Manitou), it features a KTL (cathodic dip-priming) treatment and powder coating to withstand corrosion in humid environments.

Performance and Cutting: Intelligent Saw Technology.

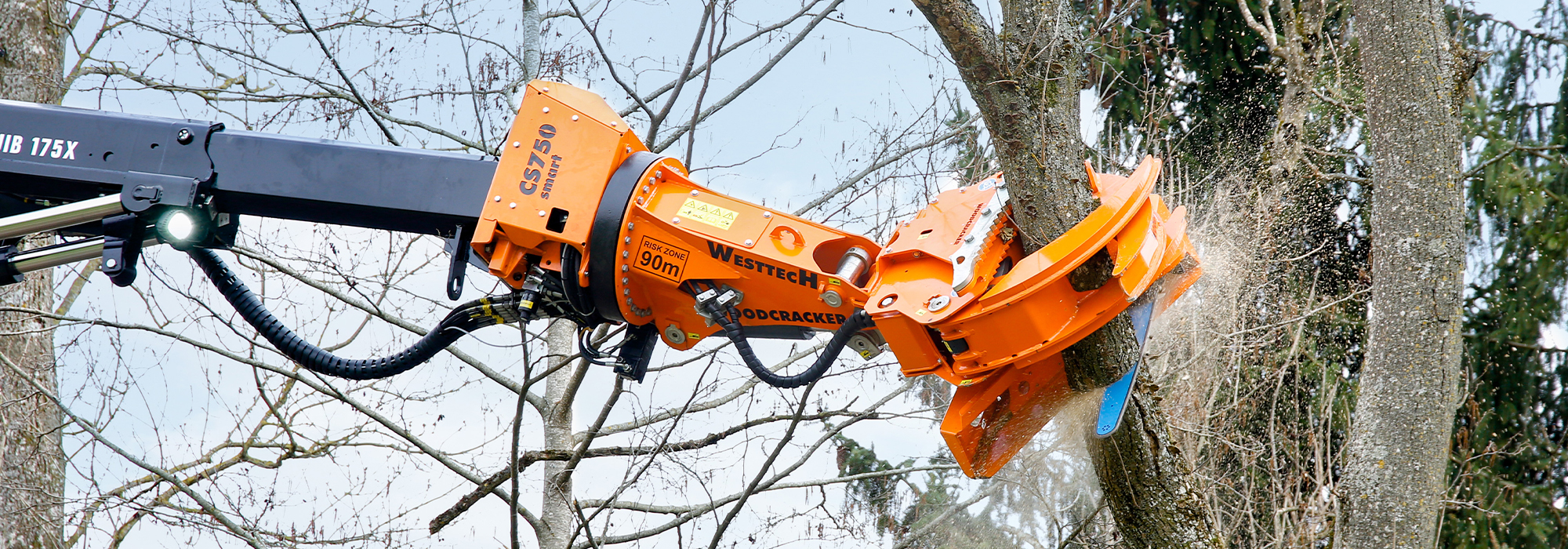

At the heart of this head is its saw unit featuring a tilting frame and active suspension. This system allows the saw box to yield under mechanical stress, preventing the saw bar from bending or breaking during the cutting process. It incorporates an automatic chain tensioner that maintains constant, perfect tension, eliminating interruptions caused by the chain jumping off, even after hours of intensive operation.

Safety and Visibility: High-Efficiency Grease Lubrication.
To optimize work at height, the CS750 smart utilizes grease lubrication for the chain instead of oil. This eliminates the oil mist that typically clouds the telehandler’s windshield, ensuring perfect visibility for the operator. The grease adheres to the chain longer, resulting in a more economical, durable, and environmentally friendly system.

Fleet Compatibility

This head is designed to maximize the versatility of specialized carrier machinery.

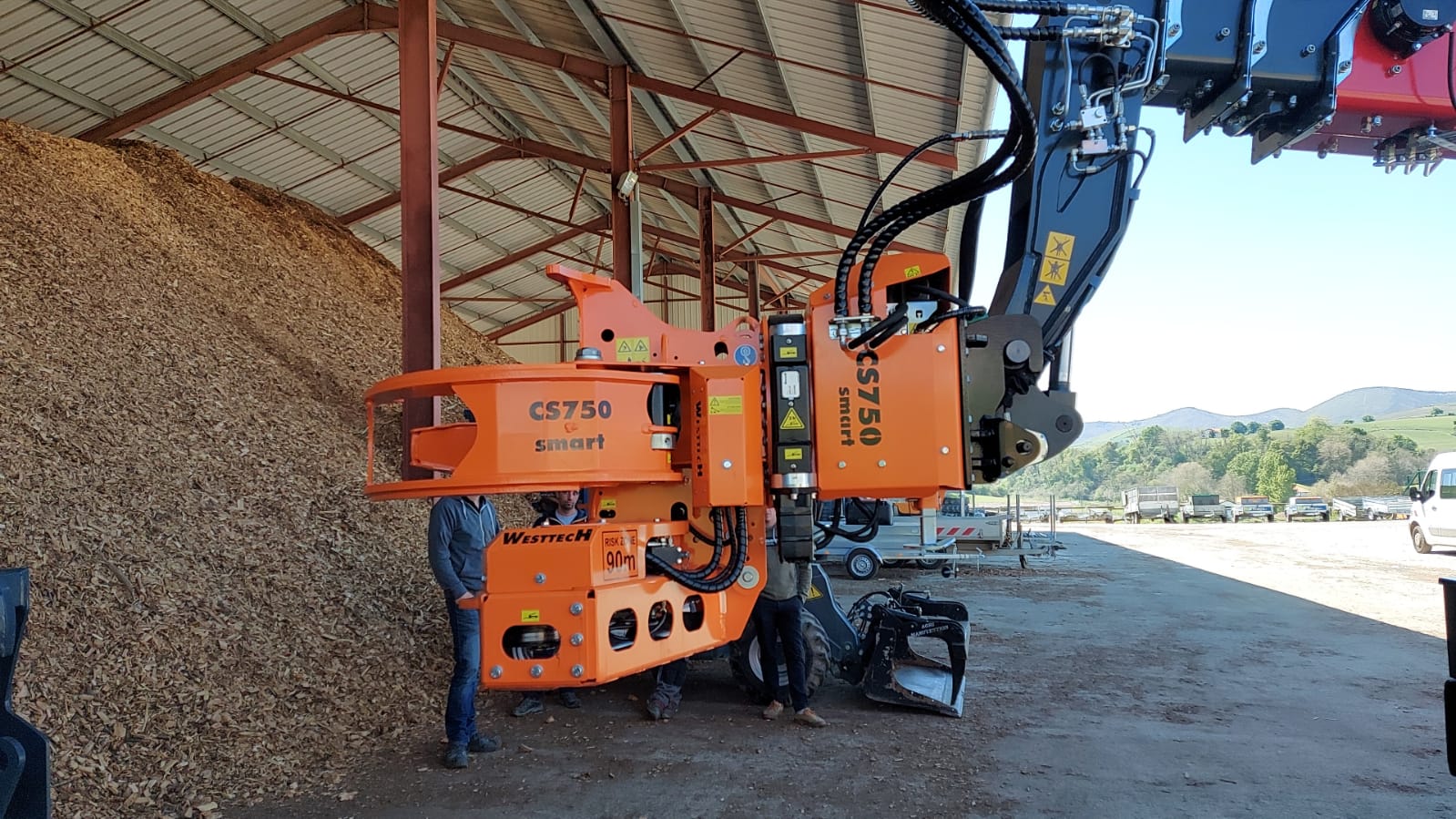

• Base Machines: Roto telehandlers (specifically certified for Magni, Dieci, and Manitou).
• Carrier Weight: Recommended for vehicles between 15 and 25 tons.

Hydraulic Requirements

Requires only one double-acting hydraulic valve for all functions.

• Recommended Flow: 65 – 110 l/min.
• Operating Pressure: 230 – 280 bar.


Do you need a specific configuration? Contact us for a custom consultation to optimize your production.
——————————————
FAQ (Frequently Asked Questions)

1. What are the advantages of the “Smart” system on telehandlers? It allows for sophisticated control with minimal hydraulic requirements. It only needs one double-acting line to operate the head, which greatly simplifies installation on roto telehandlers.

2. Is saw bar bending common in this model? No. Thanks to its tilting frame with active suspension, the saw unit absorbs the movements of the tree or the machine, protecting the bar against accidental deformation or breakage.

3. Why is grease lubrication used instead of oil? Since this equipment often works at great heights, oil would generate a mist that soils the cabin windshield. Grease stays on the chain, is more cost-effective, and guarantees a clear, safe view for the operator.

4. What maintenance does the chain tensioner require? The tensioning is fully automatic. This ensures the chain always operates at optimal tension, reducing wear and preventing it from jumping off during work, without the need for constant manual adjustments.

5. What are the ideal applications for the CS750 smart? It is perfect for safety tree felling in residential areas, power line maintenance, and the removal of hazardous trees near roads where precision and a wide operating radius are required.
