Engineering and design: strength, protection and profitability
The LKT 130 is built to withstand the harshest industrial conditions in the wilderness, combining maximum structural durability with excellent handling. Its articulated chassis with axial bearings and hydraulic locking mechanism, along with its 43° turning angle, offers the perfect blend of structural strength and maneuverability. The safety cab is certified to ROPS, FOPS, and OPS standards, ensuring an ergonomic, comfortable, and impact-protected environment. With its “engineered for the wilderness” philosophy, it stands out for its high operational profitability thanks to durable components and optimized maintenance.
Power and performance: transmission, traction and pulling power
Equipped with a powerful 4.5-liter, 4-cylinder CUMMINS B4.5 EU Stage V diesel engine, it generates 173 hp (129 kW) at 2,500 rpm and an impressive maximum torque of 780 Nm at 1,500 rpm. Its hydrodynamic powershift transmission with on-the-go shifting offers 12 forward and 8 reverse gears with a hydrodynamic torque converter lock-up, maximizing engine performance in both working and travel speeds. It features rigid planetary axles with electro-hydraulic front and rear differential locks, ensuring maximum traction on slippery or muddy terrain.
Winch capacity and timber handling

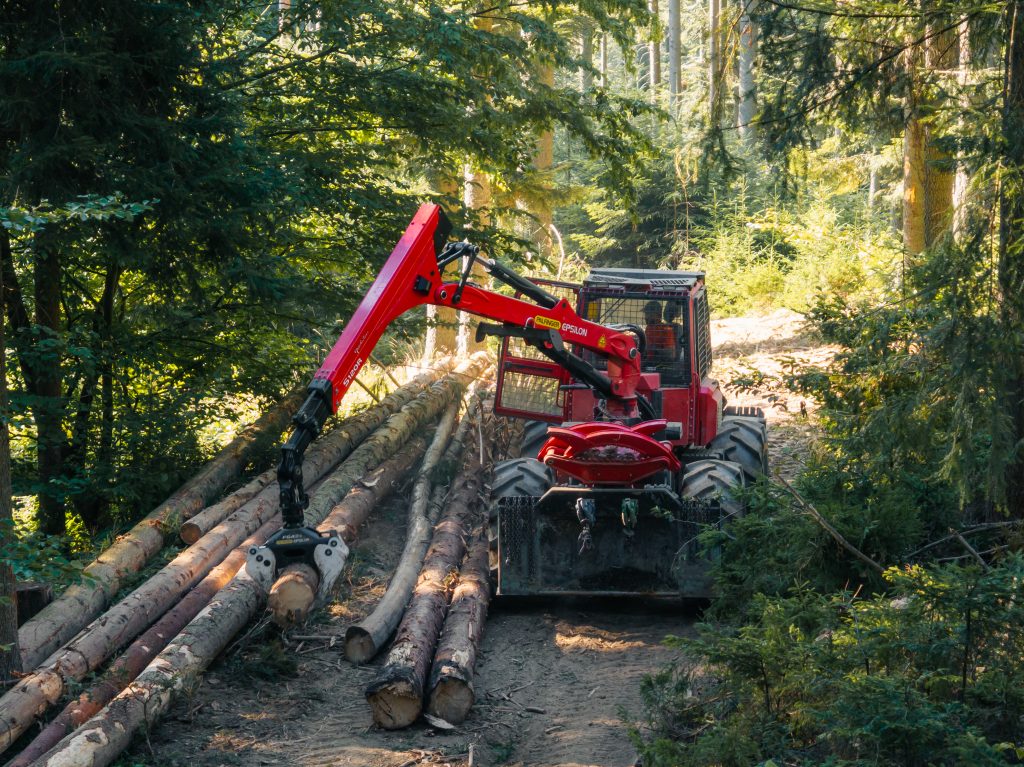

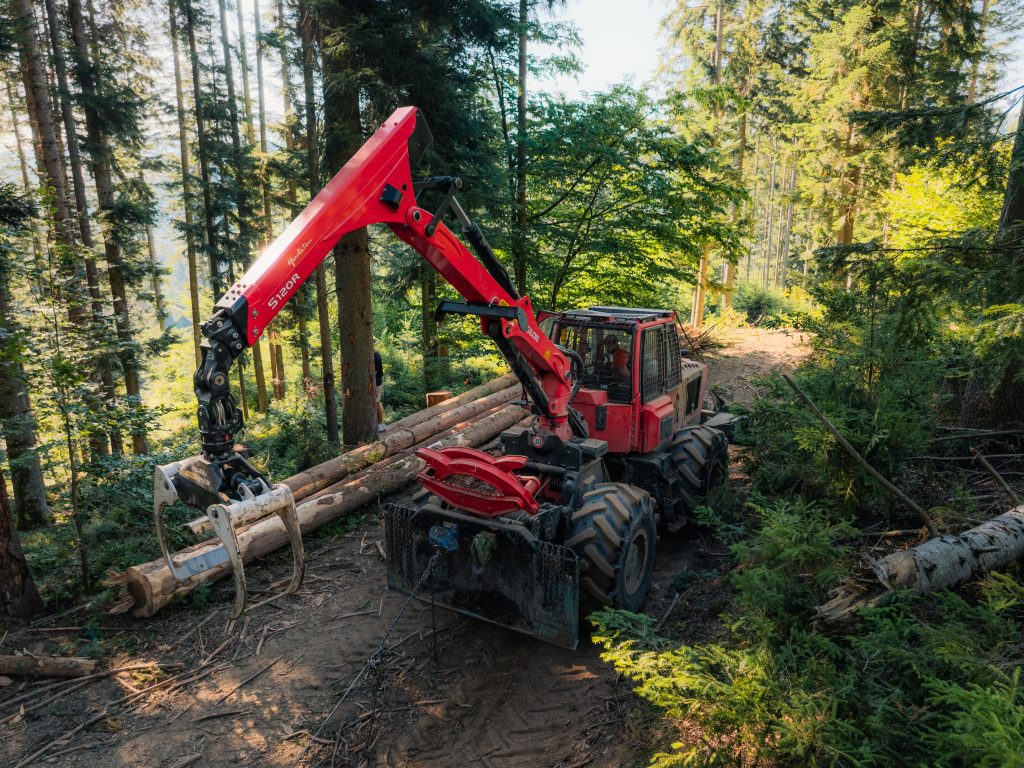

In its standard version, it is equipped with a powerful 2×80 kN electro-hydraulically driven double-drum winch. For the most demanding forestry operations, it offers the widest range of strength options on the market, with versions of 2×100 kN, 2×120 kN, 2×135 kN, and up to 2×165 kN. It features a 2,239 mm wide front blade and a hydraulically tilting rear shield with a high pedestal and guide rollers. Furthermore, it is compatible with the mounting of heavy-duty cranes from the Palfinger Epsilon series (up to the X130) and a rear clamshell grab.
Fleet compatibility and integration
Compatible crane configuration: Wide selection including Epsilon Palfinger M90 R80, S110 R80, S120 R80 and the powerful X130 R80 (all with a reach of 8.0 m), compatible with Palfinger FG 37, FG 43S and FG 31R clamps.
Hydraulic system: Danfoss hydraulic work pump with load sensing, providing a flow rate of 120 l/min at 1,600 rpm and a maximum pressure of 300 bar.
Customized adaptation: We offer comprehensive, tailor-made solutions based on terrain type and towing volume. Consult with our technical team to configure the machine to suit your existing fleet.
—————-
Frequently Asked Questions (FAQ)
1- What type of forestry work is the LKT 130 skidder designed for?
The LKT 130 is designed for large volume final felling, hauling of heavy timber of large dimensions and clearing on plots with complex orography and demanding slopes.
2- What is the maximum winch capacity that can be equipped?
In addition to the standard 2×80 kN equipment, the LKT 130 allows for the optional installation of electro-hydraulic double drum winches of up to 2×165 kN, offering the highest pulling force available in its class.
3- What crane and rear equipment options does it offer?
It can be fitted with high-performance Epsilon Palfinger cranes such as the M90, S110, S120 and X130 with a reach of up to 8 meters, as well as rear clamshell clamps and hitches for trailers up to 14 tons.
4- Is it possible to operate the machine by radio control?
Yes, it optionally has a radio frequency remote control system that allows you to regulate the start-stop functions, the movement of the machine, the acceleration, the winch and the rear shield outside the cab.
5- What level of visibility and safety does it offer the operator?
The cab complies with ROPS, FOPS, and OPS regulations. It features a 3.5″ color screen, front and rear cameras with monitor, side LED lights, HVAC climate control, and optional ISO21876 KASIGLAS shatterproof glass.
