NEUSON 154 HVT

TRACKED HARVESTER

Large description

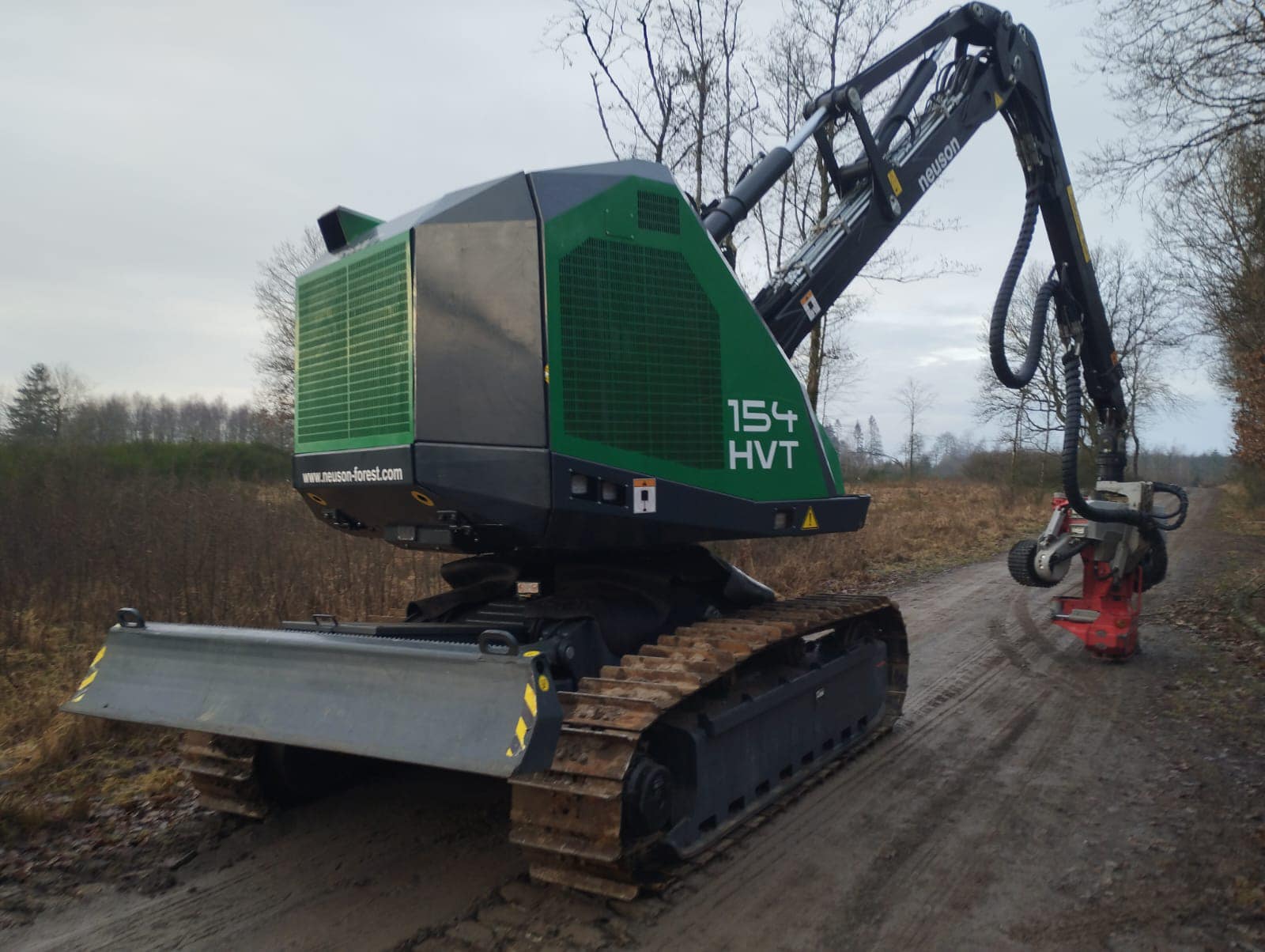

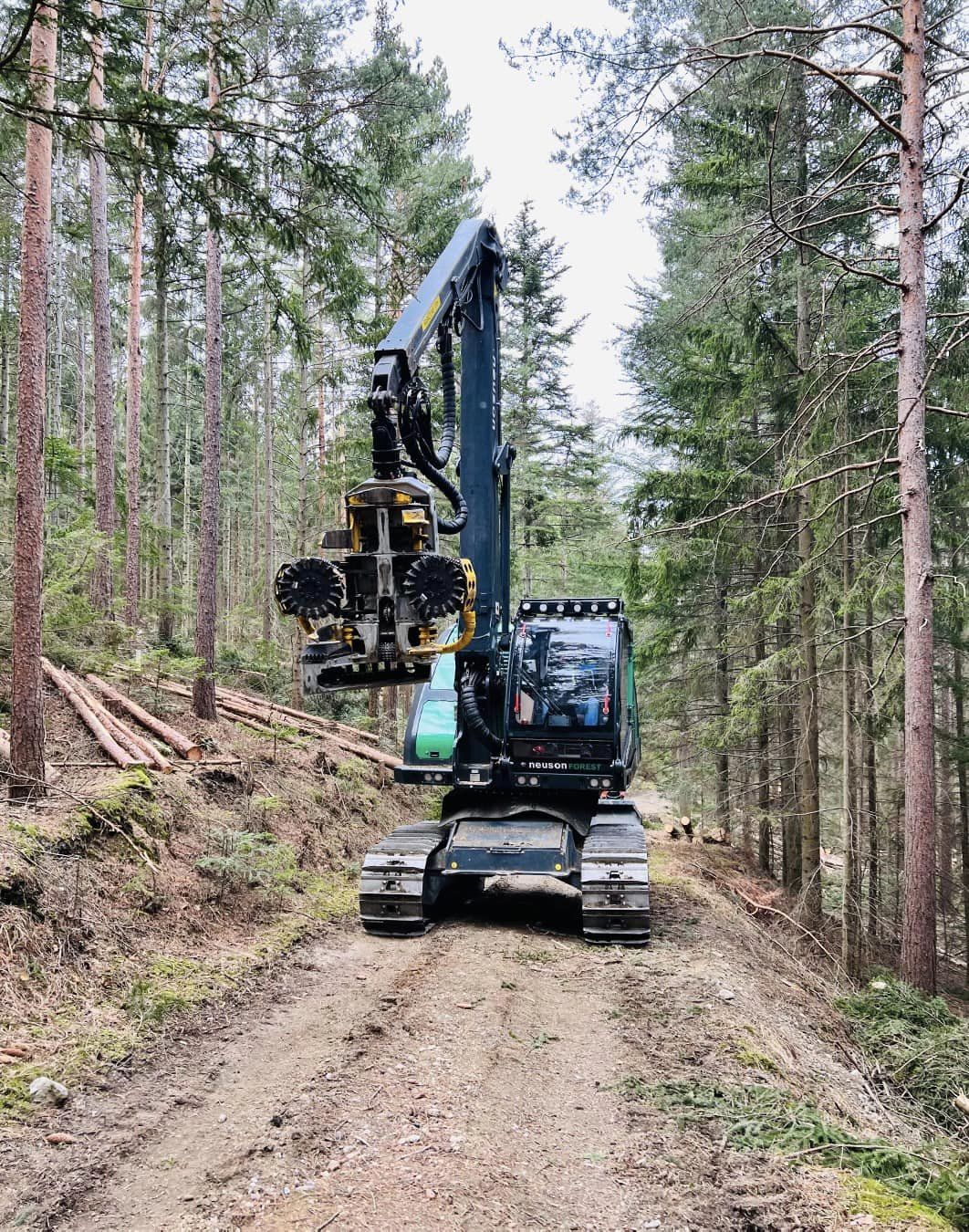

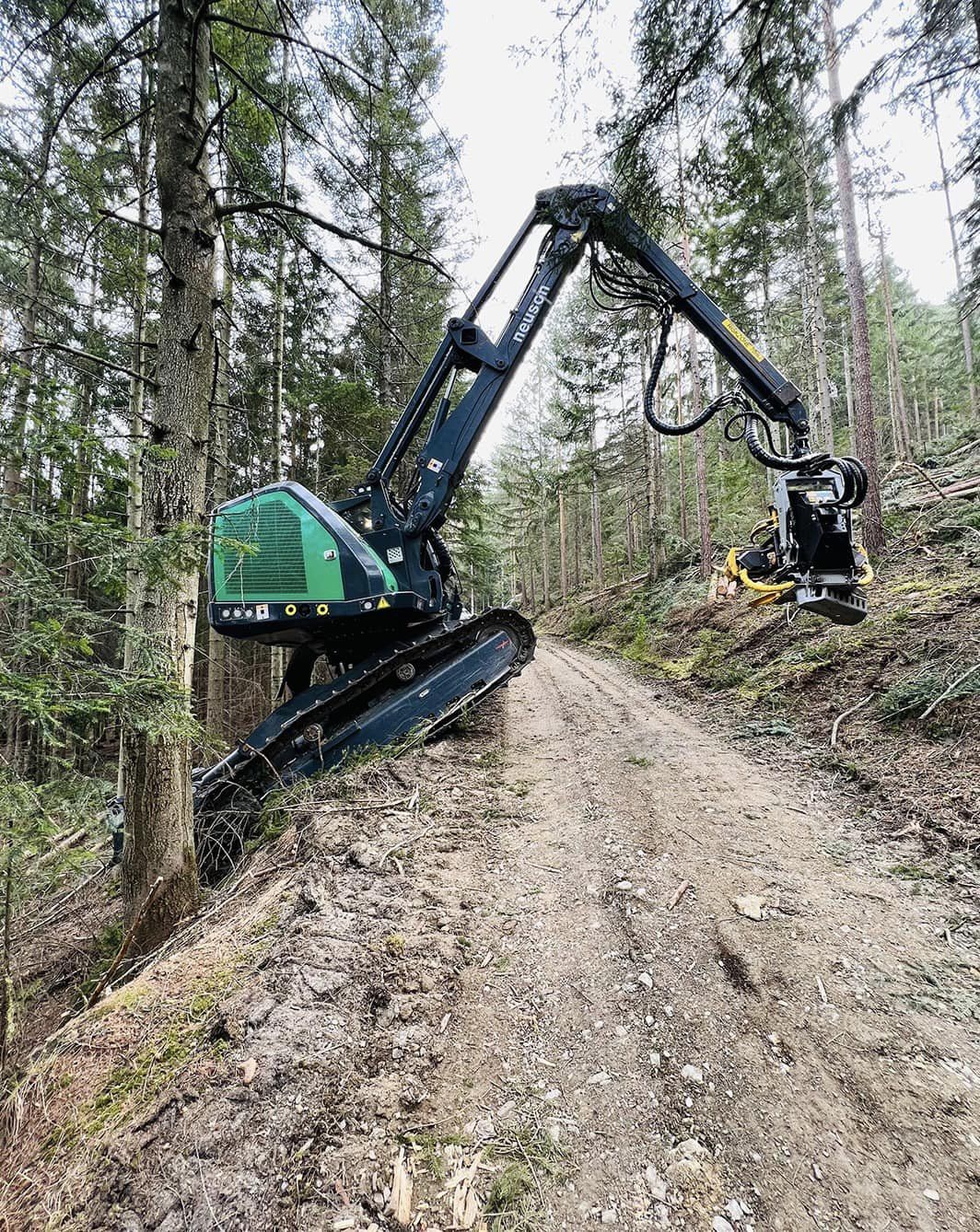

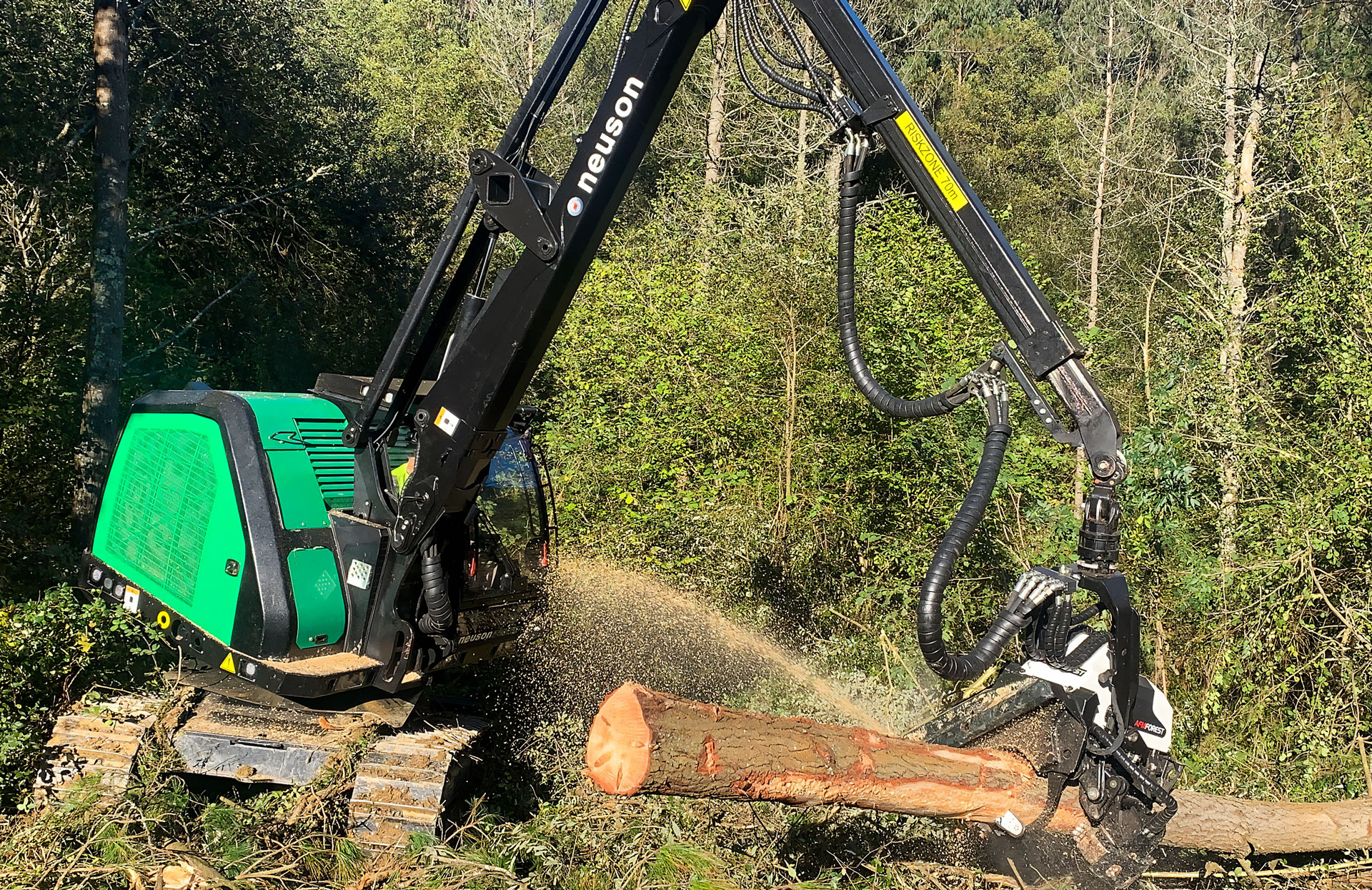

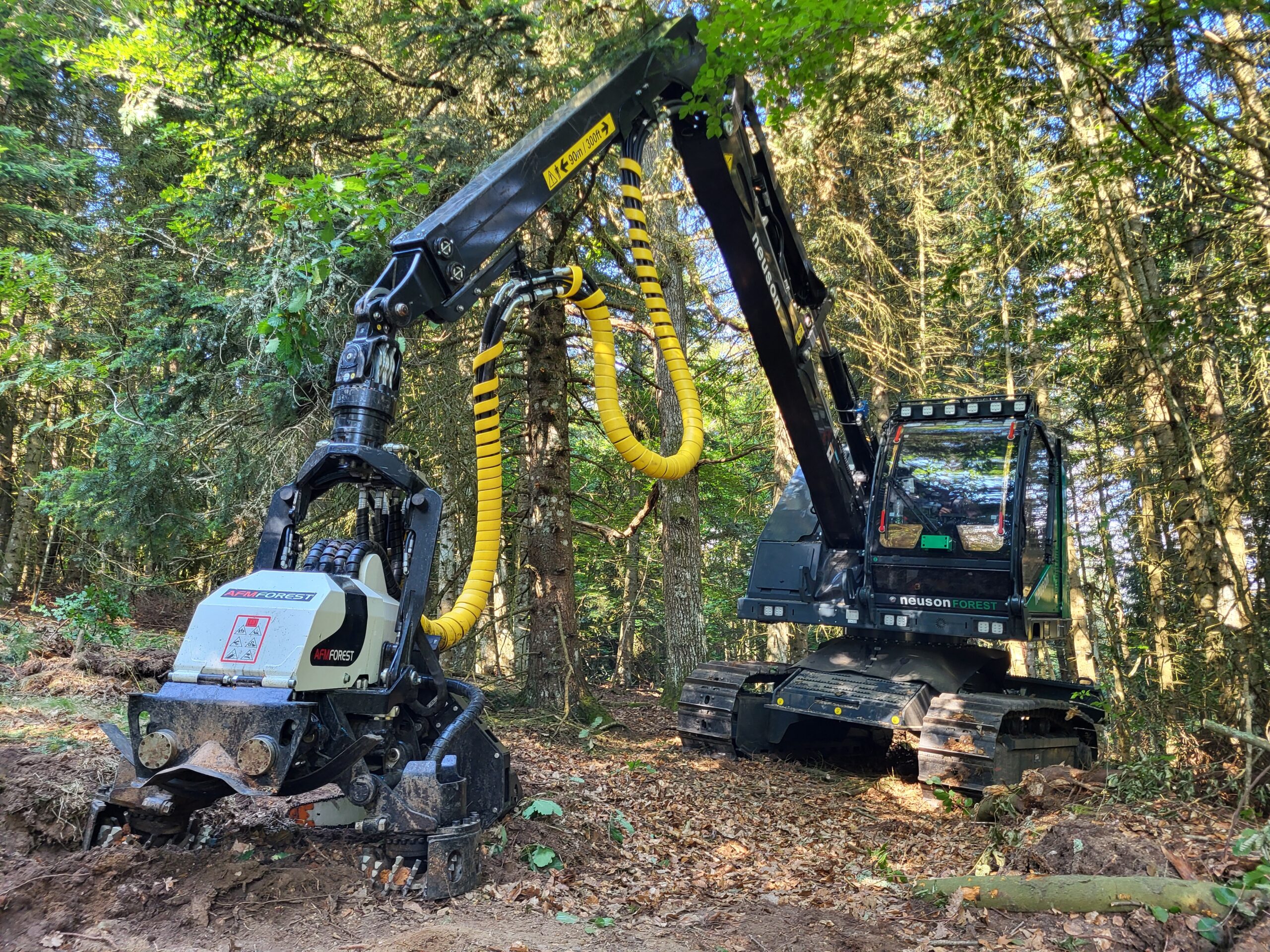

This is the new NEUSON 154 tracked harvester.
Compact, it sets a new benchmark in wood processing, with a 175 hp engine, a pump with a total capacity of 655 l/min, a reach of 11 m, and a cutting capacity of over 50 cm. Compared to the previous model, hydraulic power has doubled, lifting capacity has increased by more than 20% with a longer reach, and engine power (hp) has also grown by over 20%. All these improvements make it possible to operate larger harvester heads.
Stability has been improved thanks to a longer undercarriage. The machine width (250 cm) and weight (15.9 tons) remain low, and the transport height has been reduced to 320 cm for easier transport.

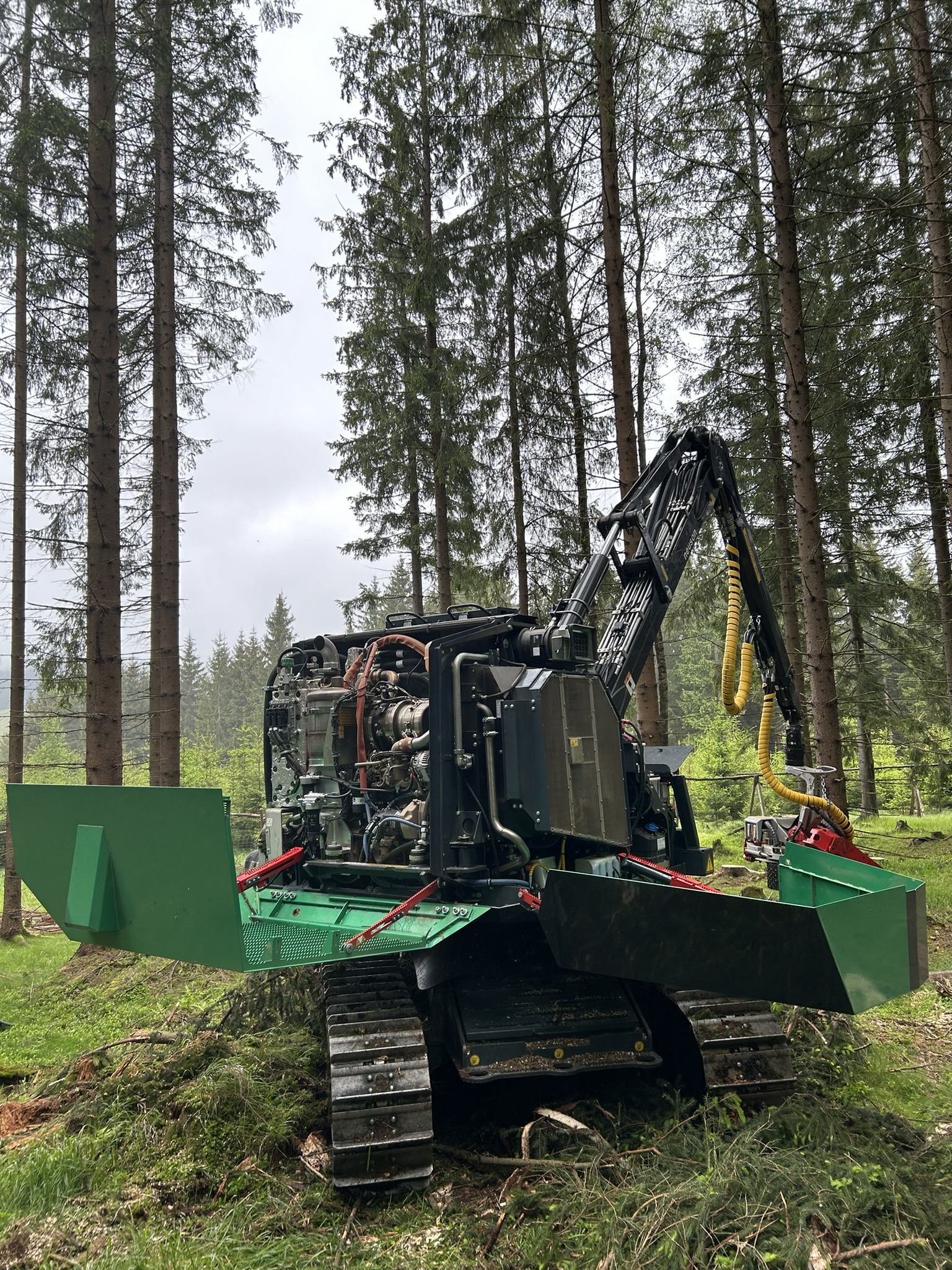

Access to maintenance areas has also been improved: the machine includes two service platforms.
Technical Specifications:
  • Weight without head: 15.84 tons
  • Engine: John Deere 4045CI550 Tier V, 4-cylinder Turbo Diesel, 4.5 liters, 175 hp (129 kW)
  • Automatic reversible fan
  • Front blade
  • Pump: max. flow rate 358 l/min, max. pressure 300 bar
  • Maximum working slope: 30° (60%)
  • Single grouser tracks 500 mm, total machine width: 2.50 m
  • Crane: 1395H, reach 10 m, lifting torque 109 kN
