QUADCO 24C

WEIGHTS AND DIMENSIONS
40° rotation (high torque) 3,044 kg
Rotation 360°HT 3,255 kg
Height 2,972 mm
Width 1,778 mm
Depth 1,854 mm
Maximum front opening 1,321 mm
Maximum saw opening 1,092 mm
Accumulation area 0.54 m2

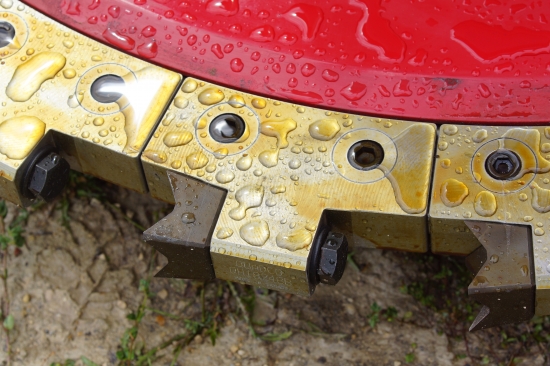

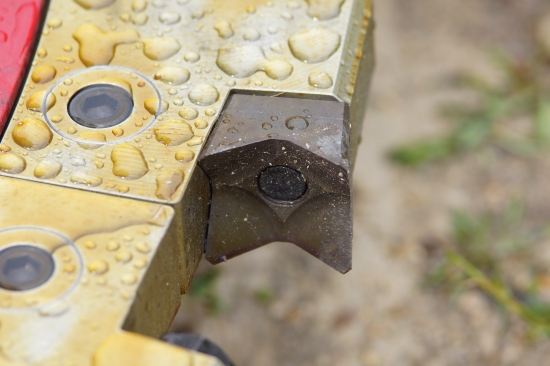

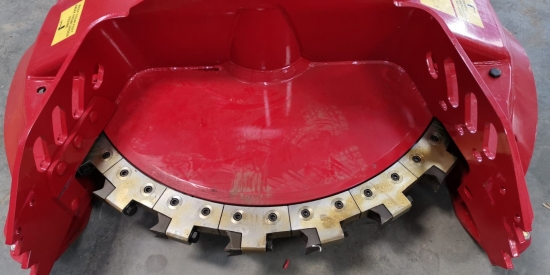

DISC
Cutting capacity 610 mm
Tip to tip diameter 1,549 mm
Nominal saw speed 1,075 rpm
Number of teeth 18
Saw kerf 59 mm
Weight (holders and teeth | varies according to disc) 434 kg
Style (single piece or multi-segment) Both
Cylinders (diameter) Main arms
Accumulator arms Main arms
